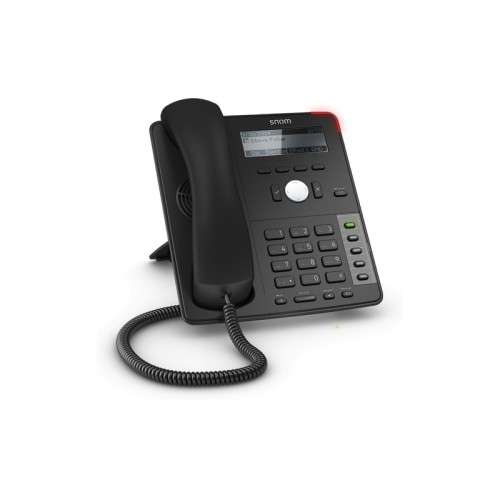

Snom D715 4 Line VOIP Desktop phone

SNOM D715 Desk Telephone

A professional desk phone with high-speed connectivity and high quality audio

The D715 is designed to provide the professional worker with the best in high-speed connectivity combined with high-quality audio. The integral Gigabit switch provides future proofing and, combined with the USB port, enables high levels of flexibility and functionality. The USB port can connect a USB headset, a D7 expansion module or WiFi.

Featuring a four-line black and white graphical display, the D715 also has four context sensitive keys, an intuitive, user-friendly menu and five programmable keys with built-in LEDs for visual call indication. It supports four SIP identities. Dual stack IPv4 / IPv6 ensures future proofing. The D715’s combination of features and affordability makes it an ideal endpoint for service providers and larger scale installations.

 Quick Summary

• Elegant design
• Four-line backlit B/W display
• Dual Stack IPv4 / IPv6
• WLAN ready
• Gigabit switch
• Wall mountable
• 5 configurable LED function keys
• 12 identities (lines)
• Wideband HD audio
• Hands-free operation/speakerphone
• Power over Ethernet (PoE)
• Optional 5V wall Power Supply
• XML Minibrowser
• USB Port

 Technical Specifications

General Information

• Weight: Approx. 560g, without footstand approx. 440g
• Dimensions: approx. without footstand 205x185x40 mm. with footstand 205x185x200/220 mm
• Dual-angle footstand: 46° and 28°
• Wall mountable
• Certification FCC Class B, CE marking
• Safety: IEC 60950-1:207, CB
• Power: PoE or 5V DC (SELV) power supply listed in the user guide
• Ethernet: 2 x IEEE 802.3/1 Gigabit switch
• 1 x LAN, 1 x PC: RJ 45
• USB Port 1 x type A, USB 2.0 Hi/Full/Low Seed-compatible host interface
• Handset: 4P4C connector
• Hearing aid compatible (HAC) handset
• Headset: (wired) 4P4C connector; wireless via Snom EHS Advanced
• Color: Anthracite gray

Phone Functions

• 12 identities (lines)
• Directory with 1000 contact entries
• Import/export of directory
• Speed dialing
• URL dialing
• Local dial plan
• Automatic redial on busy
• Call completion (busy/unreachable)
• Caller identification
• Call waiting
• Call blocking (deny list)
• Blocking of anonymous calls
• Auto answer
• Lists of missed, received and dialed calls
• Hold
• Music on hold
• Handling of up to 12 simultaneous calls
• Blind and attended transfer
• Call forwarding
• 3-way conference on the phone
• Extension monitoring, call pickup
• Call park, call unpark
• Multicast paging
• DND mode (do not disturb)
• Mute microphone
• Keyboard lock
• Client Matter Code (CMC)
• Unified Communications ready

Codecs, Audio

• Wideband audio
• G.711 A-law, ?-law
• G.722 (wideband)
• G.726, G.729AB, GSM 6.10 (FR)
• Comfort Noise Generator (CNG)
• Voice Activity Detection (VAD)
