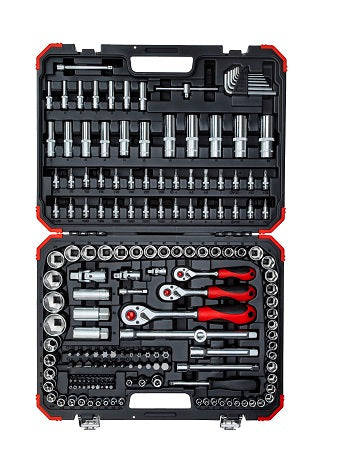

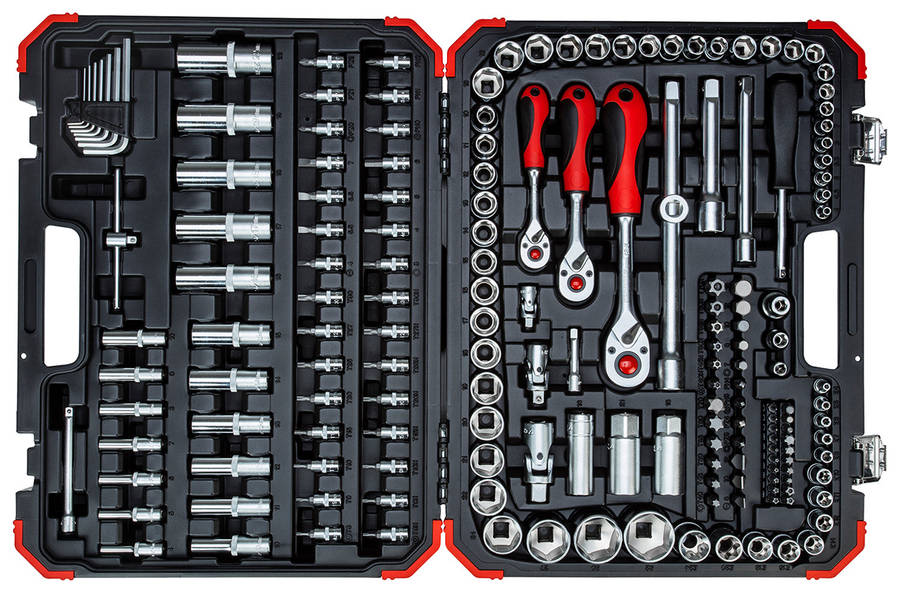

SOCKET SET GEDORE RED 1/4 INCH PLUS 3/8 INCH PLUS 1/2 INCH172 PIECES
Coupler in acc. with DIN 3120, ISO 1174, with ball locking device
Square drive as per DIN 3120, ISO 1174, with ball retentiongroove
2C reversible ratchet: lever for reversing clockwise or anticlockwisedirection, push-button release, fine-toothed, oval head, dual-materialhandle for ease in gripping, for sockets
Square plug-in handle 1/4 inch: 1-component handle with femalesquare
Socket hex, metric, short, as per DIN 3124, ISO 2725
Socket hex, metric, long, as per DIN 3124, ISO 2725
Socket, recessed TX
Spark plug socket 3/8 inch with pressed-in holding rubber and extradrive hex Size 21
Spark plug socket 1/2 inch with pressed-in holding rubber
Spark plug socket 1/2 inch with pressed-in holding rubber and extradrive hex Size 24
Screwdriver bit socket 1/4 inch, for hex screws: with pressed-in,phosphated pin
Screwdriver bit socket 1/4 inch, slotted: with pressed-in, phosphatedpin
Screwdriver bit socket 1/4 inch PH: with pressed-in, phosphatedpin
Screwdriver bit socket 1/4 inch PZ: with pressed-in, phosphatedpin
Screwdriver bit socket 1/4 inch TX: with pressed-in, phosphatedpin
Screwdriver bit socket 1/4 inch TX: with drill hole, with pressed-in,phosphated pin
Sliding T-bar with slider 1/4 inch: as per DIN 3122, ISO 3315
Socket extension 1/4 inch + 3/8 inch + 1/2 inch
Universal joint 1/4 inch + 3/8 inch + 1/2 inch: screwed-on joint, asper DIN 3123 - C 12.5
Convertor/slider 3/8 inch x 1/2 inch: for driving sockets andscrewdriver bit sockets
Bit adaptor 1/4 inch: with female square and in-hex, for all bits andtools with 1/4 inch external hex
Bit adaptor 3/8 inch: with female square and in-hex, for all bits andtools with 5/16 inch external hex
Bit adaptor 1/2 inch: with female square and in-hex, for all bits andtools with 5/16 inch external hex
Bit 1/4 inch, TX: TX BO, TX security, BO, keyway, XZN for holder asper DIN 1173, ISO 6.3
Bit 5/16 inch: in-hex, slotted, PH, TX, TX BO for holder as per DINISO 1173 - D 8
Hexagon socket key set: as per DIN ISO 2936
For hand operated screw work
Chrome vanadium steel, matt satin chrome plated
Plastic case in GEDORE red Design
Clamp secured tools
Metal hinges or fastener
Contents
1/4 inch 2C lever reversible ratchet, fine-toothed, 72 teeth length150 mm
1/4 inch square plug-in handle 165 mm
1/4 inch socket hexagon 4, 4.5, 5, 5.5, 6, 7, 8, 9, 10, 11, 12, 13,14 length 25 mm
1/4 inch socket hexagon 4, 5, 6, 7, 8, 9, 10 length 50 mm
1/4 inch socket TX E4, E5, E6, E7, E8 length 25 mm
1/4 inch screwdriver bit socket in-hex 4 4 5 6 length 37 mm
1/4 inch screwdriver bit socket slotted 4, 5.5, 6.5, 7 length 37mm
1/4 inch screwdriver bit socket cross-head PH 0, 1, 2 length 37mm
1/4 inch screwdriver bit socket cross-head PZ 0, 1, 2 length 37mm
1/4 inch screwdriver bit socket TX T8, T9, T10, T15, T20, T25, T27,T30 length 37 mm
1/4 inch screwdriver bit socket TX with drill hole T8, T9, T10, T15,T20, T25, T27, T30 length 37 mm
1/4 inch socket extension 50 length 100 mm
1/4 inch sliding T-bar with slider length 115 mm
1/4 inch universal joint | 32 mm
Bit adapter 1/4 inch sq. x 1/4 inch hex length 25 mm
1/4 inch bits TX T5, T6, T7 length 25 mm
1/4 inch bits TX with drill hole T7 length 25 mm
1/4 inch bits TX plus security T10, T15, T20, T25, T27, T30, T40, T45 length 25 mm
1/4 inch bits multi-point XZN M5, M6, M8 length 25 mm
1/4 inch bits keyway M5, M6, M7, M8, M9 length 25 mm
5/16 inch bits in-hex 7, 8, 10, 12, 14 - length 30 mm
5/16 inch bits slotted 8, 10, 12 length 30 mm
5/16 inch bits cross-head PH 3, 4 length 30 mm
5/16 inch bits cross-head PZ 3, 4 length 30 mm
5/16 inch bits TX T40, T45, T50, T55, T60, T70 length 30 mm
5/16 inch bits TX with drill hole T40, T45, T50, T55, T60, T70 length 30 mm
3/8 inch 2C lever reversible ratchet, fine-toothed, 72 teeth length180 mm
3/8 inch socket hexagon 10, 11, 12, 13, 14, 15, 16, 17, 18, 19
3/8 inch socket hexagon 10, 11, 12, 13, 14, 15 length 63 mm
3/8 inch socket TX E10, E11, E12, E14, E16, E18
3/8 inch spark plug socket 18 mm length 65 mm
3/8 inch socket extension 150 mm
3/8 inch universal joint 49 mm
Bit adapter 3/8 inch square x 5/16 inch hex length 30 mm
1/2 inch 2C lever reversible ratchet, fine-toothed, 72 teeth length250 mm
1/2 inch socket hexagon 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20,21, 22, 24, 27, 30, 32
1/2 inch socket hexagon 16, 17, 18, 19, 22 length 77 mm
1/2 inch socket 1/2 TX E20, E24
1/2 inch spark plug socket 16, 21 mm | 65 mm
1/2 inch socket extension 125, 250 mm
1/2 inch universal joint 66 mm
Socket extension piece/slider 3/8 inch x 1/2 inch length 44 mm
Bit adapter 1/2 inch square x 5/16 inch hex length 38 mm
Hexagon socket key 1.5, 2, 2.5, 3, 4, 5, 6 mm
CODE: GEDR45603172
BARCODE: 4060833000581
HEIGHT: 34.0cm
LENGTH: 45.0cm
WIDTH: 8.5cm
MASS: 9.1kg
