Socomec Diris A-20 multifunction measuring unit

DIRIS A-20

MODULAR POWER METERING & MONITORING DEVICE - PANEL MOUNTED SINGLE-POINT METER WITH HOT SWAPABLE MODULES

Strong Points

Easy to use

Compliant with IEC 61557-12

Detects wiring errors

Customisable

Function

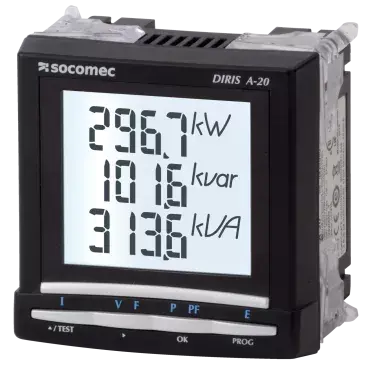

The DIRIS A-20 is a panel-mounted multifunction power monitoring device for low voltage electrical installations.

The device is easy to use thanks to its large backlit LCD display and 4 keys used to view readings and configuration.

Compatible with 1A or 5A secondary CTs.

Over/under limit alarms on all parameters can be confgured to detect drifs in measurements.

Additional communication and input/output modules can extend the basic functional scope of the DIRIS A-20. Equipped with additional modules, the device can provide the user with flexibility and expandability throughout its service

 Currents

- instantaneous: I1, I2, I3, In

- maximum average: I1, I2, I3, In

Voltages & frequency

- instantaneous: V1, V2, V3, U12, U23, U31, F

Powers

- instantaneous: 3P, P, 3Q, Q, 3S, S

- maximum average: P, Q, S

Power factors

- instantaneous: 3PF, PF

Metering

Active energy: +/- kWh

Reactive energy: +/- kvarh

Hours:

Harmonic analysis

Total harmonic distortion (rank 51)

- Currents: thd I1, thd I2, thd I3

- Phase-to-neutral voltage: thd V1, thd V2, thd V3

Phase-to-phase voltage: thd U12, thd U23, thd

U31

Events

Alarms on all electrical parameters

Communications (1)

RS485 with MODBUS protocol

Output

Equipment control

Alarm report

Pulse report

Input

Information report from a dry external cont
