PRODUCT MANUAL
The Sofirn HS22 2500 Lumen 260m Throw Rechargeable LED Headlamp is a powerful T-shaped headlamp designed for outdoor adventures, camping, night work, and emergency use, ideal for hiking, running, or maintenance. For example, its 2500-lumen Turbo mode illuminates up to 260 meters, while the floodlight provides wide coverage for close tasks. With stepless color temperature adjustment from 2700K to 6500K, dual-button control, and a quick-release bracket, it's perfect for professionals and enthusiasts. Backed by a 1-year warranty, the Sofirn HS22 for Outdoor Use is a reliable, versatile lighting solution.

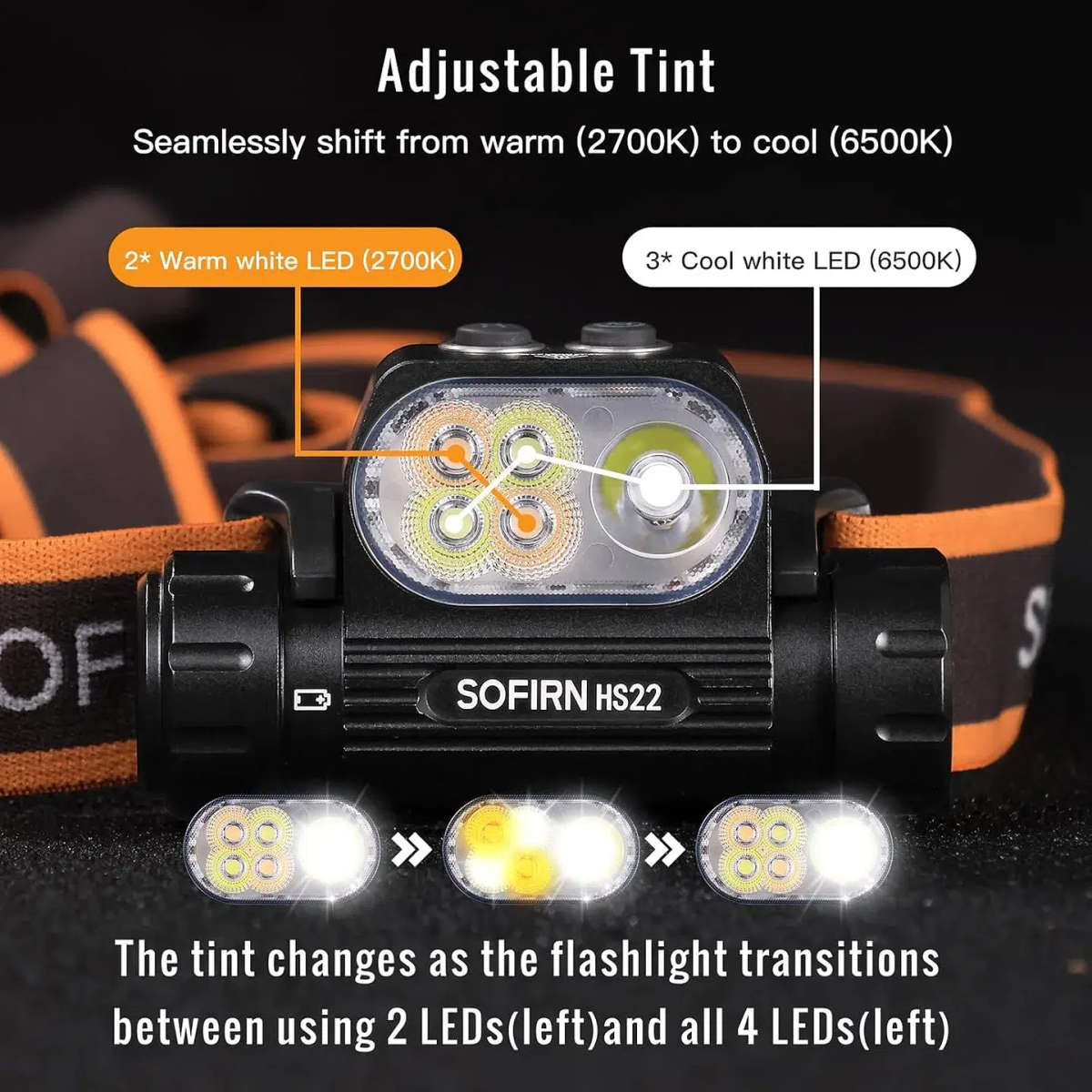

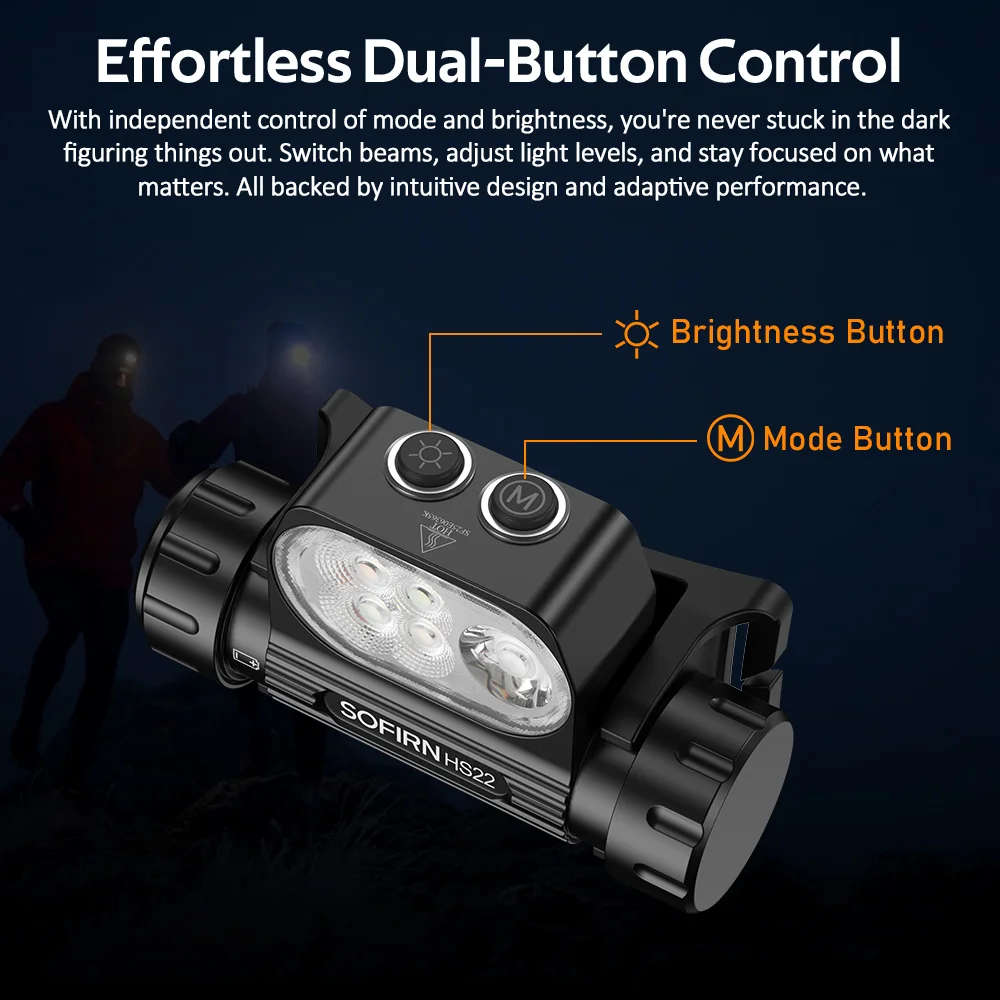

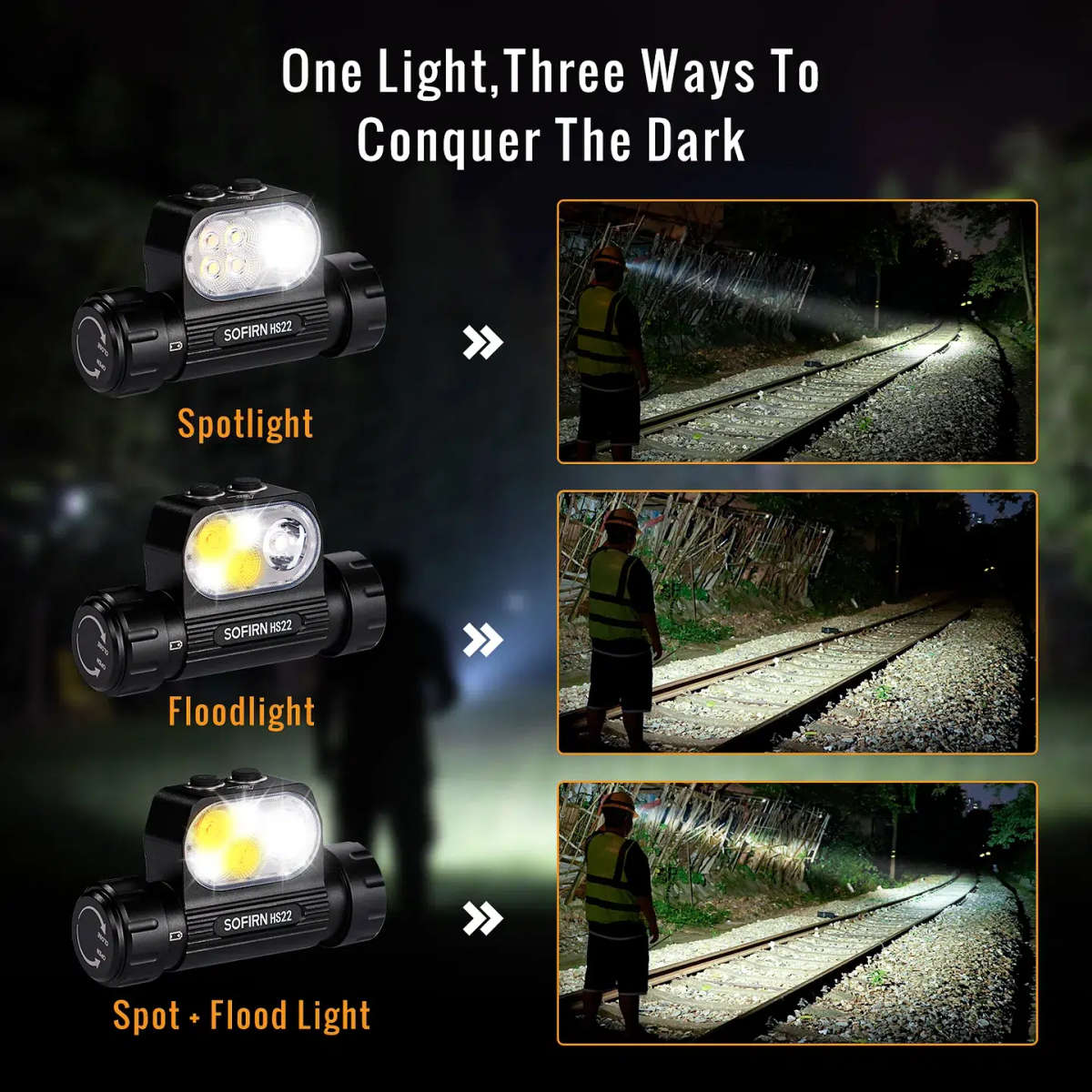

Dual-Beam and Color Temperature Control The Sofirn HS22 features a SFT-25R thrower LED (6000-6500K) for up to 1500 lumens and 260m throw, paired with TN-3535 floody LEDs (6000-6500K CRI70 and 2700K CRI90) for up to 2000 lumens floodlight. It offers three beam modes (spot, flood, combo) and stepless color temperature adjustment from warm 2700K to cool 6500K. Powered by a replaceable 18650 4000mAh battery (included), it provides modes from Eco (5lm) to Turbo (2500lm combined), with runtimes up to 400 hours on Eco. It charges via USB-C, with a buck driver for efficiency. The dual buttons (one for beam mode, one for brightness) are intuitive, though prolonged Turbo use generates heat, requiring caution.
Ergonomic and Durable Design Constructed from AL6061-T6 aluminum alloy with a hard-anodized finish, the Sofirn HS22 is lightweight and robust, measuring 80mm in length, 48.52mm in width, and 26.5mm in height, weighing 72g without battery (approximately 130g with), ensuring comfort for extended wear. The quick-release bracket with 180° adjustability allows hands-free or handheld use, and the T-shaped design balances weight. The headlamp is IP68 waterproof and 1.5-meter drop-resistant, though some users note the need for careful handling of the battery compartment.
Ideal for Outdoor and Professional Use The Sofirn HS22 2500 Lumen 260m Throw Rechargeable LED Headlamp is tailored for hikers, runners, and workers needing adaptable lighting. For example, its combo mode illuminates trails evenly, while the warm 2700K setting reduces eye strain for reading. The stepless dimming and memory function enhance usability, though lockout mode (loosen tailcap) prevents accidental activation. The IP68 rating ensures reliability in rain or dust, but rinse with fresh water after submersion. Avoid direct eye exposure due to its intensity, and monitor heat during Turbo mode. With a 1-year warranty, the HS22 offers excellent value, though the headband may require adjustment for comfort.
Package Dimensions and Weight
- Package Width: 10.0 cm
- Package Length: 15.0 cm
- Packaged Height: 6.0 cm
- Packaged Weight: 250g
Assembled Product Dimensions and Weight
- Assembled Product Width: 4.85 cm
- Assembled Product Length: 8.0 cm
- Assembled Product Height: 2.65 cm

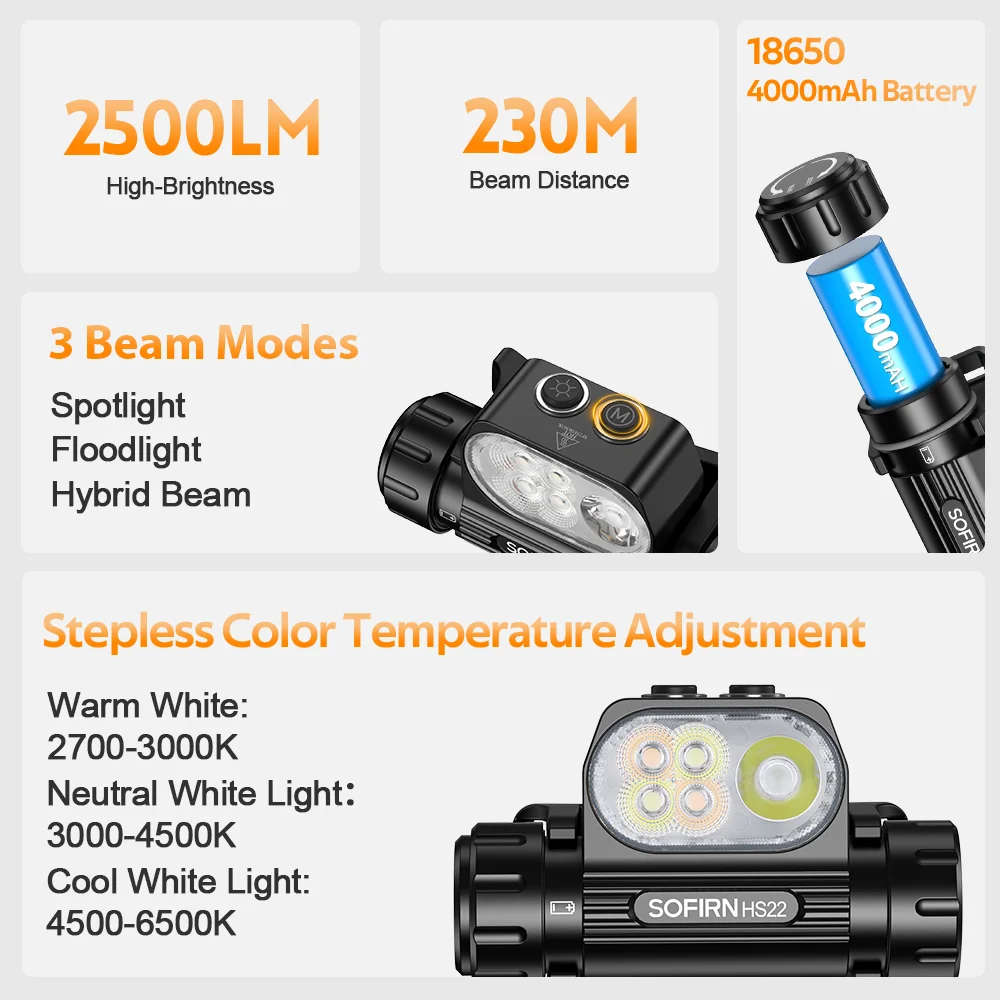

Key Features and Specs The Sofirn HS22 2500 Lumen 260m Throw Rechargeable LED Headlamp delivers professional performance. It features a SFT-25R spotlight (1500lm, 260m), TN-3535 floodlights (2000lm), stepless 2700K-6500K adjustment, modes (Eco to Turbo, spot/flood/combo), a 18650 4000mAh battery (included), USB-C charging, IP68 waterproofing, 1.5-meter impact resistance, 180° quick-release bracket, dual-button control, and includes a USB-C cable and manual, with a 1-year warranty. Its size (80mm x 48.52mm x 26.5mm) and weight (72g without battery) make it ideal for outdoor use.
Specifications Overview
- Type: Rechargeable LED Headlamp
- Purpose: Hiking, Camping, Night Work, Emergency Use
- LED: SFT-25R (6000-6500K), TN-3535 (6000-6500K CRI70 & 2700K CRI90)

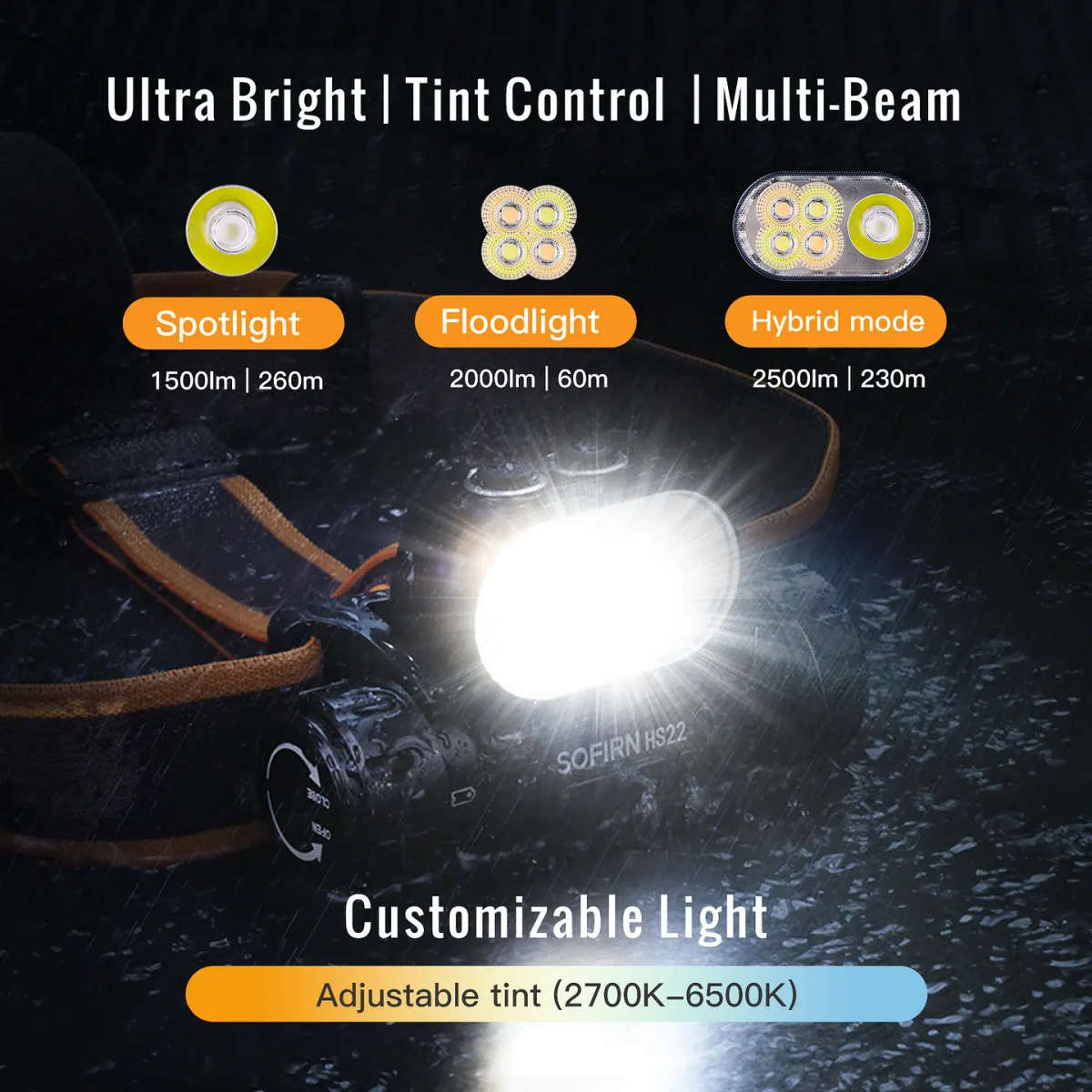

- Output: Up to 2500 Lumens (Combined), 1500 Lumens (Spot), 2000 Lumens (Flood)
- Beam Throw: 260m (Spot)

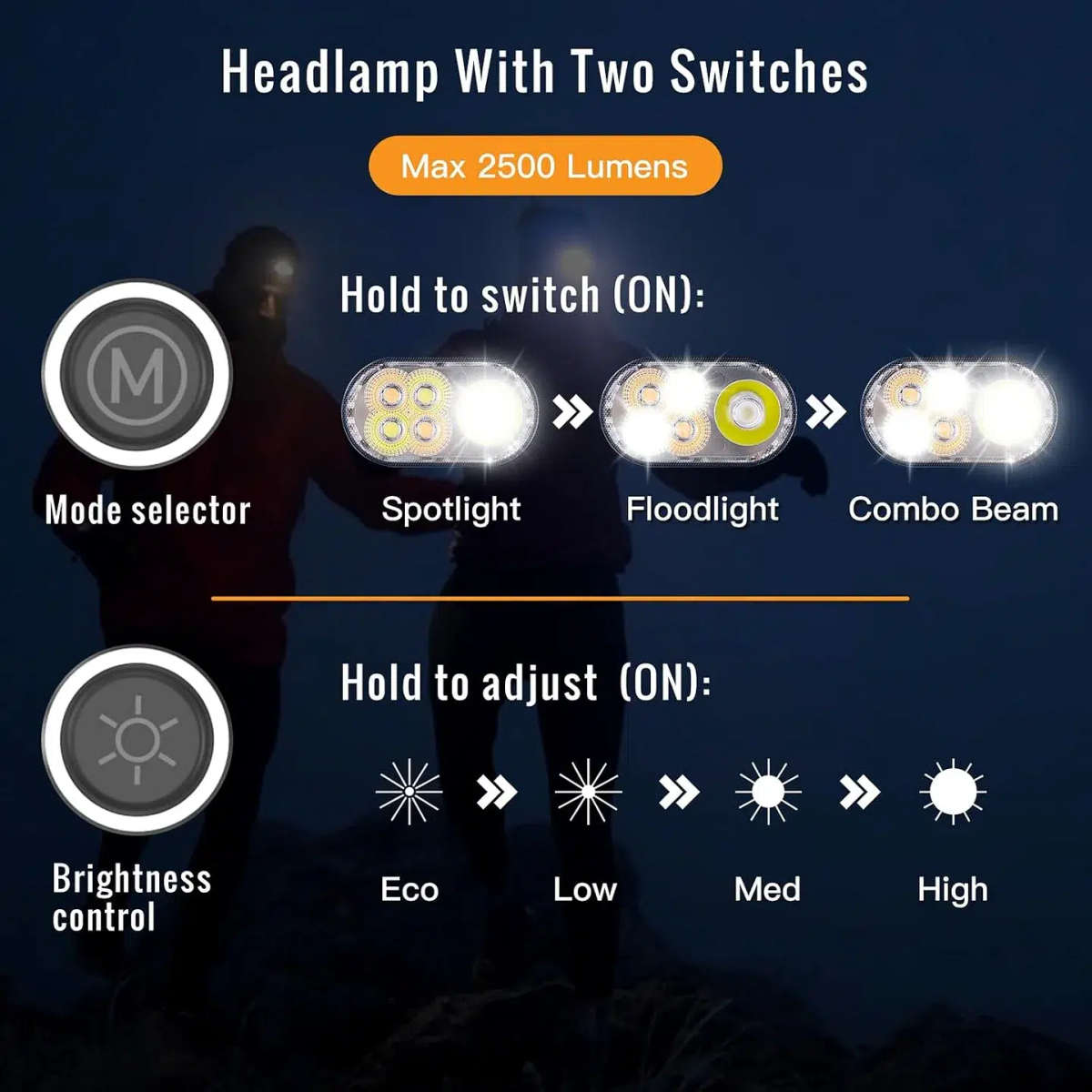

- Modes: Eco (5lm), Low (50lm), Medium (200lm), High (600lm), Turbo (1500-2500lm), Spot/Flood/Combo
- Battery: 1x 18650 4000mAh (Included)
- Charging: USB-C
- Waterproof: IP68 (Up to 2 Meters)
- Impact Resistance: 1.5 Meters
- Dimensions: 80mm (Length) x 48.52mm (Width) x 26.5mm (Height)
- Weight: 72g (Without Battery), ~130g (With Battery)
- Warranty: 1 Year
Package Contents The package includes:

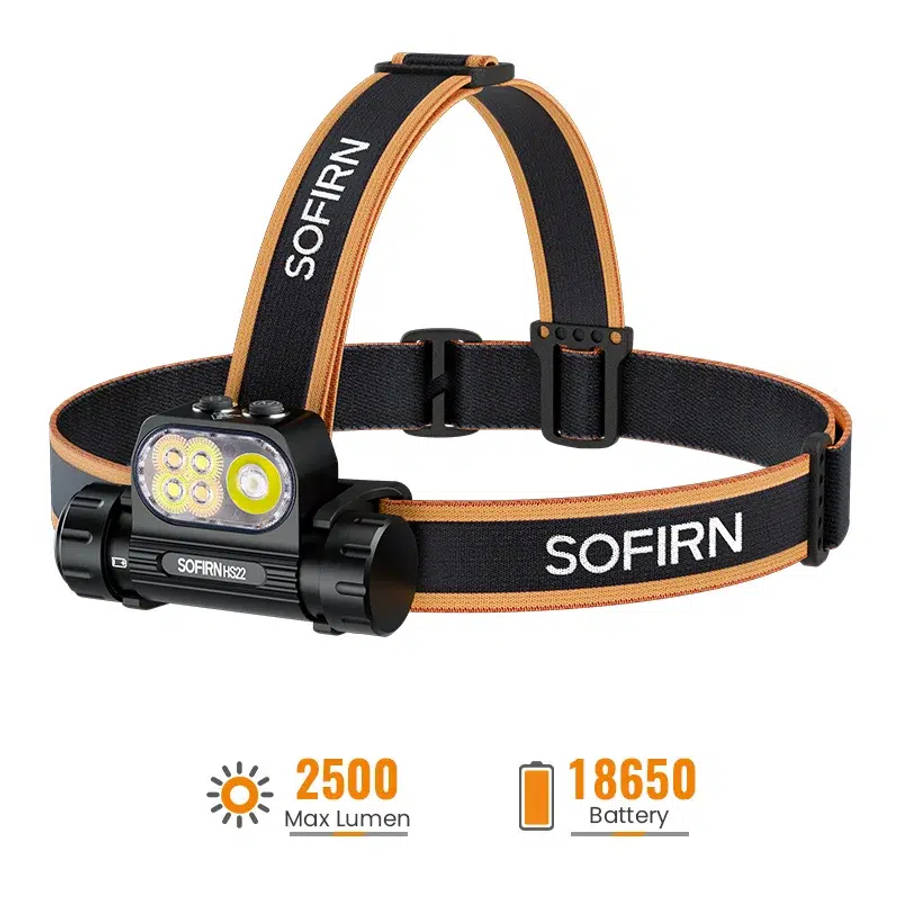

- Sofirn HS22 Headlamp
- 18650 4000mAh Battery
- USB-C Charging Cable
- Adjustable Headband
- User Manual
Note: Loosen the tailcap or activate lockout mode when not in use to prevent accidental activation. The IP68 rating supports submersion up to 2 meters but is not suitable for diving; avoid prolonged water exposure and rinse with fresh water after use. Handle with care during Turbo mode to avoid heat buildup, and avoid shining the light directly into eyes. Store in a dry place and use a 5V charger (not included) for optimal charging. The headband may require adjustment for comfort.
