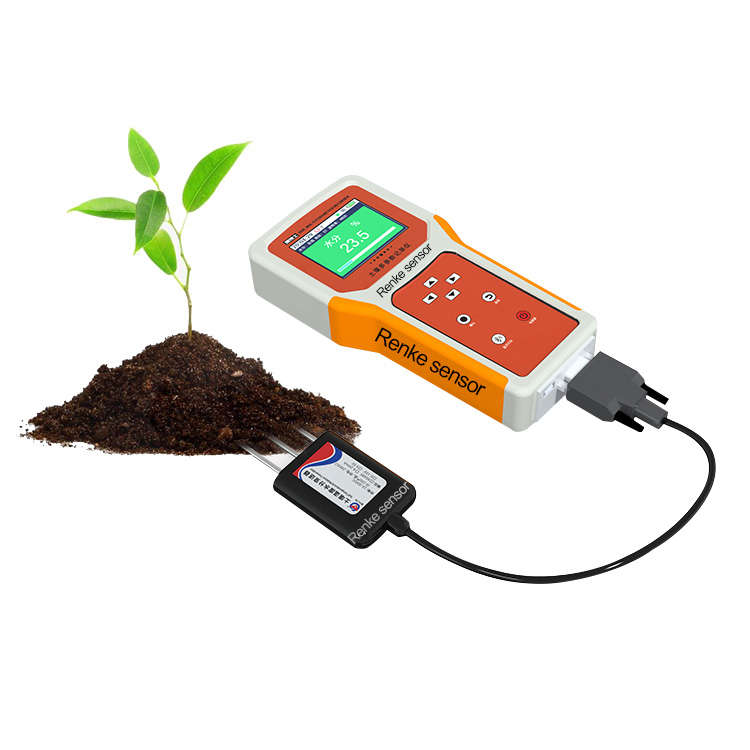

Soil Analyser pH, Temp, EC, Meter 7 in 1
Lead Time: 2-3 Weeks
At the same time, it uses the detection circuit designed by the digital chip of an international manufacturer, which can achieve very high sensitivity and excellent repeatability.
Handheld Terminal
| Power supply | Battery powered (5000mAh lithium battery) |
| Display | 2.8 inch LCD display |
| Data storage | 1 million data |
| Charging time | 8h |
| Communication mode | USB(read,see DB9 interface for details information) |
| Working environment | Temp: -10-50; humidity: Less than 95%RH without condensation |
| Accessible equipment | 1-4 ModBus device combination |
| Letter of agreement | Modbus-RTU protocol |
| Operating Voltage | DC 4.2V |
| Standby time | More than 8h continuous |
| Size | 209*100*36 mm |
| Weight | 500g |
Soil Temp+Humidi+EC Sensor
| Power supply | DC3.6-30V |
| Conductivity parameter | Range: 0-20000us/cm Resolution: 10us/cm within 0-10000us/cm; 50us/cm within 100000-20000us/cm Accuracy: 3% in the range of 0-10000 us/cm; 5% in the range of 10000-20000 us/cm |
| Soil moisture parameter | Range: 0-100% Resolution: 0.03% within 0-50%, 1% within 50-100% Accuracy: 2% within 0-50%, 3% within 50-100% |
| Soil temperature parameter | Range: -40~80C, resolution: 0.1C, accuracy: 0.5C |
| Conductivity temperature compensation | Built-in temperature compensation sensor, compensation range 0-50 C |
| Protection level | IP68 |
| Sealing material | Black flame retardant epoxy resin |
| Output signal | RS485 (Modbus protocol) |
Soil NPK Sensor
| Power supply | DC 5-30V |
| NPK measuring range | 1-1999 mg/kg(mg/L) |
| NPK Resolution | 1 mg/kg(mg/L) |
| NPK Precision | 2%FS |
| Probe material | stainless steel |
| Default cable length | 2 meters, cable length can be customized |
| Output signal | RS485(Modbus protocol) |
Soil PH Sensor
| Power supply | DC 5-30V |
| Measuring Range | 39 PH |
| Resolution | 0.1 |
| Accuracy | 0.3PH |
| Response time | 10S |
| Long-term stability | 5%/year |
| Probe material | Anti-corrosion special electrode |
| Sealing material | Black flame retardant epoxy resin |
| Output signal | RS485(Modbus protocol) |
