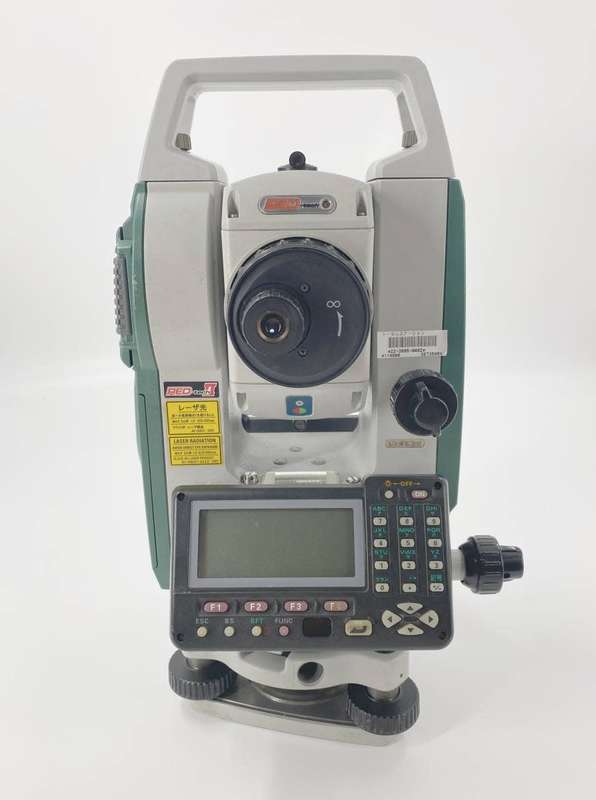

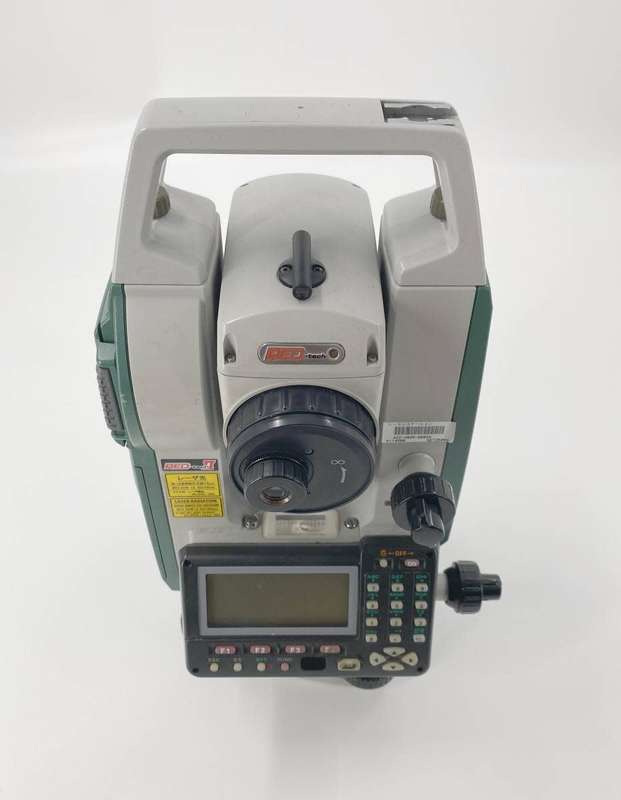

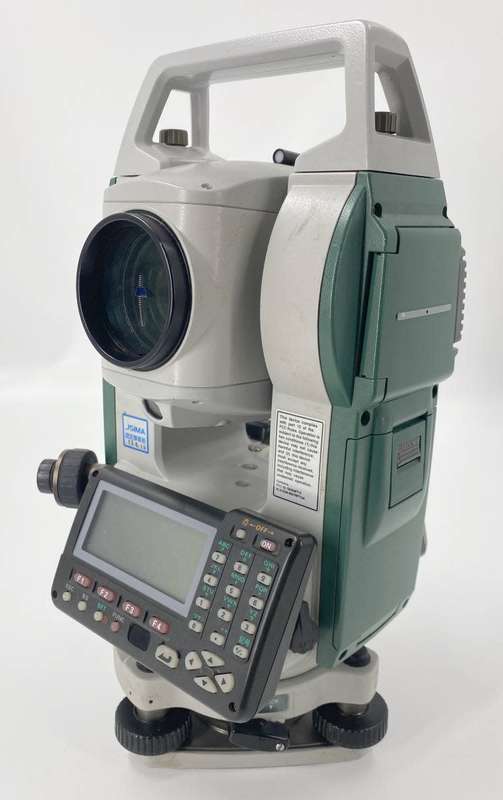

Sokkia Set350RX

Sokkia SET350RX total station with high technical capabilities and powerful built-in software for solving problems in construction, land management and topography. A large amount of memory, a slot for memory cards and USB flash facilitates data storage and management. Li-Ion batteries. Sight indicator for setting out points. IP66 protection. Made in Japan!

Advantages of Sokkia SET350RX

The main advantages of the Sokkia SET550RX tacheometer:

New high-precision rangefinder REDtechII,

Measuring range up to 400 m in reflectorless mode,

The device is made in Japan,

Backlit reticle and keyboard for working at dusk,

High accuracy and speed of distance measurement,

Convenient, intuitive controls

Li-Ion batteries are lightweight (about 100 g). No memory effect

Ability to control external keyboard SF14,

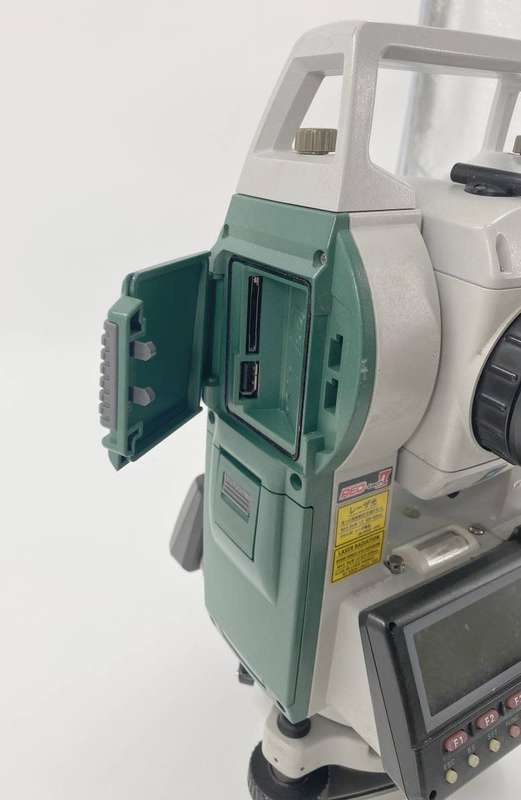

Connectors for SD / SDHC cards and USB flash drives,

Sight indicator for setting out points,

Low-temperature models with the L index operate at ambient temperatures down to 30°,

The laser plummet can be installed on any tacheometer in the series.

Description

The Sokkia SET350RX electronic total station of the SET x50RX series is a further development of the popular 30RK series. The SET350RX total station uses a high-speed REDtech II rangefinder with a maximum measurement range of up to 400 meters (without prism) and up to 5000 meters per reflector. The REDtech II rangefinder provides high accuracy and speed of measurements and greatly facilitates the shooting of facades and hard-to-reach objects.

Powerful embedded software combined with high technical capabilities allows the new SET x50RX series to be used to solve a wide range of problems in construction, land management and topography. A large amount of internal memory, combined with the ability to use Bluetooth® (optional), memory cards and a USB flash drive, provide virtually unlimited possibilities for storing and managing data. Simple data export (DXF/TXT/SDR formats, using special software included in the delivery package) allows further processing of electronic total station data.

High-precision models are used in observing deformations, constructing high-precision networks, and installing process equipment. Thanks to complete protection from dust and water, they can be used in any rain and in very dusty places.

Sokkia SET350RX software: determination of coordinates, setting out of coordinates, lines and arcs, resection, height of an inaccessible object, determination of an angle by repetition method, determination of an inaccessible distance, projection of a point onto a line, area calculation, offset measurements, traverse adjustment, calculation intersections.

Specifications

Device type

Total station type Manual

Guide screws Reinforcing

Angular measurements

Angular accuracy 3"

Display size 15"

Reflectorless measurements

Range without reflector 400 m

Precision without reflector ± (3.0 mm + 2.0 ppm)

Time without reflector 09 (17)/07 (14)/03 (14) sec

Reflector measurements

Range to reflector 5000 m

Accuracy per reflector ± (2.0 mm + 2.0 ppm)

Reflector time 0.9 (1.7)/0.7 (1.4)/0.3 (1.4) sec

Compensator

Compensator type two-axis

Operating range ±6"

Spotting scope

Increase 30x

Field of view angle 1° 30'

Reticle illumination Variable (5 levels)

Minimum focal length 1.3

Photographic Opportunities

Camera No

Nutrition

Battery Li-Ion battery (2 pcs)

Charging time 2 hours

Working hours 8.5 hours from 1 battery

Data Recording/Communication

Ports RS232, USB

WLAN No

RS232 Eat

Bluetooth No

USB Eat

Card reader SD/SDHC (up to 4GB)

Data Format SOKKIA SDR33 / TOPCON raw, xyz, gt7, pnt

Inner memory 10000 points

General characteristics

Target indicator Eat

Working temperature 30°C to + 50°C

Protection from dust and moisture IP66

Device dimensions 166 x 180 x 341

Weight with battery 5.4

Display and keyboard

Display type Monochrome

Display resolutions graphic LCD (192 x 80) with backlight

Backlight Display, keyboard

Second display graphic LCD (192 x 80) with backlight

Second keyboard Two keyboards with 29 keys

Center

Plummet type Optic

Auto height measurement No

Field software

Standard Features determination of coordinates, staking out coordinates, lines and arcs, resection, height of an inaccessible object, determination of an angle by repetition method, determination of an inaccessible distance, projection of a point onto a line, area calculation, measurements with offset, hurray
