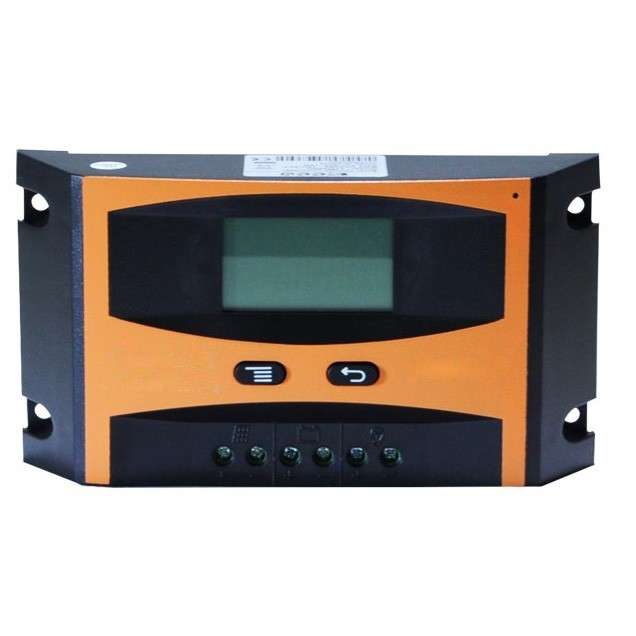

Solar Charge Controller - 12/24V - 30A

Features:

• Automatic identification system voltage: 12 volts / 24 volts
• Max Solar INPUT voltage: 55V
• Humanized LCD displaying and double button operation of man-machine interface
• The load control mode can be selected; the timer function can be reset for street light at night
• Reliable over voltage protection: short circuit protection, overload protection, overcharge protection, over-discharge protection
• Accurate temperature compensation, correcting the charging and discharging voltage automatically, improving the battery lifetime
• Roundly reverse connected protection
• Solar panels, battery, solar charge controller positive poles are all connected together, adopting negative MOSFET in series control circuit

Ideal for off grid solar system up to:

• 12 Volt 350 Watt solar panels
• 24 Volt 700 Watt solar panels

Specifications:

• Max. Charge/Discharge Current: 30A
• Waterproof grade: IP32
• Working Temperature: -20C---+55C
• Load Over Current Protection: Yes, each two minutes restart once
• Size: 168 x 92 x 41.5mm
• Weight: 320g
