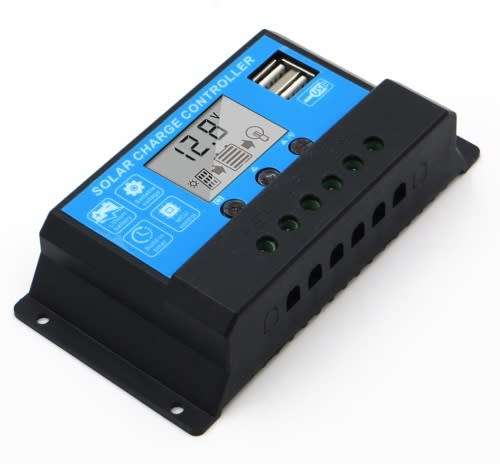

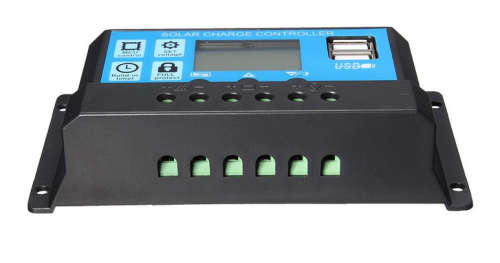

Solar Charge Controller Dual USB Port LED Indicator PWM Solar Controller - 10A LOW SHIPPING FEES!!!

1 was available / new

R75.00 minimum increment

R151.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Camp-Panion214

99.54 % Positive ratings

Buyer protection

How you're covered

Returns

Warranty Type: Replacement Replacement if malfunctioning within 7 days

Replacement Guarantee: 7 Days: Replacement if malfunctioning within 7 days

Condition

New

Location

South Africa

Bob Shop ID

583804282

Features:

1.Build-in industrial micro controller.

2.Fully 4-stage PWM charge management.

3.One-key setting, digital display, auto memory function.

4.Dual mosfet Reverse current protections, low heat productions.

5.Build-in short-circuit protections, open-circuit protections, reverse protections, over-load protections.

Specifications:

Model: PWM

Buck charge: 28.8V

Float charge: 27.4V

USB output: 5V/3A

Self-consume: <10mA

Discharge stop: 21.4V

Voltage: DC 12V/24V

Max solar input: <50V

Current: 10A

Rated working current: 20A

Discharge reconnect: 25.2V

Working temperature: -35~60

Output voltage: 12V/24V Automatically distinguish voltage

Feature:

With Timer and light sensor, it could work for solar light system(Only For off-Grid PV Solar System):

-For 10A 12V Pv System: 120W Solar Panel, 12V Lead-acid Battery, 21V for Max input Voltage.

-For 10A 24V Pv System: 240W Solar Panel, 24V Lead-acid Battery, 42V for Max input Voltage.

Safety Instructions:

1.Make sure your battery has enough voltage for the controller to recognize the battery type before first installation.

2.The battery cable should be as short as possible to minimize loss.

3.The regulator is only suitable for lead acid batteries: OPEN, AGM, GEL (It is not suited for nickel metal hydride, lithium ions or other batteries).

4.The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.

System Connection:

1.Connect the battery to the charge regulator - plus and minus.it will show 1 ,if it detects 12V battery, 2 if it detects 24V battery.

2.Connect the photovoltaic module to the regulator - plus and minus.

3. Connect the consumer to the charge regulator - plus and minus.

Package Contents:

1X Solar panels Battery Charge Controller 10A

1X User Manual
