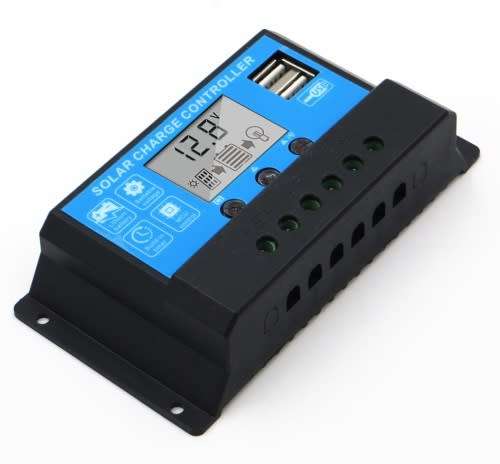

Solar Charge Controller Dual USB Port LED Indicator PWM Solar Controller - 30A
Specifications:
Material: ABS
Rated Voltage: 12V / 24V Automatic
Rated Current: 30A
Max PV Voltage: 50V
Max PV Input Power for 12V Battery: 390W
Max PV Input Power for 24V Battery: 780W
USB output: 5V / 600mA
System Connection Order:
1. Connect the battery to the charge regulator - plus and minus.
2. Connect the photovoltaic module to the regulator - plus and minus.
3. Connect the Load to the charge regulator - plus and minus.
NOTE: The reverse order applies when de-installing! An improper sequence order can damage the controller!
