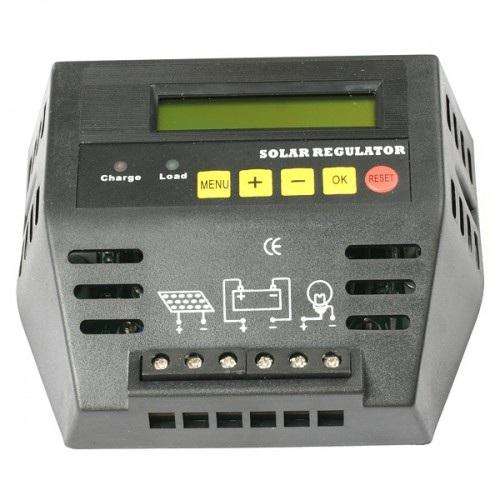

Solar charge controller - Juta - Electronic - 20A - Pre-settable control parameters

Solar Charger Regulator Controller LCD Panel 20A 12V/24V

If you use solar panels as a means of energy, you should be regulating the current charge in accordance with the battery voltage,
and this 12/24V 20A solar controller, with LED indicator lights, is just the device for the job.

Benefits:
Maintains full voltage in battery
Prevents battery from over-charging
Prevents battery from over-discharging
Prevents battery from supplying electricity to solar panels at night
Reverse polarity protection for battery
Reverse polarity protection for solar panel
Auto locking self-protection mode when current exceeds rate of controller
Auto locking self-protection mode when short circuit occurs
Controller will auto-separate loads from system in the event of battery low voltage
Protection against lightning strikes
Automatic Temperature Compensation
LCD screen displays charge current, discharge current and battery voltage every 5 seconds
Continuous count of charge and discharge current battery hours
Auto set-up of charge-on/off and load-on/off voltage depending on voltage level of the battery
Manual set-up of charge-on/off and load-on/off voltage option
The solar controller is brand new and boxed and comes with instructions

Specifications:
Rated voltage: 12V, 24V (automatically distinguished voltage)
Loading current max: 16A - 24A
Full charge cut: 13.7V; X 2/24V
Low voltage cut: 10.5V; X 2/24V
Reconnected voltage: 12.6V; X 2/24V
Temperature compensation: -3mv/cell, ˚C recognise and reset
No load loss: ≤30mA
Wire area minimum: 4mm²
Voltage drop: <240mv
Dimensions: 13.7 x 11 x 4.7cm (5.4 x 4.4 x 1.9”)
Weight: 395g
Colour: black
