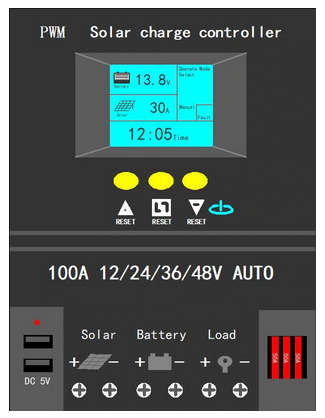

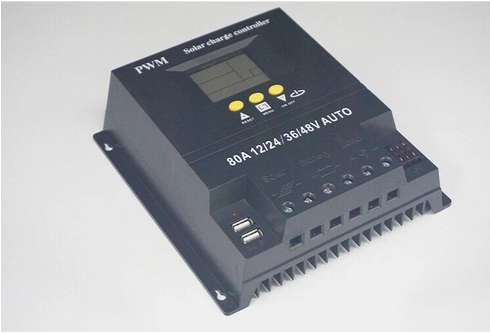

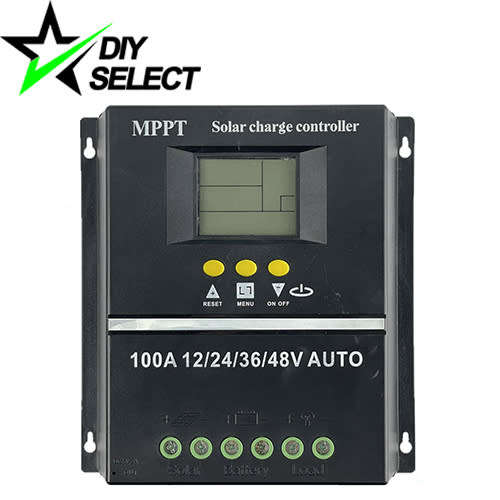

Solar Charge Controller 12/24/36/48V 100A  Display/USB/Timer:



Free combined shipping for additional orders placed in our other store "LED SELECT"  https://bidorbuy.co.za/seller/434337

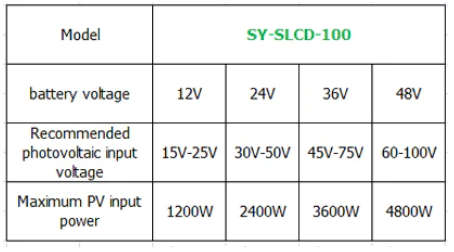

Specifications:

Material: ABS
Colour: Black + Orange

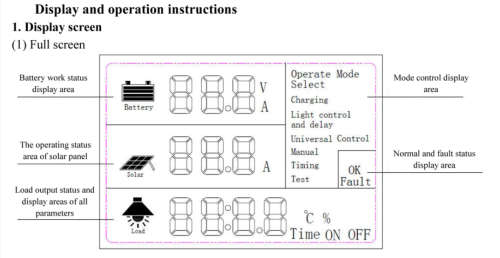

Display: LCD screen
Battery Voltage: 12V / 24V / 36V 48V  Automatic
Rated Current: 100A
USB output: 5V / 1000mA
Size: 195 x 183 x 60mm

Max Cable Size: 8mm Sq

- Built-in industrial micro controller

- Big LCD display, all adjustable parameters

- Full 4-stage PWM charge management

- Short-circuit protection, open-circuit protection, reverse protection, over-load protection

- Dual mosfet reverse current protection,low heat production

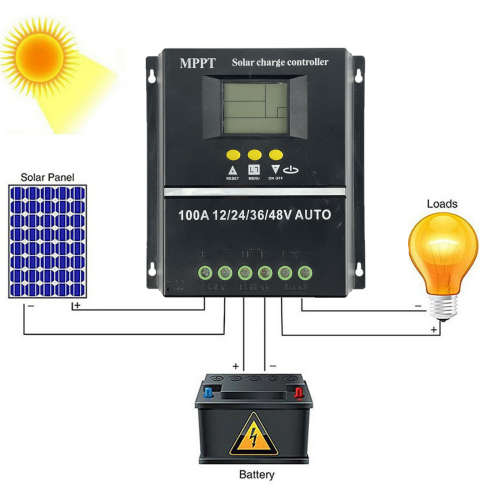

System Connection Order:

1. Connect the battery to the charge regulator - plus and minus.
2. Connect the photovoltaic module to the regulator - plus and minus.
3. Connect the Load to the charge regulator - plus and minus.
NOTE: The reverse order applies when deinstalling! An improper sequence order can damage the controller!
