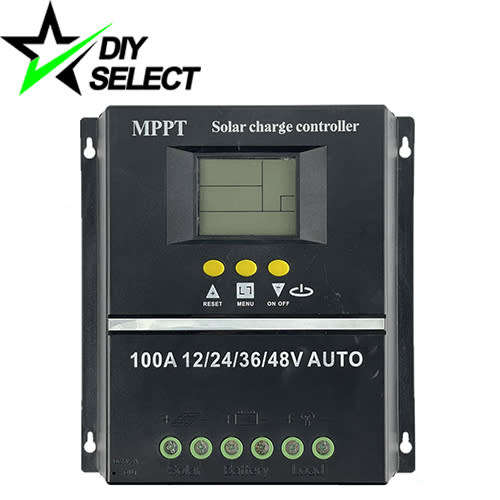

Solar Charge Controller Regulator 12/24/36/48V Automatic 100A with Display USB **LOCAL STOCK**
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product information
Solar Charge Controller 12/24/36/48V 100A Display/USB/Timer:
| Free combined shipping for additional orders placed in our other store "LED SELECT" https://bidorbuy.co.za/seller/434337 |
Please Note: This item has a slight crack on one corner by the mounting hole. It does not affect the items function. Price has been lowered - Please see actual photo below.
Specifications:
Material: ABS
Colour: Black + Orange
Display: LCD screen
Battery Voltage: 12V / 24V / 36V 48V Automatic
Rated Current: 100A
USB output: 5V / 1000mA
Size: 195 x 183 x 60mm
Max Cable Size: 8mm Sq
- Built-in industrial micro controller
- Big LCD display, all adjustable parameters
- Full 4-stage PWM charge management
- Short-circuit protection, open-circuit protection, reverse protection, over-load protection
- Dual mosfet reverse current protection,low heat production
System Connection Order:
1. Connect the battery to the charge regulator - plus and minus.
2. Connect the photovoltaic module to the regulator - plus and minus.
3. Connect the Load to the charge regulator - plus and minus.
NOTE: The reverse order applies when deinstalling! An improper sequence order can damage the controller!
