Solar Charge Controller Regulator 12/24V 30A with Display USB White **LOCAL STOCK**
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
Solar Charge Controller 12/24V 30A with Display/USB/Timer:
| Free combined shipping for additional orders placed in our other store "LED SELECT" https://bidorbuy.co.za/seller/434337 |

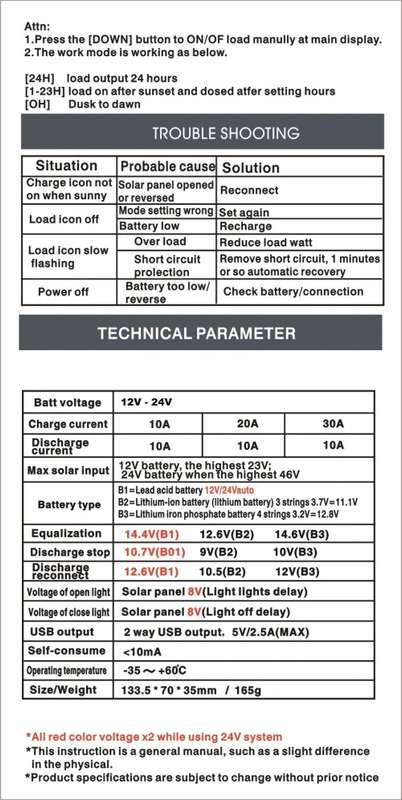

Specifications:
Battery Type: OPEN, AGM, GEL and Lithium iron/Ion
Battery Voltage: 12V/24V AUTO for OPEN, AGM, GEL only
Charge Current: 30A
Discharge Current: 10A
Max Solar Open Voltage: < 23V @ in 12V battery / 45V @ in 24V battery
Max Input Power: 360W/12V system, 720W/24V system
(The Input Power of the PWM controller should not exceed 75% of the controller, which can extend the life of the controller)
Discharge Reconnect: 12.6V (B1 BAT type)
USB Output: 5V/3A
Self-consume: <10mA
Operating Temperature: -35 to 60 degree C
Battery Choice:
B1=Lead-acid battery
B2=Lithium-ion battery 3strings 3.7V=11.1V
B3=Lithium iron phosphate battery 4strings 3.2V=12.8V

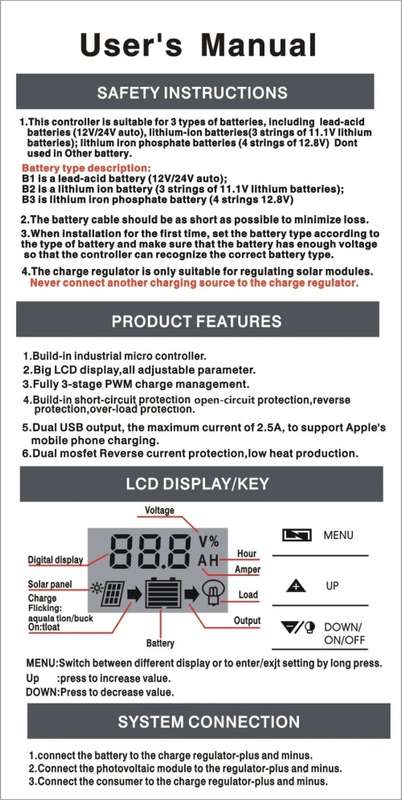

System Connection Order:
1. Connect the battery to the charge regulator - plus and minus.
2. Connect the photovoltaic module to the regulator - plus and minus.
3. Connect the Load to the charge regulator - plus and minus.
NOTE: The reverse order applies when deinstalling! An improper sequence order can damage the controller!
