Material: ABS
Max PV Voltage on 12V: 24V
Max PV Voltage on 24V: 48V
Max Watts on 12V: 360W
Max Watts on 24V: 720W
USB output: 5V / 600mA

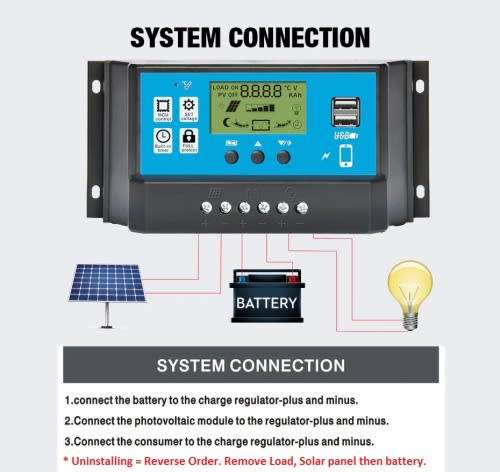

System Connection Order:
1. Connect the battery to the charge regulator - plus and minus.
2. Connect the photovoltaic module to the regulator - plus and minus.
3. Connect the Load to the charge regulator - plus and minus.
NOTE: The reverse order applies when deinstalling! An improper sequence order can damage the controller!
