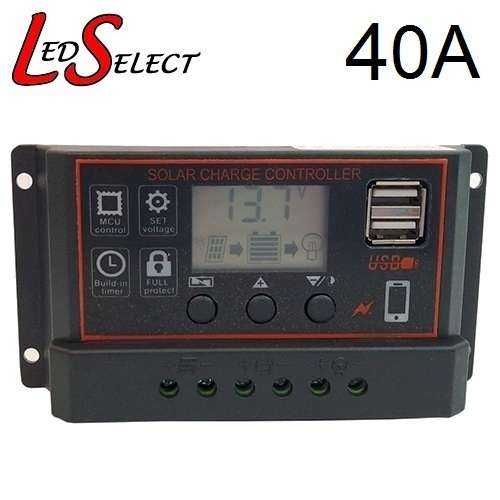

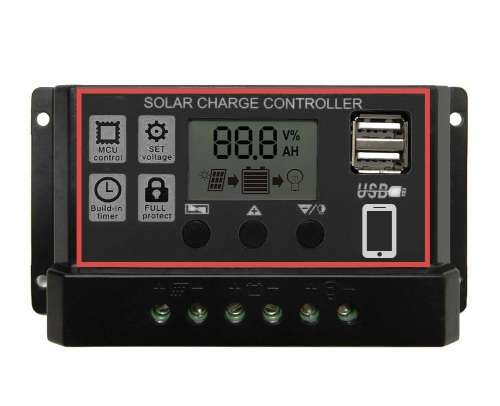

Solar Charge Controller 12/24V 40A with Display/ USB/Timer:
Category: 1500312645 / 1524312645 - Charge Controller
Specifications:
Material: ABS
Colour: Black + Orange
Display: LCD screen
Battery Voltage: 12V / 24V auto
Rated Current: 40A
Max Solar Input: 12V battery - 23V / 24V battery - 46V
USB output: 5V / 600mA
Size: 182 x 90 x 50mm
- Built-in industrial micro controller
- Big LCD display, all adjustable parameters
- Full 4-stage PWM charge management
- Short-circuit protection, open-circuit protection, reverse protection, over-load protection
- Dual mosfet reverse current protection,low heat production
System Connection:
1.Connect the battery to the charge regulator - plus and minus.
2.Connect the photovoltaic module to the regulator - plus and minus.
3. Connect the consumer to the charge regulator - plus and minus.
The reverse order applies when deinstalling

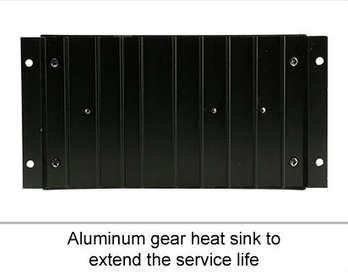

* Please Note: This charge controller has a Heatsink backing
