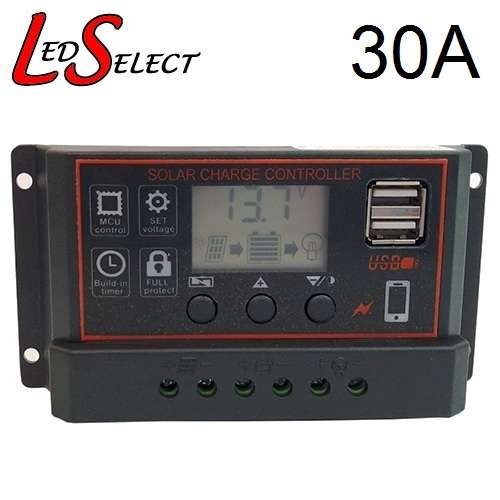

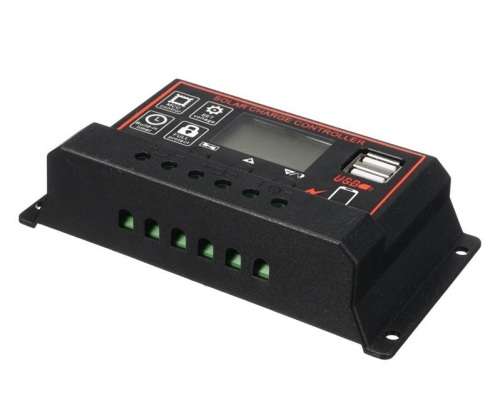

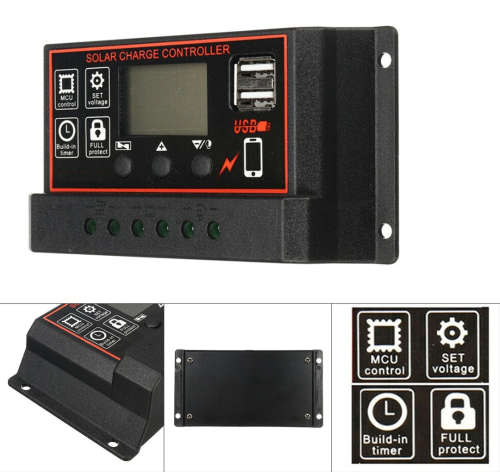

Solar Charge Controller Regulator 12V 24V 30A with Display USB Timer **LOCAL STOCK**

Solar Charge Controller 12/24V 30A with Display/ USB/Timer:

Category: 1500312645 / 1524312645 - Charge Controller

Specifications:

Material: ABS
Colour: Black + Orange

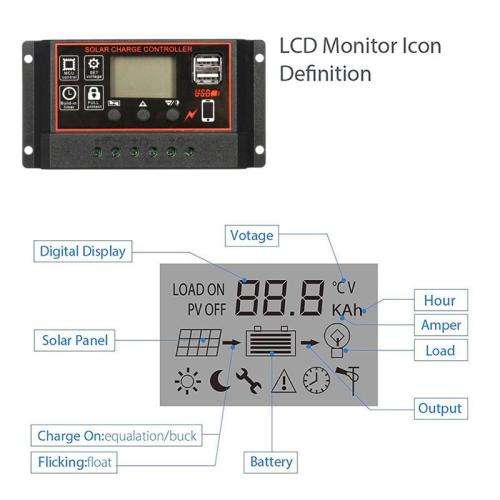

Display: LCD screen
Battery Voltage: 12V / 24V auto
Rated Current: 30A
Max Solar Input: 12V battery - 23V / 24V battery - 46V
USB output: 5V / 600mA
Size: 133 x 70 x 35mm

- Built-in industrial micro controller

- Big LCD display, all adjustable parameters

- Full 4-stage PWM charge management

- Short-circuit protection, open-circuit protection, reverse protection, over-load protection

- Dual mosfet reverse current protection,low heat production

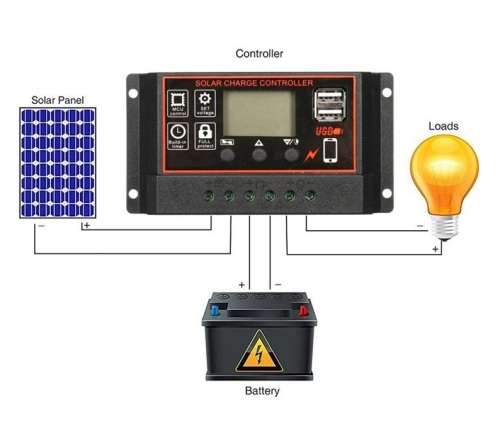

System Connection:

1.Connect the battery to the charge regulator - plus and minus.

2.Connect the photovoltaic module to the regulator - plus and minus.

3. Connect the consumer to the charge regulator - plus and minus.

The reverse order applies when deinstalling
