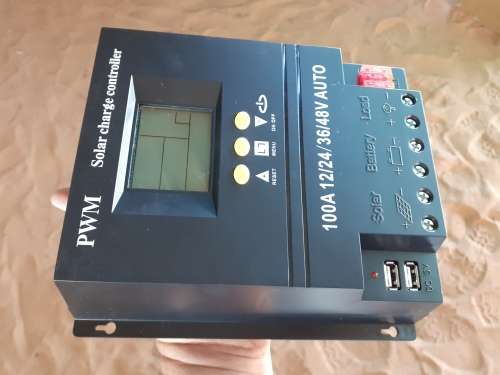

Solar Charge Controller 12/24/36/48V 100A Display/USB/Timer:
Category: 1500312645 / 1524312645 - Charge Controller
Specifications:
Material: ABS
Colour: Black + Orange
Display: LCD screen
Battery Voltage: 12V / 24V / 36V 48V Automatic
Rated Current: 100A
USB output: 5V / 1000mA
Size: 195 x 183 x 60mm
Max Cable Size: 8mm Sq
- Built-in industrial micro controller
- Big LCD display, all adjustable parameters
- Full 4-stage PWM charge management
- Short-circuit protection, open-circuit protection, reverse protection, over-load protection
- Dual mosfet reverse current protection,low heat production
System Connection:
1.Connect the battery to the charge regulator - plus and minus.
2.Connect the photovoltaic module to the regulator - plus and minus.
3. Connect the consumer to the charge regulator - plus and minus.
The reverse order applies when deinstalling
