Solar Charge Controller Solar Regulator Solar 3A 12V **IN STOCK**
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product information

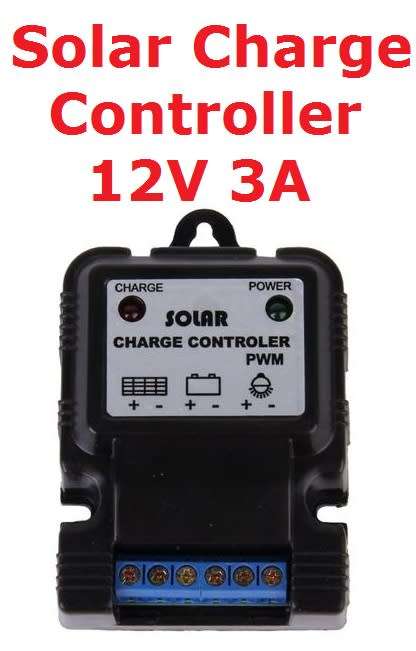

Charge Controller Regulator Solar 3A 12V:
Specifications:
Solar Panel Power: <=36W
Rated Discharge Current: 3A
System Voltage: 12V
Self Consumption: m≤6mA
High Voltage Protection: 16.5V
High Voltage Resume: 15V
Over Discharge Voltage: 11V
Over Discharge Voltage Resume: 12.8V
Boost Voltage: 14.8V
Charging Time: 60 minutes
Equalization Voltage: 14.4V
Float Voltage: 13.8V
Charge Resume Voltage: 13.2V
Working Temperature: -20'C~55'C
Outline Dimension And Weight: 53.4*68.6*22mm 0.033KG
Over Loading and Short Circuit Protection: If the load current is greater than 3 rate current, close Output at once. If the load current is greater than 1.5 rate current, close Output delay for 5 minutes, open output after 5 minutes
Max Solar Panel Size: <= 36W
