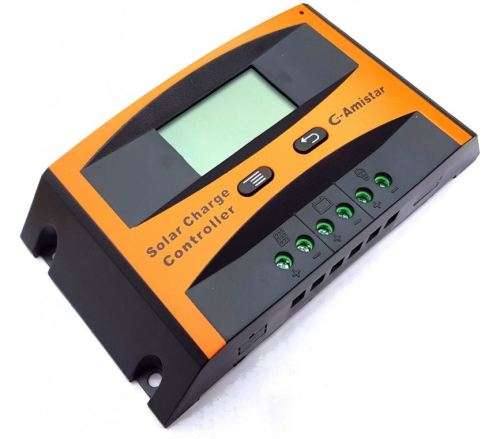

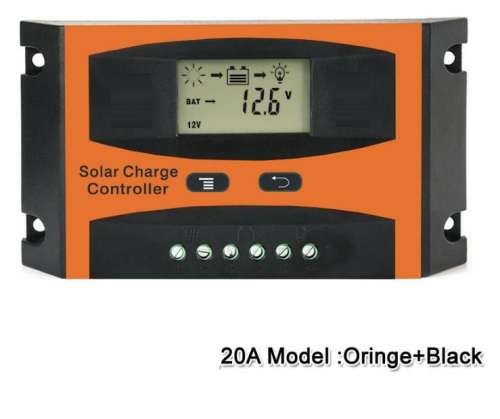

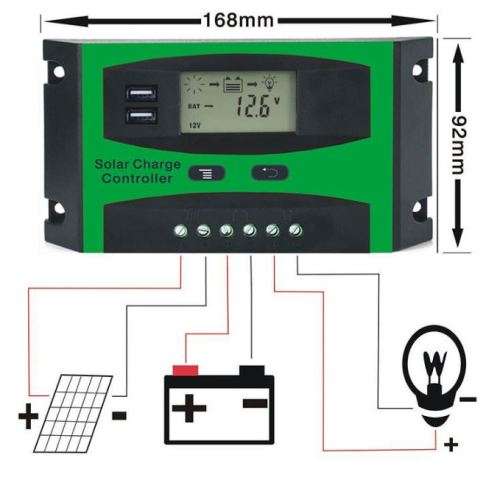

Solar controller cm2024 with large terminal blocks 10a 12V / 24V Solar controller PWM LCD display for solar power systems

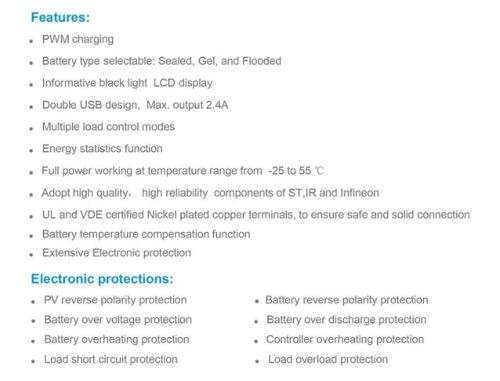

Characteristics:
1) The use of a single chip and special software to achieve intelligent control;
2) LCD shows the status of the working day and the parameters
3) with excess load, discharge, electronic phrase, overload protection, unique anti-inverse protection;
4) using a PWM series charging the main circuit, charging efficiency that does not PWM 3% -6%;
5) Output with light control and delay function
6) the loading and unloading parameters can be adjusted;
7) Real-time display of charge current and discharge current;
8) Large terminal blocks, can take 30 square cables;
9) External temperature sensor, with temperature compensation function;
Description of parameters:
KindCM2024-10 CM2024-30CM2048-20CM2048-30
Rated load10A 30A20 A30A
Rated load current10A 30A20 A30A
Work stress12 V / 24 V 12 V / 24 V 48 V 48 V
Protection against overload and short circuitProtection over the load: when the controller current is 1.25 times of the nominal current, the controller works for 60 seconds; 1.5 times of the nominal current, it works for 5 seconds. Short circuit protection: when the controller current is greater than or equal to 3 times or rated current, the protection starts.
No current load loss≤ 5ma
Voltage drop load circuit≤0. 26 V
Pressure discharge circuit≤0. 15 V
About volltage protection17 V; * 2.24 V
Work temperature-35C A + 55c
Increase the charge voltage14.6 V; * 2/24 V; * 4/48 V;
Direct charge voltage14.4 V; * 2/24 V; * 4/48 V;
Load voltage float13.6 V; * 2/24 V; * 4/48 V;
Load recover stress13.2 V; * 2/24 V; * 4/48 V;
Temperature compensation-5mv / C / 2 V
Low Voltage Voltage12.0 V; * 2/24 V; * 4/48 V;
Over discharge voltage11.1; * 2/24 V; * 4/48 V;
About discharge recovering tension12.6 V; * 2/24 V; * 4/48 V;
Control methodPWM modulation charging mode
DimensionSize of the dimension: 190mm * 93mm * 48mm; Installation dimensions: 178mm * 60mm
