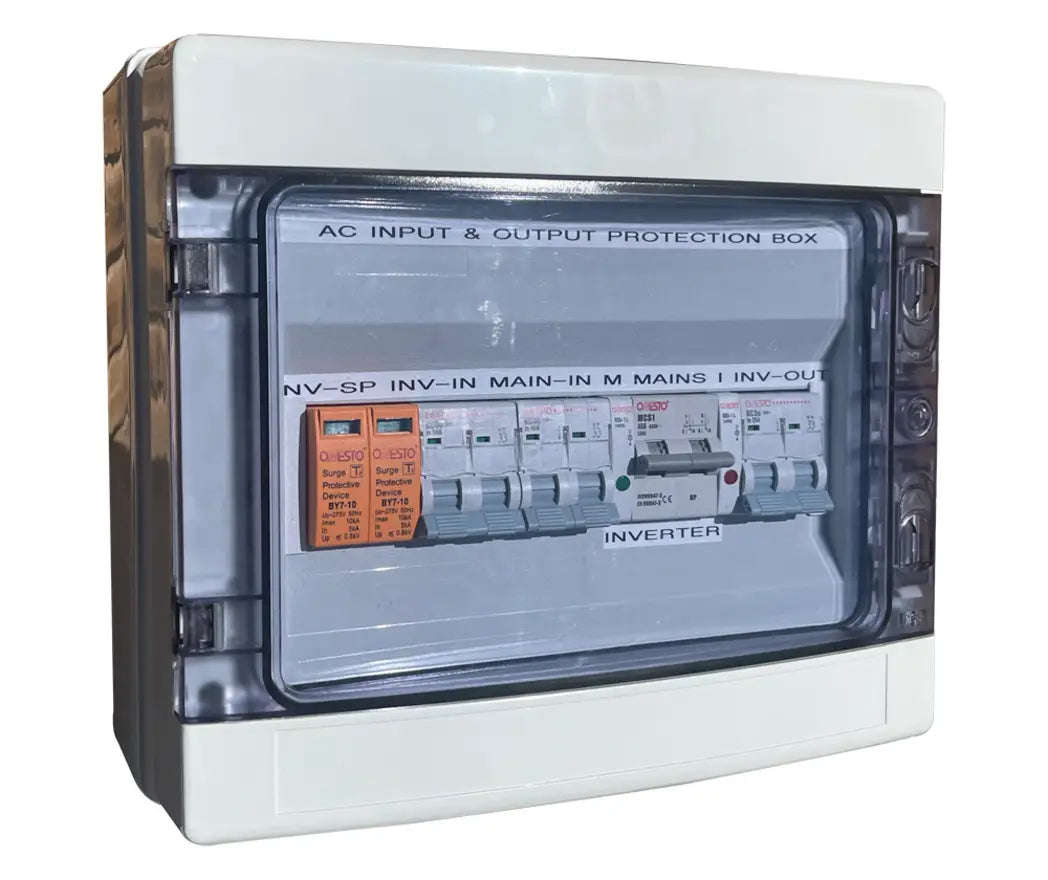

Solar Distribution Board AC Input & Output PB-5
Sold

Solar Distribution Board AC Input & Output PB-5

10 were available / new
R100.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 2 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
PB-5
Bob Shop ID
596910679

Solar Distribution Board AC Input & Output PB-5

Municipal Feed To Change Ower

  • max operating ac voltage: 250Vac
  • max current mains input circuit breaker to change over: 40A-2Pole
  • no of poles for changeover: 2Pole
  • changeover rated voltage: 400Vac
  • changeover rated current: 40A
  • changeover rated impulse withstand voltage: 4 KV
  • front operation with three stable positions: I-O — II
  • mains indication light: Green -240 Vac

Inverter  Input Feed From Municipal Grid

  • max operating ac voltage: 230 Vac
  • max current inverter input circuit breaker to change over: 40A -2 Pole
  • inverter input ac surge protection: Type 2
  • nominal discharge current: 5KA
  • maximum discharge current: 10KA
  • voltage protection level 0.8 KV
  • maximum continuous operating voltage uc: 275V
  • min required inverter input cable size: 10mm2

Inverter Output Feed

  • max operating ac voltage: 230 Vac
  • max current inverter output main circuit breaker: 25A -2Pole
  • min required inverter output cable size:4mm2
  • inverter indication light: Red — 240 Vac

Distribution Board

  • enclosure: PVC with smokey swing door
  • IP rating: IP 65
  • double insulated: yes
  • dimensions: 260(L) x 300(W) x 140(D)
  • earth bar: 6 way
  • neutral bar:6 way
  • installation method: wall mounting
  • operating temperature: -20C to 80C
