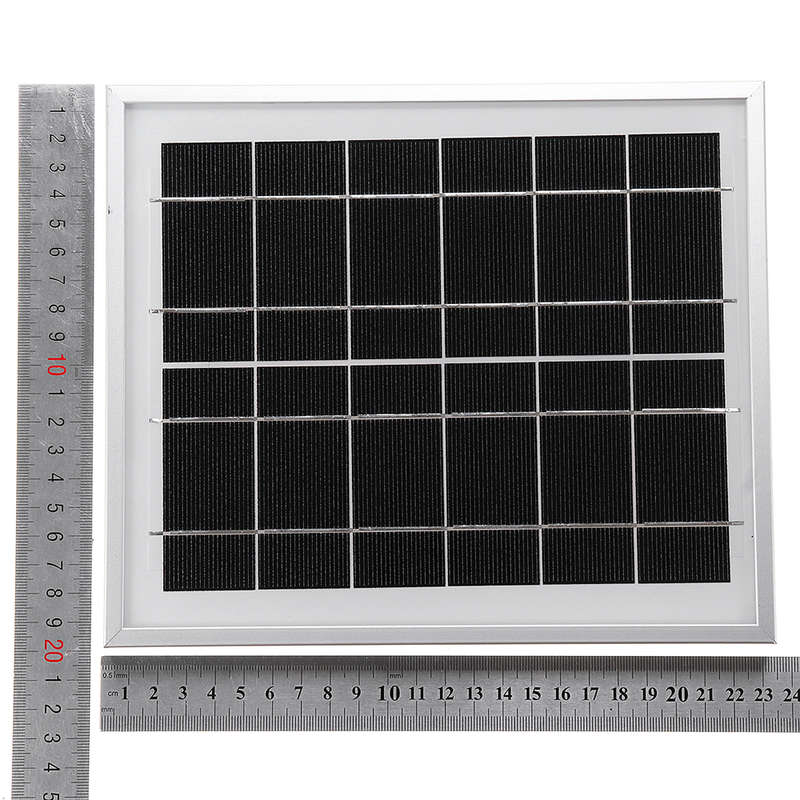

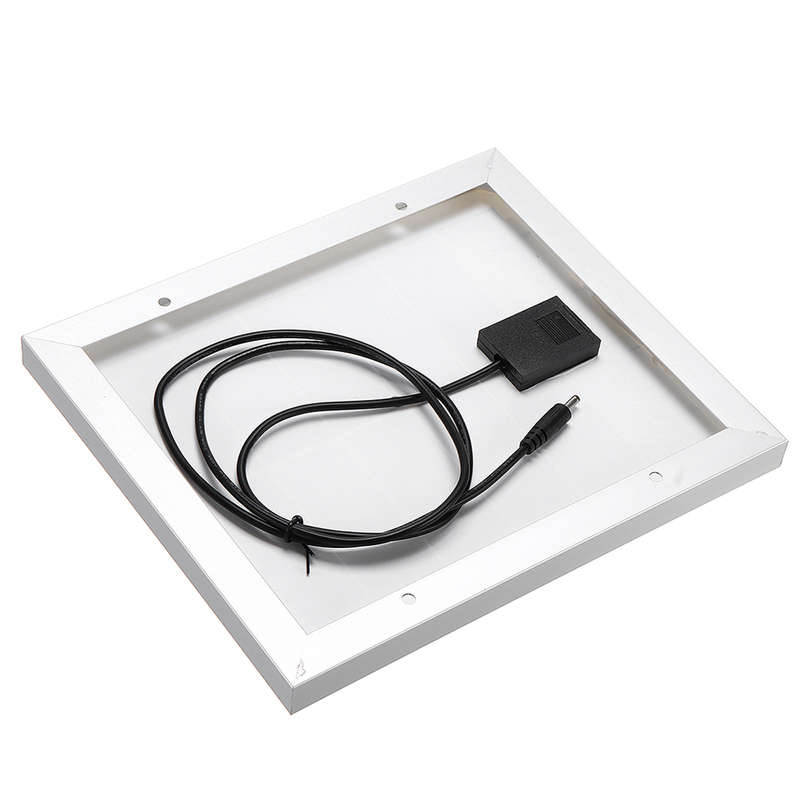

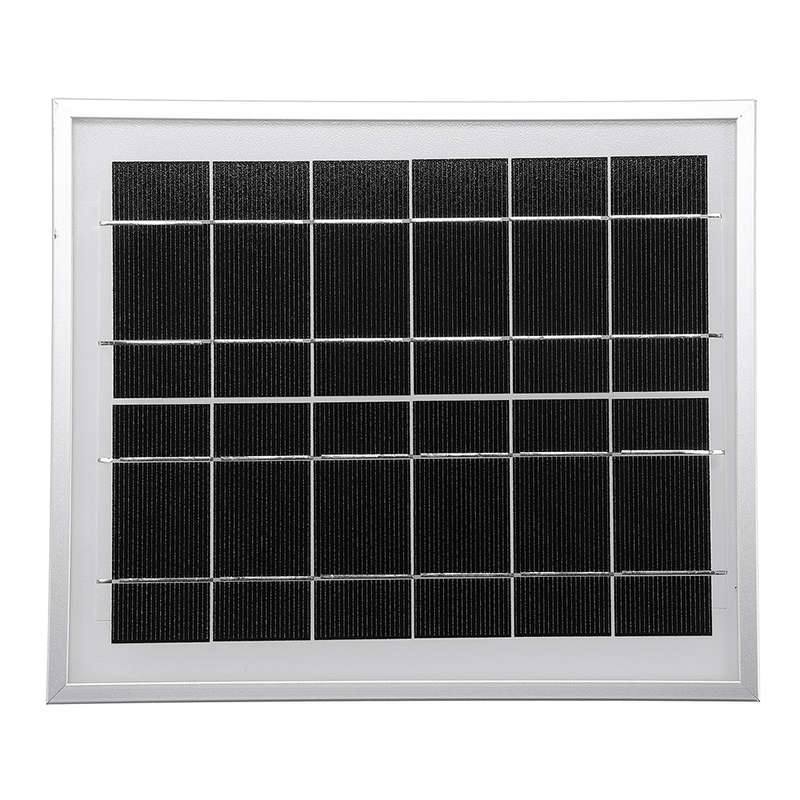

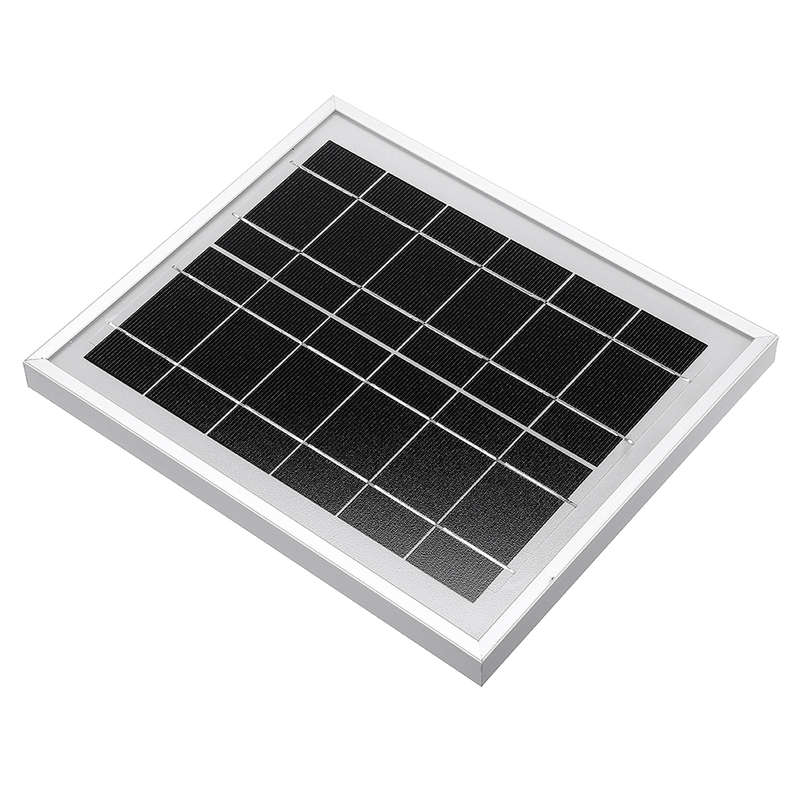

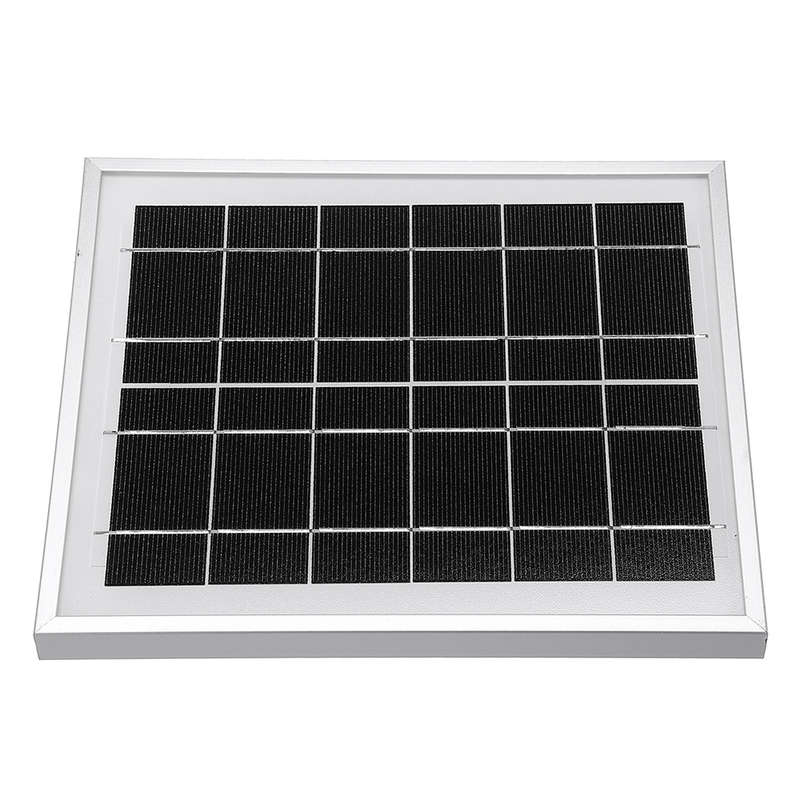

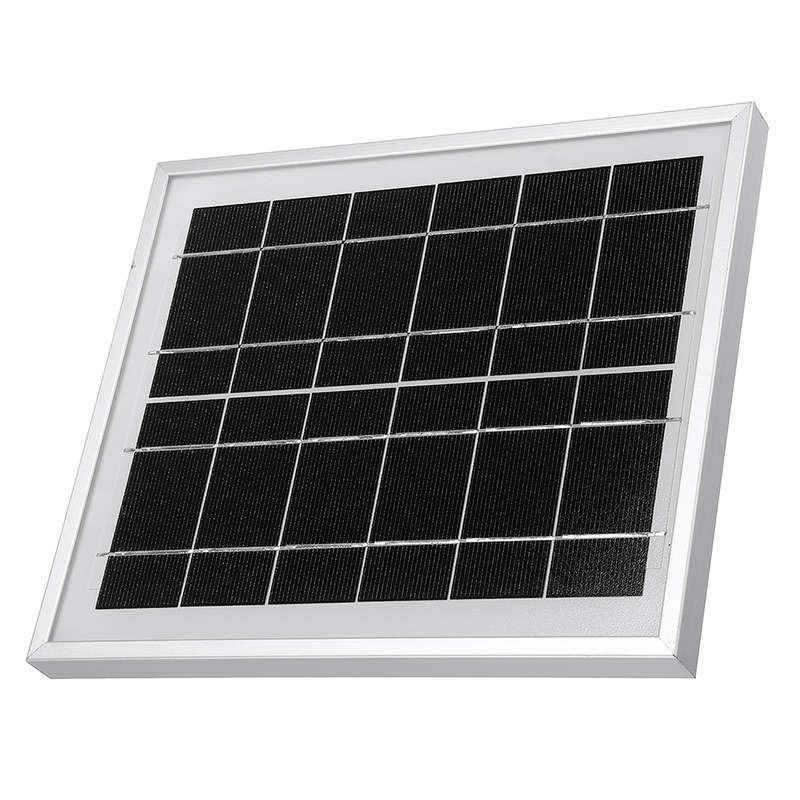

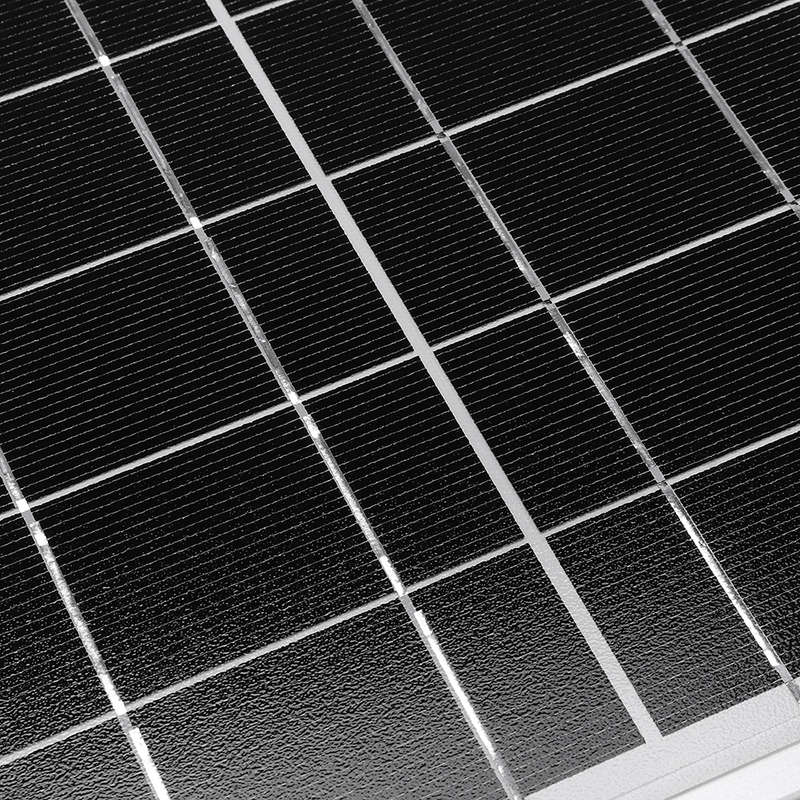

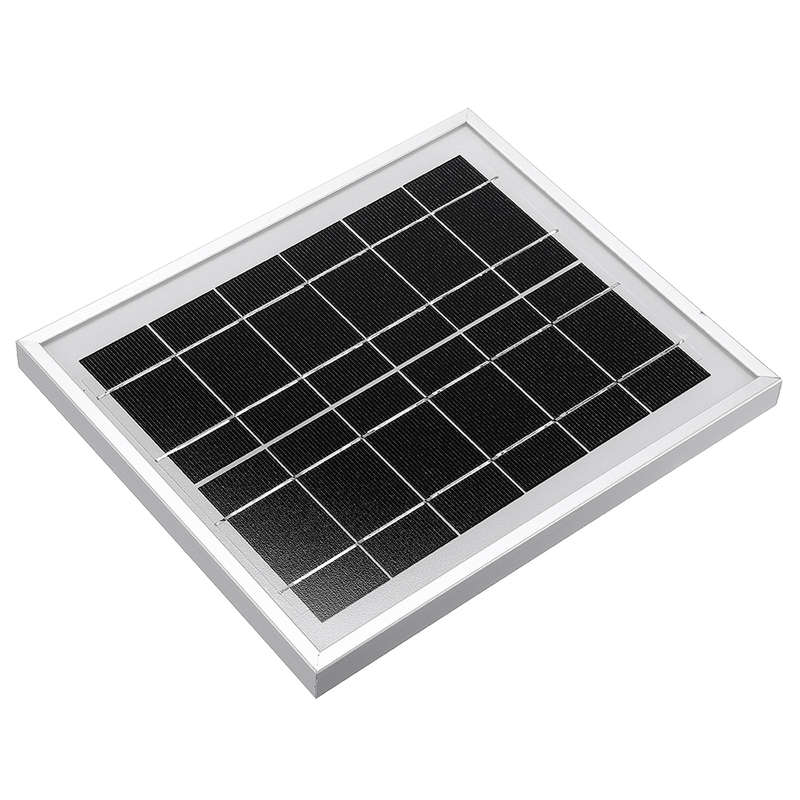

Solar Panel 6V 5W 156 Single Crystal Silicon Cell Tempered Glass/Anodized Aluminum Alloy

Parameter: Solar cell: 156 single crystal cell Surface material: tempered glass Frame material: anodized aluminum alloy Backplane material: 0.25mm PET Product power: 5.0W &pm; 5% Working voltage: 6.0V &pm; 5% Working current: 833mA &pm; 5% (max) Open circuit voltage: 7.2V &pm; 5% Short-circuit current: 916mA &pm; 5% Applicable products: Solar Power Manager Solar panel input voltage (SOLAR IN): 6V~24V Micro USB input voltage (USB IN): 5V Pin header/USB output (USB OUT): 5V 1A Charging cut-off protection voltage: 4.2V&pm;1% Over discharge protection voltage: 2.9V&pm;1% Solar panel charging efficiency: about 78% USB charging efficiency: about 82% 3.7V battery boost output efficiency: about 86% Maximum quiescent current: <2mA Working temperature: -40a~85a Dimensions: 65.2mm 56.2mm 22.9mm
Note: The above parameters are obtained under standard conditions (1000W/m2 radiation intensity, 25a temperature, AM1.5 atmospheric quality)
Feature: Support MPPT power tracking function, can greatly improve solar energy conversion efficiency Support solar panel/power adapter/USB multiple charging methods Suitable for 6V~24V solar panel, can be accessed through DC-002 power socket or terminal On-board MPPT SET setting switch, switch to the position close to the input voltage, the charging efficiency is higher Onboard pin header and USB 5V voltage output interface in two forms for user convenience On-board large-capacity aluminum electrolytic capacitors and chip ceramic capacitors reduce ripple and work more stable Onboard 14500 battery holder and PH2.0 battery socket for easy access to a variety of 3.7V lithium batteries Various on-board status indicators for easy viewing of solar panel and battery status Onboard overcharge/overdischarge/anti-reverse connection/overtemperature/overcurrent protection circuits, stable and safe operation Package includes:
1 x Solar Panel (6V 5W) (The driver board and battery are not includes)
