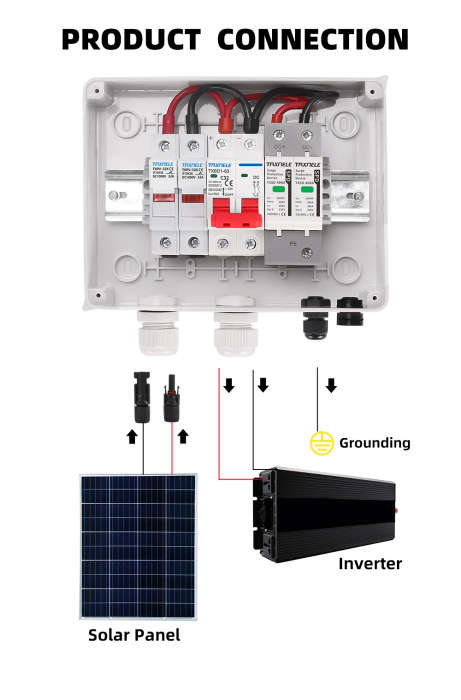

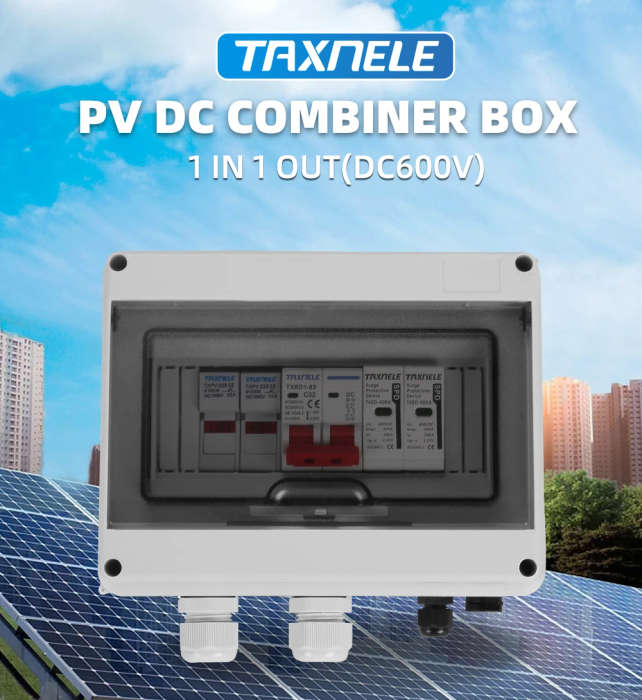

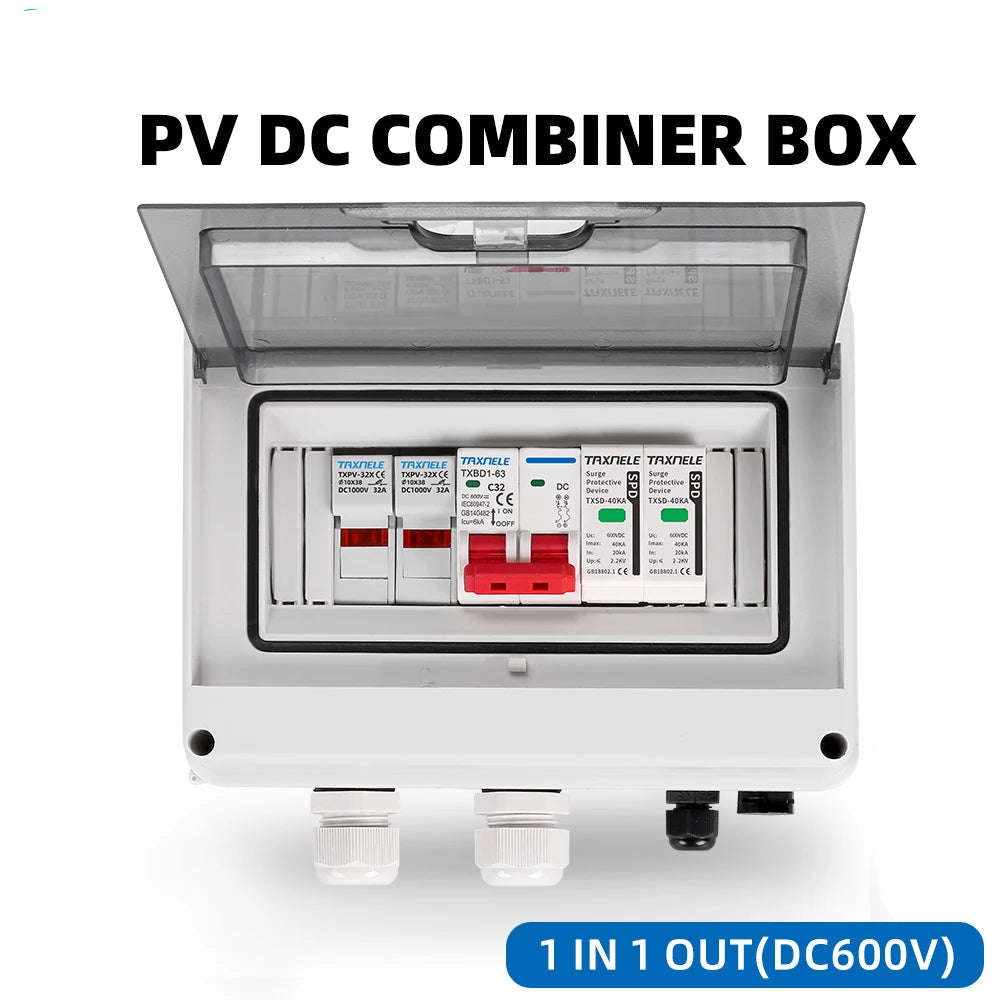

| Solar PV DC 1 in 1 Out Combiner Box | |
| Rated voltage of photovoltaic system | DC 600V |
| Max input amp for each string | 15A |

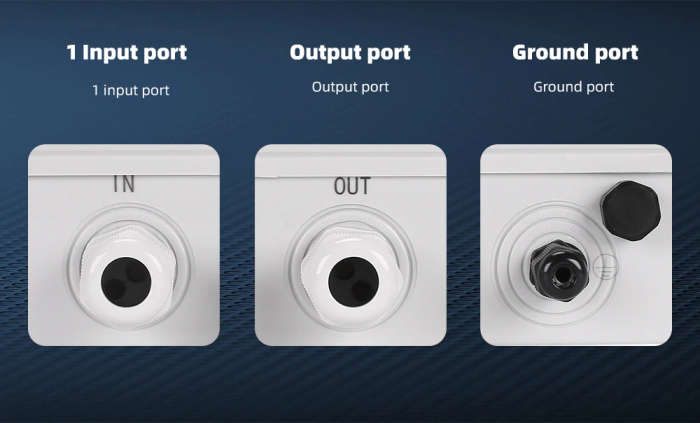

| Input strings | 1 |
| output strings | 1 |

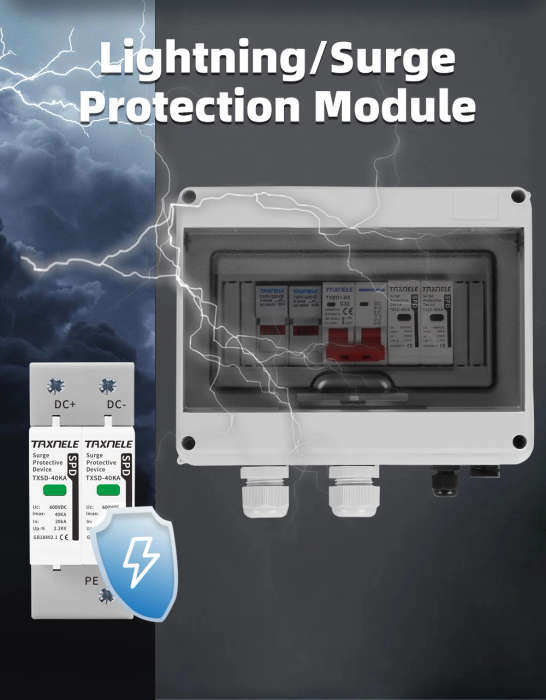

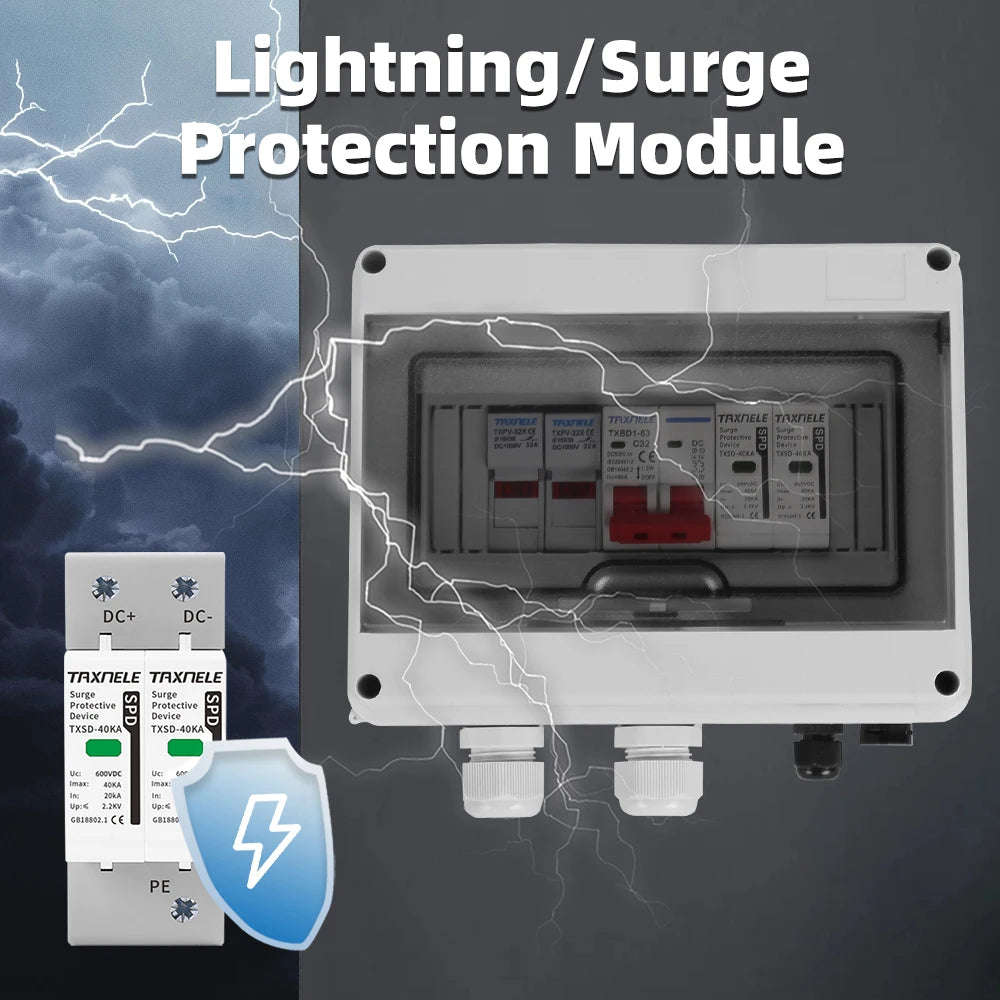

| Surge Lighting protection | |
| Category of test | II grade protection |
| Nominal discharge amp | 20KA |
| Max discharge amp | 40KA |
| Volt protection level | 3.2KV |
| SPD Max operation voltage | DC 600V |
| Poles | 2P |
| Structure characteristic | Plug push module |
| System | |

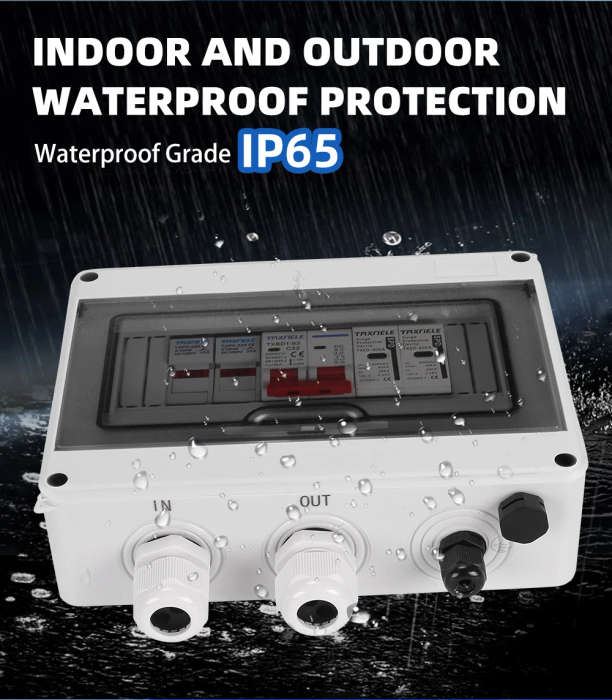

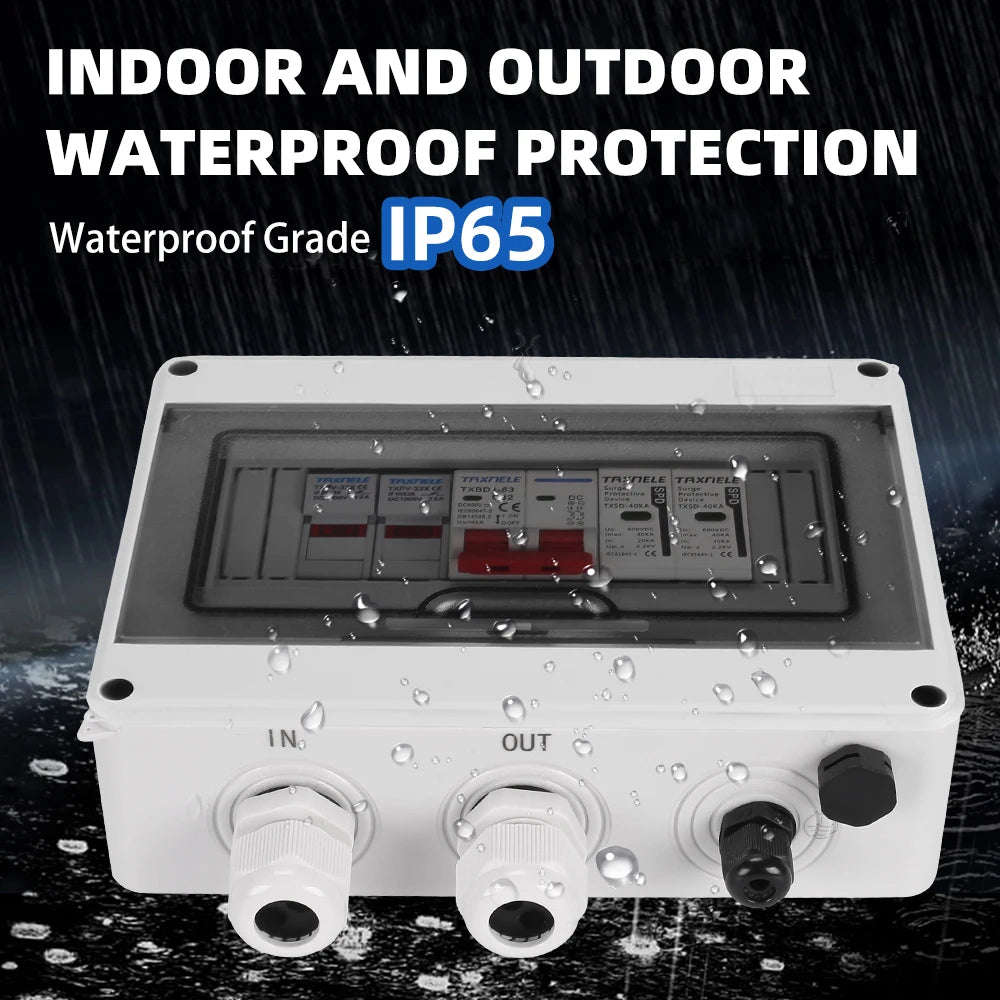

| Protection grade | IP65 |

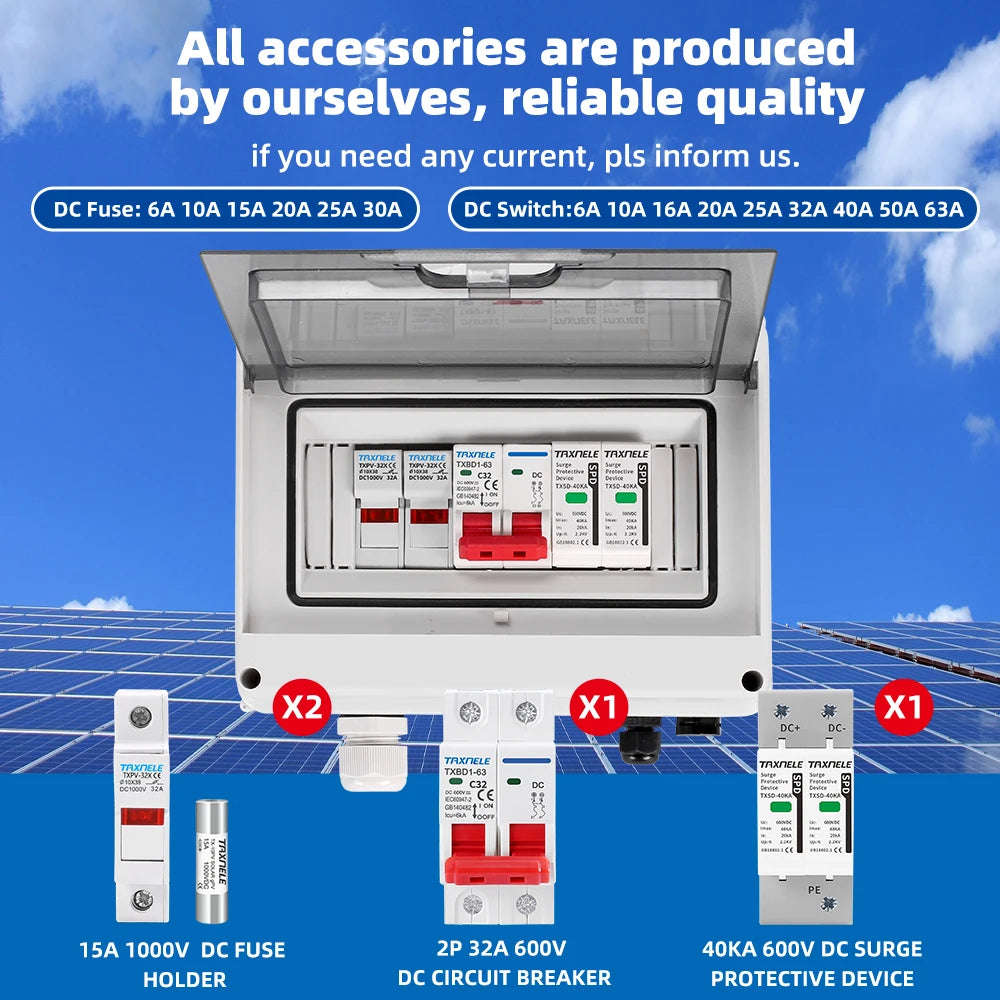

| Output switch | DC circuit breaker |
| Box material | PVC |
| Installation method | Wall mounting type |
| Operating temperature | -25-+60 |
| Installation | indoors/outdoors |
| Mechanical Parameter | |

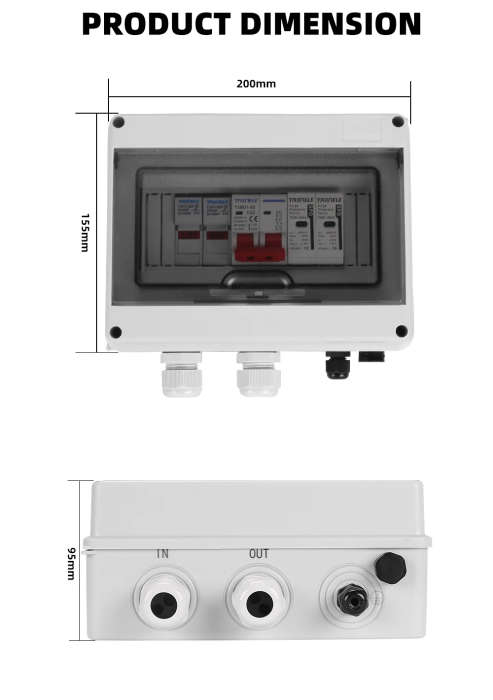

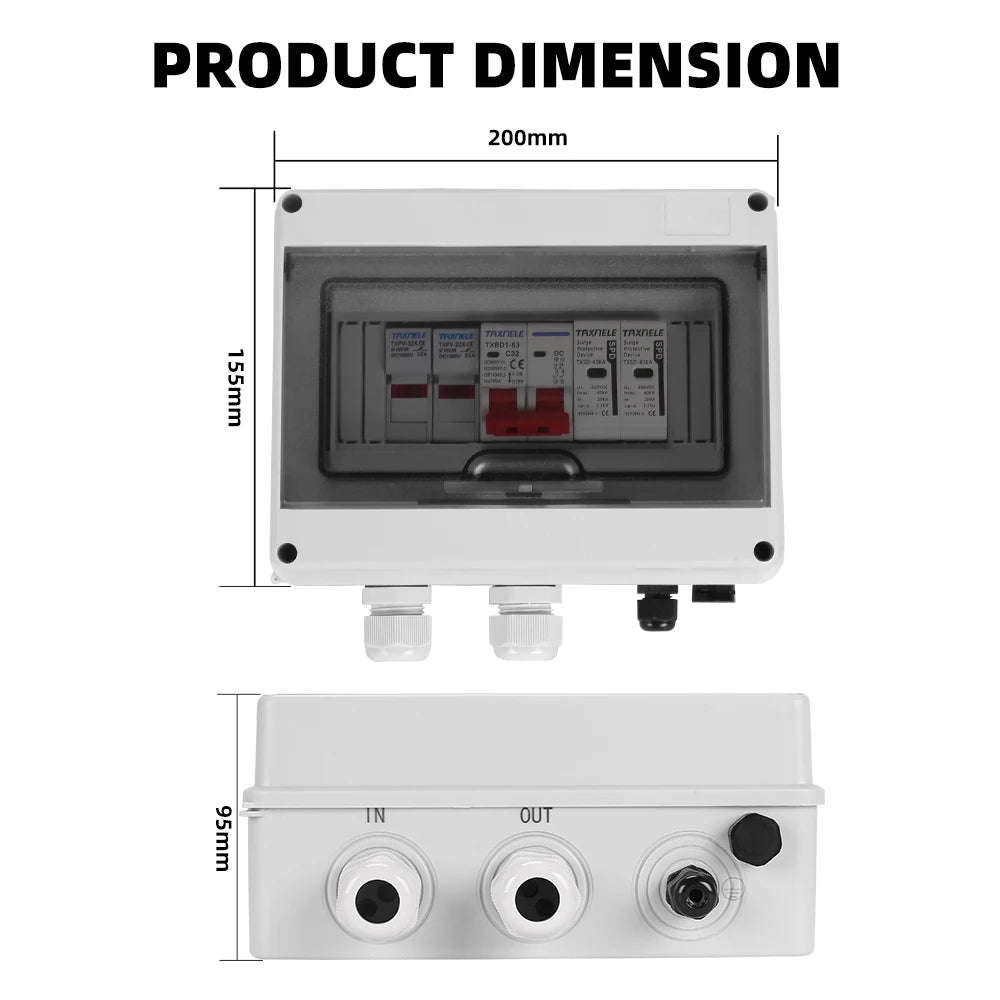

| Width*Height*Depth(mm) | 200*155*95 |
