The Aqua Max 0.75kW DC Solar Pool Pump is a solar powered pool circulation pump designed for South African pool owners who want to reduce electricity use and run their pool filtration during daylight hours. Instead of relying on standard AC grid power, this pump is designed to run directly from a suitable DC solar panel array.
Pool pumps are one of the main daily electricity users in many homes. During summer, a pool pump often needs to run for several hours a day to help circulate water through the filter. A DC solar pool pump can help reduce reliance on grid electricity by using sunlight to power daily filtration cycles.
This Aqua Max model has a 0.75kW DC motor and delivers up to 21m³/h water circulation, based on the supplied product details. It is designed for pools up to 60,000 litres and is best matched with a 3 bag sand filter, where the total dynamic head is under 14.8m.
The pump connects directly to 3 to 4 x 450W solar panels wired in series. This direct DC setup means no inverter is required when the pump is installed according to the supplied specification. Solar panels are not included, so the correct panel array must be supplied separately and installed by a qualified solar technician or electrician.
The Aqua Max 0.75kW DC Solar Pool Pump uses variable speed technology, adjusting from 1000 to 3000 RPM according to available sunlight. During stronger sunlight, the pump can run at a higher speed. During lower sunlight, speed may reduce. This makes it suitable for daytime filtration cycles where solar input changes through the day.
This pump is especially useful in South Africa where electricity costs, daytime load shedding and long summer filtration cycles are common concerns for pool owners. Because it operates during daylight hours, it can keep the pool circulating during the part of the day when sunlight is available and when daily filtration is normally most useful.

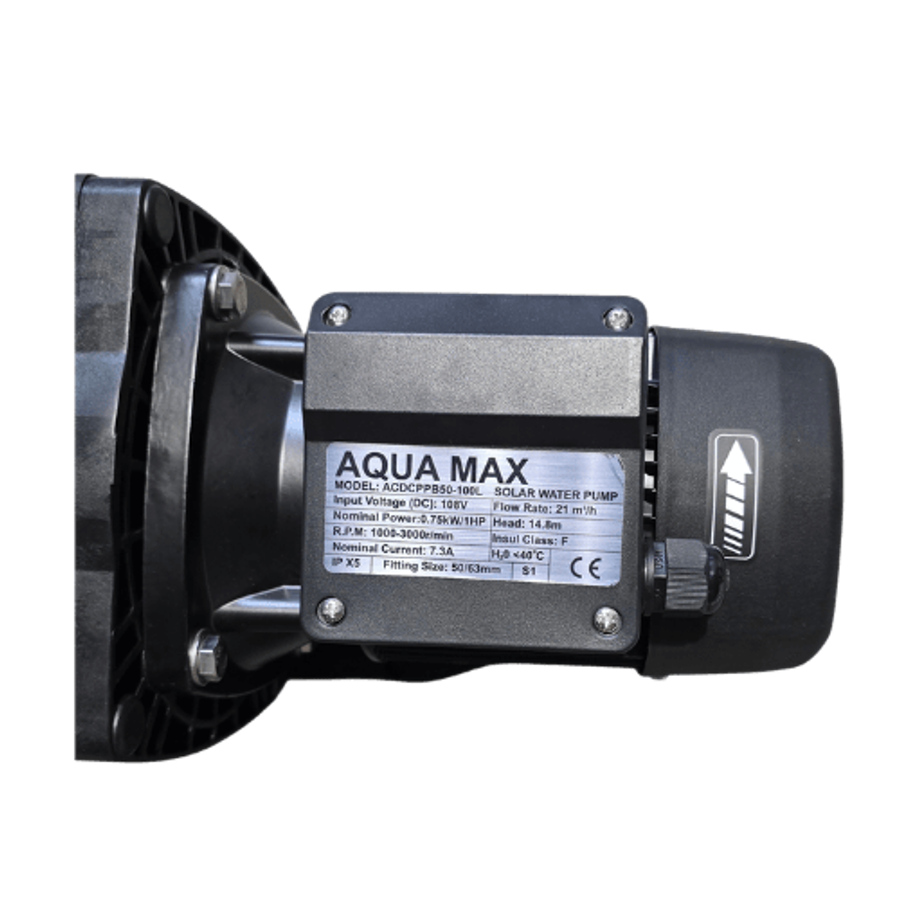

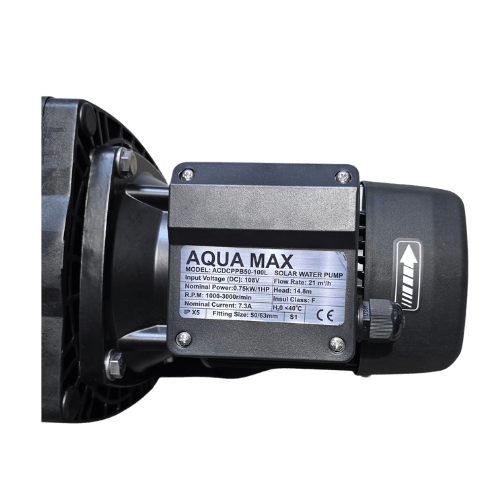

The pump has an IPX5 water resistance rating and Class F insulation, based on the supplied product information. These features support outdoor pool equipment use, but correct installation and protection are still important. The pump must be placed in a suitable pump area, protected from flooding, installed with correct plumbing and connected only to the correct DC solar supply.
This is not a hybrid mains and solar pump unless a separate supplier approved control system states otherwise. The supplied information clearly states DC power only and warns that the pump must not be connected to AC mains power. Professional installation is strongly recommended.
FAQs
What is the Aqua Max 0.75kW DC Solar Pool Pump?
The Aqua Max 0.75kW DC Solar Pool Pump is an off grid solar pool pump designed to run directly from suitable DC solar panels during daylight hours. It circulates pool water through the filtration system without needing a standard AC grid power connection.
What pool size is this pump suitable for?
The supplied information lists this pump for pools up to 60,000 litres when correctly matched with the pool filter, pipework and total dynamic head.
What filter should this pump be used with?
The supplied information recommends pairing this pump with a 3 bag sand filter.
What is the flow rate?
The supplied product title lists a flow rate of 21m³/h.
How many solar panels does this pump need?
The supplied information states that the pump requires 3 to 4 x 450W solar panels, wired in series.
Are solar panels included in the box?
No. Solar panels are not included. They must be purchased separately and matched correctly to the pump.
Does this pump need an inverter?
No. The pump is designed for direct DC connection to suitable solar panels, so an inverter is not required when installed according to the supplied specification.
Can the pump run during load shedding?
Yes, during daylight hours and with enough solar input, the pump can operate independently from the grid. It does not rely on Eskom power when correctly connected to the solar panel array.
Will the pump run at night?
No. The supplied information states that this pump operates during daylight hours only. It is intended for daytime filtration cycles.
Can I connect this pump to AC mains power?
No. This pump is designed exclusively for DC solar input. Do not connect it to AC mains power.
What does variable speed operation mean?
The pump can adjust speed between 1000 and 3000 RPM based on available sunlight. Strong sunlight can support higher speed operation, while weaker sunlight may result in slower operation.
What does total dynamic head under 14.8m mean?
Total dynamic head refers to the resistance created by pipe length, pipe diameter, bends, height difference, filter resistance and fittings. The supplied information recommends this pump for pipe runs where total dynamic head is under 14.8m.
Does this pump reduce electricity costs?
It can reduce grid electricity use because it runs from suitable solar panels during daylight hours. Actual savings depend on installation, sunlight, filtration schedule, panel sizing and how the pool was previously operated.
Does the pump need professional installation?
Yes. Installation by a qualified solar technician or electrician is recommended, especially because the system uses DC solar power and must be wired correctly.
What is included in the box?

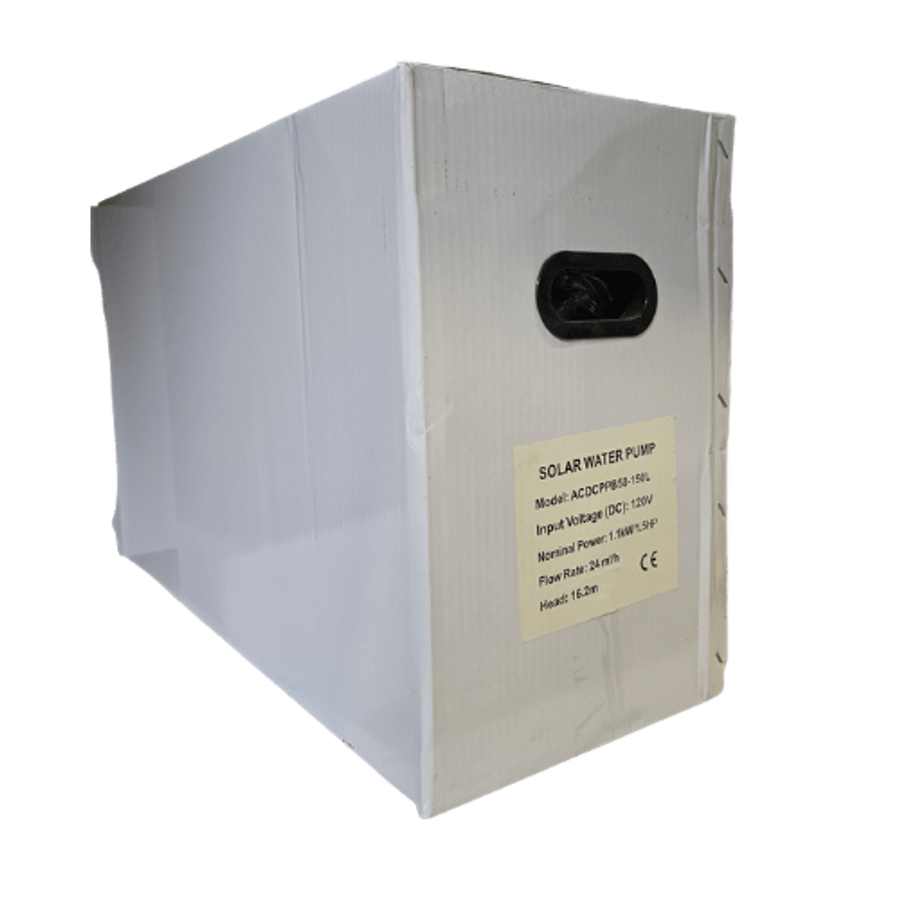

The supplied information lists 1 x Aqua Max 0.75kW DC Solar Pool Pump and 1 x user manual.
Key Features & Benefits
- 0.75kW DC solar pool pump
- Designed for off grid daytime pool circulation
- 21m³/h water circulation
- Suitable for pools up to 60,000 litres
- Recommended for 3 bag sand filter systems
- Runs directly from compatible solar panels
- No inverter required when installed as specified
- Recommended panel setup: 3 to 4 x 450W solar panels in series
- Variable speed operation fro...
