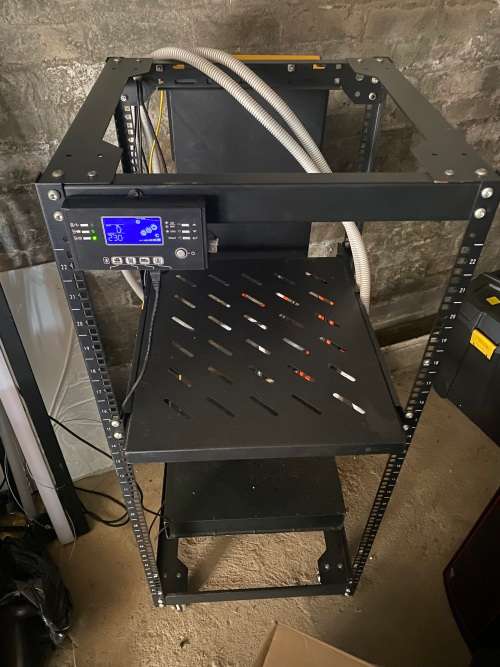

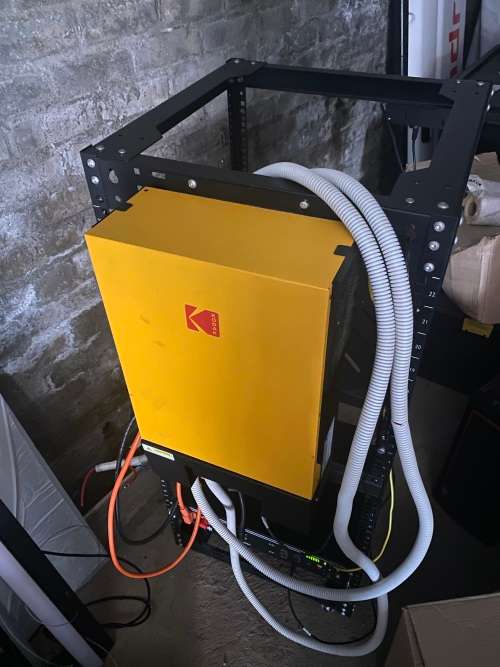

Was used in our Office from 2019 and closed now end of May 2023. Only drained battery around 40 - 50% at time of use. System in 100% working condition, battery's still very new.
| Specification | KODAK Off-Grid Hybrid Inverter ( OG-PLUS5.48 ) | Pylon US2000 Li-Ion Battery |
|---|---|---|
| Product Code | N/A | Pylon US2000 |
| Rated Power | 5000W | N/A |
| Nominal Voltage | N/A | 48V |
| Nominal Capacity | N/A | 50Ah |
| Min PPT Voltage | 60V | N/A |
| Max PPT Voltage | 115V | N/A |
| Max Input Voltage | 145V | N/A |
| Max DC Power | 4000W | N/A |
| Max AC Power | 5250W | N/A |
| Surge AC Power | 10000W | N/A |
| Max DC Current | 60A | N/A |
| Max DC Inputs | 1 | N/A |
| MPPT Quantity | 1 | N/A |
| Euro Efficiency | 93% | N/A |
| Weight | 15.3kg | 24kg |
| Dimension (mm) | N/A | 44041089 |
| Discharge Voltage | N/A | 45 ~ 54V |
| Charge Voltage | N/A | 52.5 ~ 54V |
| Peak Discharge Current | N/A | 5kW@15s |
| Peak Charge Current | N/A | 5kW@15s |
| Communication | Bluetooth, RS485 | RS232, RS485, CAN |
| Charging Temperature | N/A | 0°C to 50°C |
| Discharging Temperature | N/A | -10°C to 50°C |
| Shelf Temperature | N/A | -20°C to 60°C |
| Certification | N/A | TUV / CE / UN38.3 |
| Design Life | N/A | 10+ Years (at 25°C) |
| Cycle Life | N/A | >6000 (80% DoD) |
| Unique Features | Built-in Bluetooth for mobile monitoring, Detachable LCD control module with multiple communications, Supports USB On-the-Go function, Reserved communication port for BMS (RS485), Parallel operation up to 9 units, Robust UPS for essential loads with zero transfer time | N/A |
