Solar PV Combiner Box2-1
Sold

Solar PV Combiner Box2-1

108 were available / new
Indicative market price: R2,799.00
R2,499.00
11% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
There are various locker and counter collection points across South Africa.
View locations
The seller has indicated that they will usually have this item ready to ship within 8 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Get it now, pay later

Product details

Condition
New
Location
South Africa
Customer ratings:
Product code
PV combiner box 2-1
Bob Shop ID
597691527

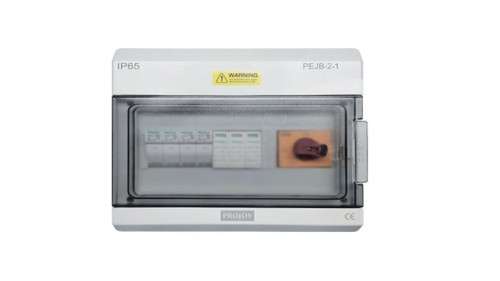

  • Projoy Solar PV Combiner Box PEJB-2-1
  • Model PEJB-2-1
  • Used for residential, C&I scenario PV plants for combining DC strings, protecting DC components.
  • For PV modules/DC cable & convenient system maintenance purpose.
  • Input: 2 String
  • Output: 1 String
  • Maximum Voltage: 1000V
  • Maximum DC Short Circuit Per Input: 16A
  • Maximum Current: 32A
  • Enclosure:
    • Material Type: Polycarbonate/ABS
    • Degree of Protection: IP65
    • Degree of Resistance to Impacts: IK10
  • DC Switch Disconnector:
    • Rated Insulation Voltage (Ui): 1000V
    • Rated Current(Ie): 32A
    • Category: DC21B/PV1
    • Standard Compliance with IEC60947-3
    • Certification: UL, TUV, SAA, CE, CB
  • DC Surge Arrestor:
    • Maximum Operation Voltage (Ucpv): 1000V
    • Standard Compliance with IEC 61643-11/EN61643-31
    • Maximum Discharge Current: 40KA
    • Type: T2
    • Certification: TUV, CE, CB
  • DC Fuse:
    • Rated Working Voltage: 1000V
    • Rated Working Current: 16A
    • Fuse Link: 10 x 38 mm
    • Certification: CB, CE
  • Environment:
    • Operating Temperature: -20°C to 60°C
    • Humidity: 99%
    • Altitude: 2000M
    • Installation: Wall Mounting
  • Dimensions (W x H x D): 273 x 230 x 110 mm
  • Refer To Brochure For Detailed Product Specifications.
