SOLAR REGULATOR MPPT 60A 12-48 MPPT60A

Key Features:

• 60A Output Current handles higher charging capacity for larger systems

• Multi-Voltage Auto Detection supports 24V, 36V, and 48V battery banks

• Peak Efficiency >96% ensures maximum power from your panels

• Intelligent 5-Stage Charging Equalize, Boost & Float modes for optimum battery health

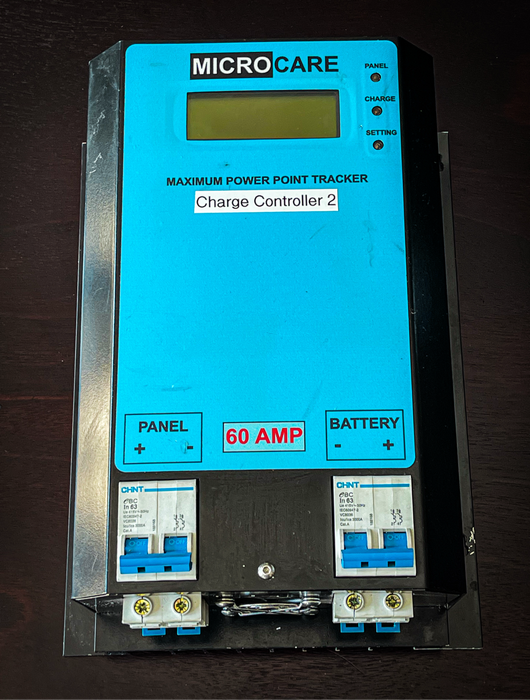

• LCD Display real-time readout of battery voltage, charge mode, panel voltage & output power

• Data Logging stores up to 63 days of solar generation history

• Programmable Relay automatically load-shed or auto-start a generator when needed

• Full Protection input/output protection, circuit breaker, and electronic current limiting

 Specifications (60A Model):

• PV Input Voltage: 20150V DC (open circuit max)

• Nominal Battery Voltage: 24V / 36V / 48V (auto/manual selection)

• Charge Algorithm: 5-stage, 3-level (Equalize/Boost/Float)

• Power Consumption: Less than 1W

• Operating Temperature: 0°C to 40°C

• Dimensions: 30 x 22 x 12cm

• Weight: 4kg
