Image Sensor HI3518E PS5280LT
Megapixel 1080P(1920x1080)
Lens 3.6mm
Min.illumination: 0.00001LUX
Day & Night mode: Colorful Day and Night Vision
Night Vision Distance: 30m Night Vision
Video compression standard H.265/H.264 Main Profile/H.264 Baseline
Video streaming: Dual streaming
Video resolution JPEG stream :(Monitoring for mobile phones)
Video frame rate: 18fps (PAL 50HZ). 20fps(NTSC 60HZ)
Image settings Brightness,saturation,contrast,Sharpness,Exposure,flip,mirror
Image enhancement Backlight compensation, automatic white balance
Digital WDR, 3D digital noise reduction
Audio compression standard: G.711
Audio Input Support, Built-in Microphone 20M
Audio Output Support, Built-in Loud Speaker 3W
Functions:
Motion detecting PIR Radar dual detection,Detection Distance 0-12M,Detect Angle 120°
Alarm PIR sensor radar both detection, Message push to APP
Storage Cloud storage (alarm video)
Local storage TF card (Max 128G)
User management Supports user and rights management
Network protocol TCP/IP,HTTP,TCP,ICMP,UDP,ARP,IGMP,SMTP,FTP
DHCP,DNS,DDNS,NTP,UPNP,RTSP etc.
Connection protocol Support ONVIF 2.1(backward compatible)
Network 4G TD-LTE,TD-LTE / LTE FDD TD-LTE / LTE-FDD

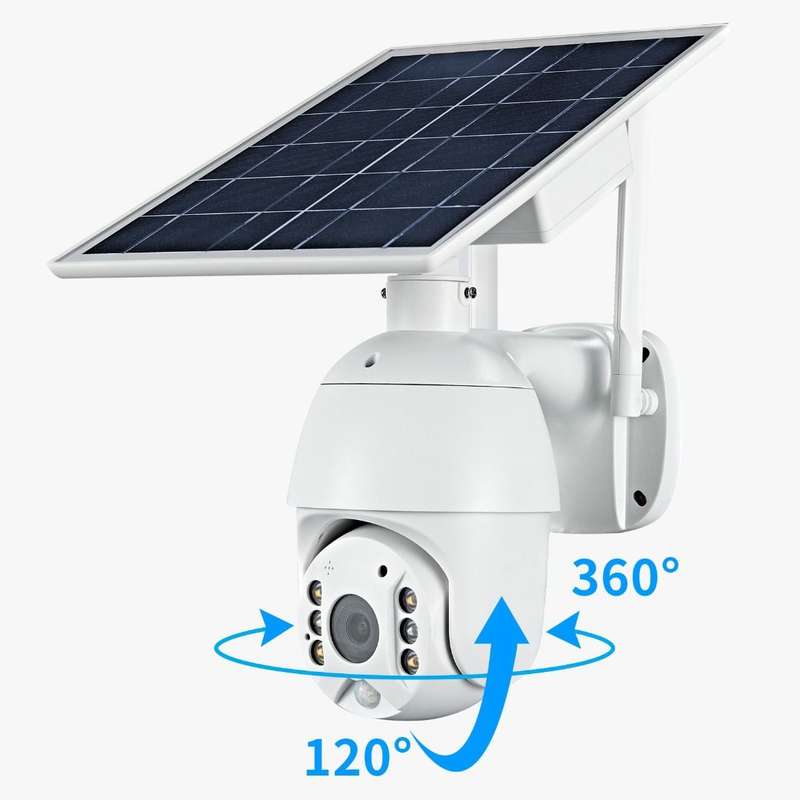

Rotation angle Horizon:0° to 360°. Vertical: 0° to 120°
Horizontal speed 1° to 55°/S
Vertical speed 1° to 40°/S
Preset Support 8 preset points, Zoom lens status can be saved
Power supply mode Solar 6x 18650 batteries
Solar Power 7.8W
Battery capacity Support 6pcs 18650 batteries
Max service rating 4W
Standby power 0.003W
Operating temperature -30 to 60 degree
Operating humidity 0% to 90%
Material Metal Housing, Outdoor Use, Waterproof IP66
Installation Rack mounting
Box size(W×D×H)(mm) 287201172 mm
*This product requires a wifi connection to operate.
What's in the box

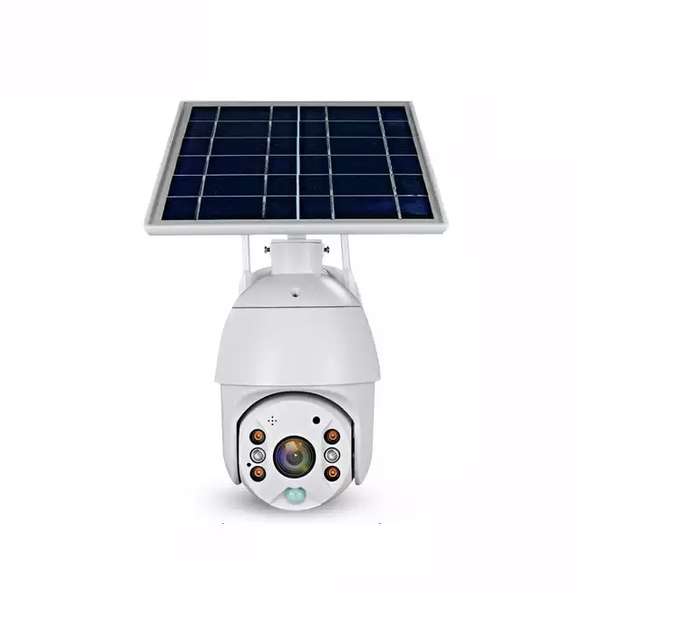

1 x Solar Wireless PTZ Camera
1 x Solar Panel
1 x Universal Panel
1 x Pack Of Screws
1 x English User Manual
6 x 18650 Batteries Included
