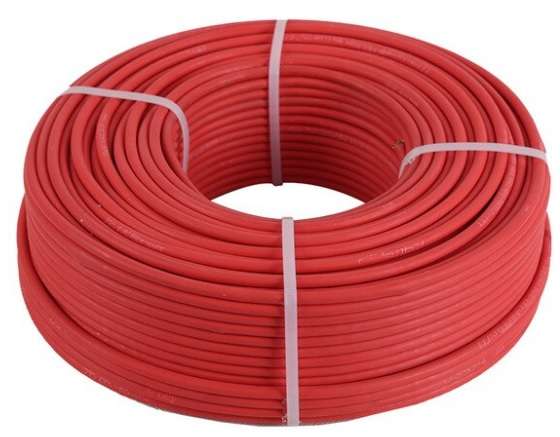

Solarix 6mm2 Single Core Solar Photovoltaic PV Cable Red 100 Metre Roll - Designed For Use To Pro...

Solarix 6mm2 Single Core Solar Photovoltaic PV Cable Red 100 Metre Roll- Designed For Use To Provide Optimal Cable Connection Between Solar Panel Cells And AC/DC Inverter Or The Mains DC Cable, Flexible Tinned Copper Conductor With Halogen Free Cross-Linked Compound Insulation And Sheath, AC Voltage Rating 600/1000VAC ,DC Voltage Rating 800/1500VDC, TUV 2-fG-1169 Compliant, Sold As 100 Metres Per Roll, Colour Red , Retail Box, No warranty

Product Overview
The Solarix 6mm2 Single Core Solar Photovoltaic PV Cable Red 100 Metre Roll is designed for the interconnection of various elements of photovoltaic systems and in particular those for installation at Direct Current (DC) side with a nominal DC voltage of up to 1.5kV between conductors as well as between conductor and earth, and not exceeding 1800VDC. Suitable for fixed installation outside and inside without protection or inside pipes, ducts or similar closed systems High resistance against ozone, U.V. rays, oils and moisture. and also for connection to the AC/DC inverter. Suitable for use at an ambient temperature up to 90°C (120°C overload) and tested according to TUV-Rheinland 2PFG 1169 Standard. The estimated lifetime of these cables is at least 15 years.



Specifications
 Stock Code SOLPV6MMRED
 Description Solarix 6mm2 Single Core Solar Photovoltaic PV Cable Red 100 Metre Roll
 Inner Conductor: Flexible Tinned Copper Wire
 Photovoltaic Power Cables, Halogen Free, Flame Retardant and High Temperature Resistance
 Used As Photovoltaic Cable Between Solar Modules And AC/DC Inverters
 Photovoltaic System With A Rated Value U0 = 1.5k VDC
 Maximum Permitted Voltage U0 =1800VDC
 Test Voltage: 6.5 kV AC 50 Hz
 Cross Sectional Area 6mm²
 Rated Current: 70 A
 Dielectric: LSZH Halogen Free Copolymer
 Working Voltage: 0.6/1.0kV AC (0.8/1.5kV DC)
 Max Voltage: 1.2kV AC (1.8kV DC)
 Bending Radius 4 x Diameter Of Cable
 Storage/Operating Temperature: -40°C to +90°C*
 Minimum Installation Temperature: -5°C
 TUV-Rheinland 2PfG 1169 Standard
 Colour Red
