Solarix 6mm2 Single Core Solar Photovoltaic PV

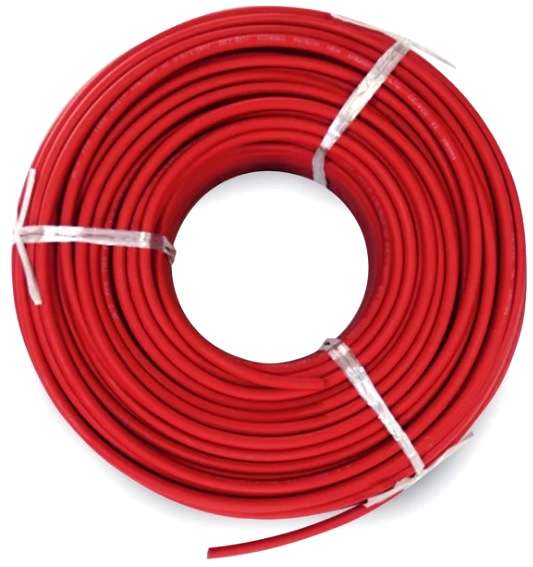

Solarix 6mm2 Single Core Solar Photovoltaic PV Cable Red 100 Metre Roll- Designed For Use To Provide Optimal Cable Connection Between Solar Panel Cells And AC/DC Inverter Or The Mains DC Cable, Flexible Aluminium Conductor , UV Protection Insulation, AC Voltage Rating 600/1000VAC ,DC Voltage Rating 800/1500VDC, Sold As 100mtres Per Roll Colour Red, Retail Box, No warranty

Product Overview
The Solarix 6mm2 Single Core Solar Photovoltaic PV Cable Red 100 Metre Roll is designed for the interconnection of various elements of photovoltaic systems and in particular those for installation at Direct Current (DC) side with a nominal DC voltage of up to 1.5kV between conductors as well as between conductor and earth, and not exceeding 1800VDC. Suitable for fixed installation outside and inside without protection or inside pipes, ducts or similar closed systems High resistance against ozone, U.V. rays, oils and moisture. and also for connection to the AC/DC inverter. Suitable for use at an ambient temperature up to 90°C (120°C overload) The estimated lifetime of these cables is at least 7 years.

Specifications
Stock Code SOLSIRPV6MMRED
Description Solarix 6mm2 Single Core Solar Photovoltaic PV Cable Red 100 Metre Roll
Inner Conductor: Flexible Aluminium Conductor
Photovoltaic Power Cables, Halogen Free, Flame Retardant and High Temperature Resistance
Used As Photovoltaic Cable Between Solar Modules And AC/DC Inverters
Photovoltaic System With A Rated Value U0 = 1.5k VDC
Maximum Permitted Voltage U0 =1800VDC
Test Voltage: 6.5 kV AC 50 Hz
Cross Sectional Area 6mm²
Rated Current: 70 A
Working Voltage: 0.6/1.0kV AC (0.8/1.5kV DC)
Max Voltage: 1.2kV AC (1.8kV DC)
Bending Radius 4 x Diameter Of Cable
Storage/Operating Temperature: -40°C to +90°C*
Minimum Installation Temperature: -5°C
Colour Red
