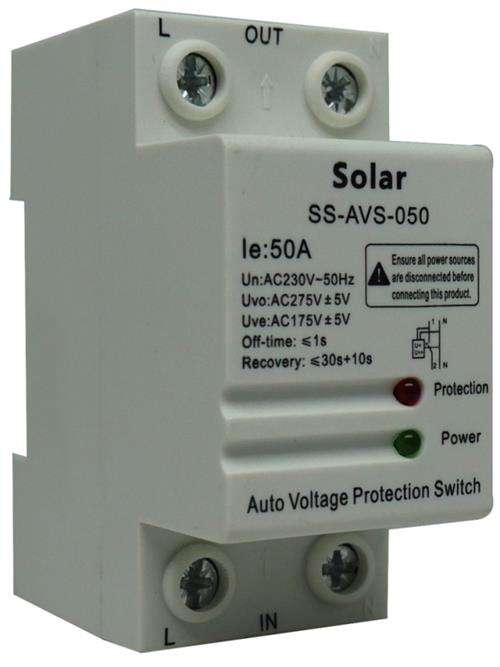

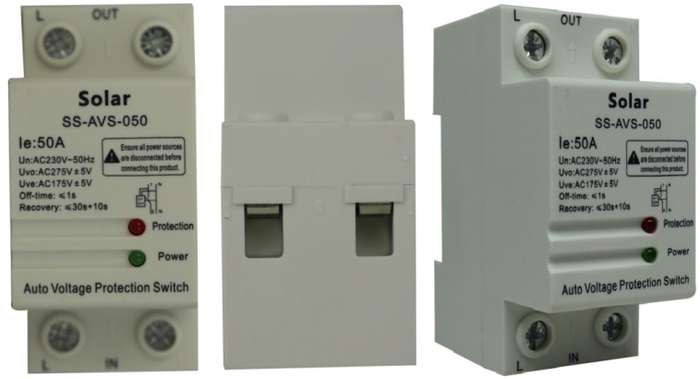

Solarix Auto Voltage Protection Switch- Din Rail Mount

Product Overview
The Solarix Automatic Voltage Protection Switch is designed for single phase installation and mainly used for the protection of over-voltage, under-voltage, or over-current in the distribution line of residential household boxes or the protection of single-phase power equipment. Its main feature is overvoltage or Under voltage in the line, overcurrent condition, the product can cut off the power supply instantaneously, protect the electrical equipment from being damaged; when the line voltage returns to normal, the protector can automatically turn on the power supply normally. The automatic overvoltage protection device is suitable for single-phase AC voltage 230V, 50/60Hz.



Specification
 Stock Code SOLSSAVS050
 Description Solarix Auto Voltage Protection Switch
 Product Type 35mm Din Rail Mount Automatic Voltage Protection Switch
 Passing Current Maximum 50A
 Rated AC Voltage 230VAC, Frequency 50Hz
 Over-voltage Cut-off Value 275VAC
 Under-Voltage Cut-Off Value175VAC
 Recovery Time  Automatic Recovery Function
 Over and Under Voltage Protection
 Single Phase Installation
 Colour White
