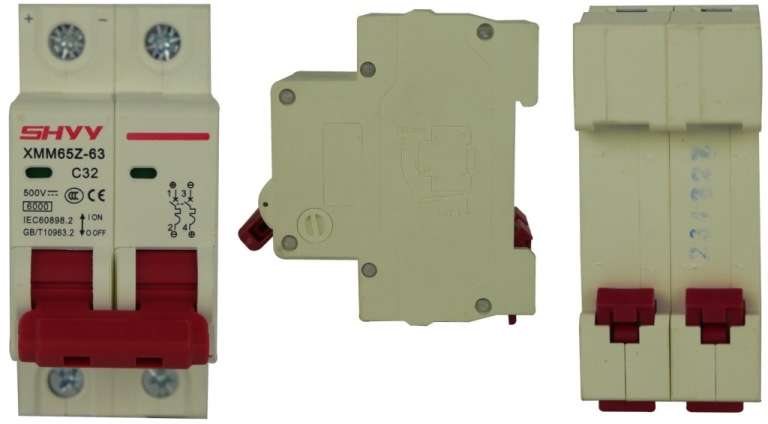

Solarix DC Series 2 Pole 32A Solar PV Cell Air

Solarix DC Series 2 Pole 32A Solar PV Cell Air Switch Mini Circuit Breaker-35 mm Din Rail Circuit Breaker, Rated DC Current Up To 32A, Number Of Poles: 2P, Rated Voltage Up to 500V, High Breaking Capacity: 6000A, Mechanical Service Life: 9000 Times, Overload Protection, Short Circuit Protection, Overcurrent Tripper, Installer OEM Bag, Retail Box, No warranty

Product Overview
The  Solarix SHYY DC Series 2 Pole 32A Solar PV Cell Air Switch Mini Circuit Breaker is designed to provide overload protection, short circuit protection compatible with DC circuits or Solar PV equipment. This High Quality and Durability 32Amp 2 Pole DC Circuit Breaker comes with Short-Circuit and Overload protection, Control and Disconnect. Such breakers are used in low-voltage terminal distribution for industry, civil building, energy, telecommunication and construction.

Application: Wide Range Of Use, Suitable For Installation Indoors, Widely Used with Solar Panel (PV)Installations , Homes, Workshops, Hotels, Shopping Malls, Power Stations, Etc.



Specifications
 Stock Code SOLSSCB032
 Description Solarix DC Series 2 Pole 32A Solar PV Cell Air Switch Mini Circuit Breaker
 Product Type 35mm Din Rail Circuit Breaker Up To 32A Rated DC Current
 Brand SHYY XMM65Z-63 C32
 Rated Current Up To 32A, Or DC 220V
 Number Of Poles: 2P
 Mounting Support 35 mm DIN rail
 Rated Voltage Up to 500V
 Electrical Durability 4000 cycles
 High Breaking Capacity: 6000A
 Mechanical Service Life: 9000 Times
 Trigger Method: Overcurrent Tripper
 IEC60898-2 And GB10963.2 Compliant
 Warranty 3 Months
 Colour Beige
