Solarix DC Surge Protector Device - Designed To Protect And Minimize The Potential Impact Of Direct And Indirect Lightning Events on Solar Panels PV Installations, Should Be Installed On The DC Side Of The PV System, Before The Inverter, Widely Used In PV DC Combiner Box, Inverter, Controller And PV DC Cabinet, Please Do Not Use Install It With AC Circuits, Ensure Proper Earthing When Installing, Din Rail Mount Installation, Retail Box, No warranty

Product Overview

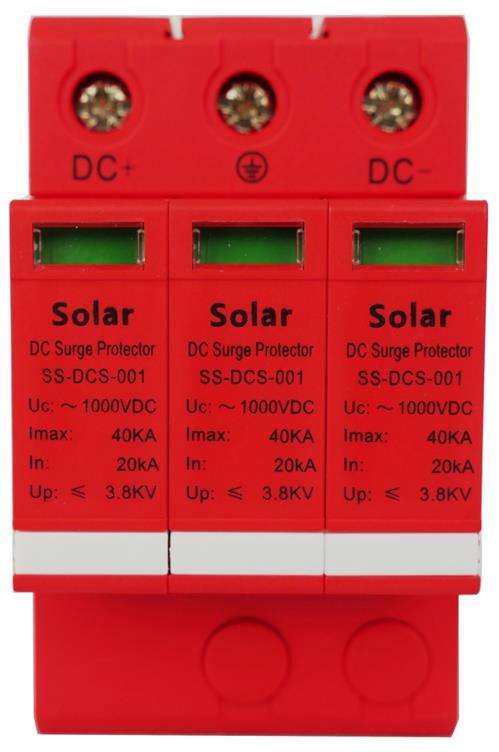

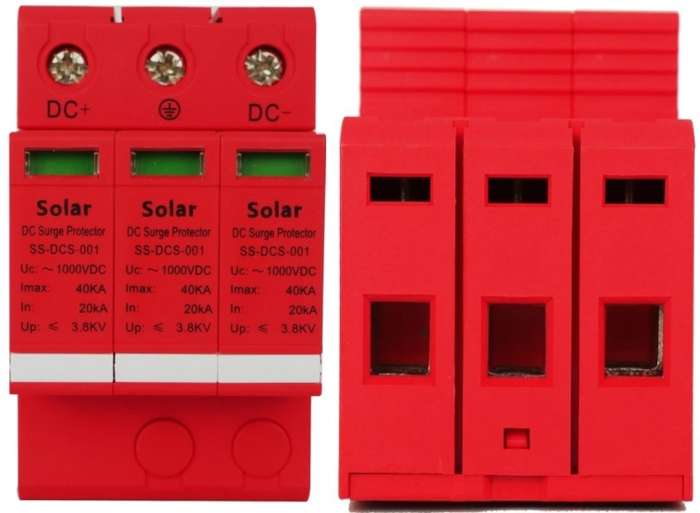

The Solarix DC Surge Protector Device is designed to protect and minimize the potential impact of direct and indirect lightning events on Solar Panels PV Installations. These units must be installed in parallel on the DC networks to be protected and provide protection. Its installed location are recommended at both ends of the DC power supply line ( solar panel side and inverter/converter side), especially if the line routing is external and long. , It is widely used widely used in PV  DC Combiner Boxes, Inverter, Controller and PV DC cabinets, Suitable For Use In All Photovoltaic Systems. Din Rail  Mount Installation.



Specifications
 Stock Code SOLSSDCS001
 Description Solarix DC Surge Protector Device
 Product Type DC Surge Protection Devices (SPD) On Solar Panels PV Installations
 Protect And Minimize The Potential Impact Of Direct And Indirect Lightning Events
 Should Be Installed On The DC Side Of The PV System
 Classified Test Type II
 Response Time Of Less Than 25ns (Nano Second)
 Nominal Discharge Current (In):20KA
 Maximum  Continuous Operating Voltage (Uc) 1000VDC
 Maximum Discharge Current (Imax.):40KA
 Maximum Voltage Protection Level( Up): 3.8KV
 Compatible With DC Circuits Only
 Please Do Not Use Install  It With AC Circuits
 Ensure Proper Earthing When Installing
 Din Rail  Mount Installation
