Solarix Dyness 48V 100Ah 4.8KWH LiFePo4 Single
Refurbished
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Free collection from
Belvedere, Hillcrest
The seller allows collection for this item and will be in contact with the full collection address once the order is ready.
Ready for collection by Tuesday, 4 June.
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 3 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Product details
Condition
Refurbished
Location
South Africa
Product code
SOLA48100
Bob Shop ID
614612105

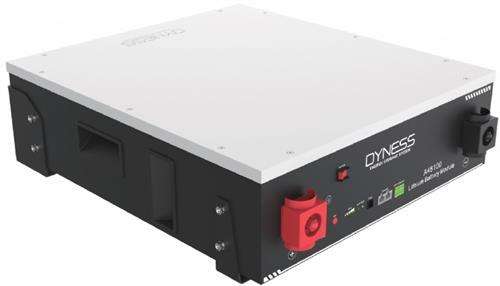

Solarix Dyness 48V 100Ah 4.8KWH LiFePo4 Single Battery Module- Advanced BMS With Current Limiting Factor, Battery Module Voltage_ 48V, Rated Capacity 100Ah, Maximum Charge Current 75A, Maximum Continuous Discharging 75A, Charging Cut-Off Voltage 54v, Easy Wall or Floor Standing Mount And Shelf Rack Installation, Communication CAN / RS485, Design To Work Perfectly Hybrid Invertors Up To 8KVA, 6000 Cycles Life, Retail Box, 5 Year Limited Warranty
Product Overview
The Solarix Dyness A48100 Branded 48V 100Ah 4.8KWH LiFePo4 Single Battery Module is a Wall or Floor Mount and Shelf Rack Installation complete that is perfect for medium to large residential installation with a proven Lithium Iron Phosphate (LifePO4) chemical composition solution that offers a low internal resistance with excellent continuous high current discharge performance and great lifecycle of more than 6000 at 80% DOD. Design To Work Perfectly with Hybrid Invertors Up To 8KVA. Built-in Advanced Battery Management System (BMS) with RS485 and CAN Bus communication. This is unit is designed for single use but can also be expanded in Parallel with up to 40 battery packs if more than one LiFePO4 battery is to be used. RS485 and CAN Bus fully integrates and communicates with all leading inverter brands (Growatt, SOLAX, LUXPower, DEYE, MUST, Voltronic, Victron, SMA, etc.)
Download The Datasheet Here
Highlights
Dyness 48V 100Ah 4.8KWH LiFePo4 Single Battery Module
Easy Wall or Floor Standing Mount And Shelf Rack Installation
Complete with Advanced Battery Management System (BMS)
Parallel Expansion Connection Up To 40 Packs With Full Communication
Nominal Voltage: 48V
Nominal Rated Capacity 100Ah
Charging Cut-off Voltage: 54.75V
Recommended C Rate: 0.5C
Recommended Continuous/Discharge Current:50A
Maximum Continuous /Discharge Current:75A
Built In Protection -Over-Charge, Over-Discharge, Over-Temperature
6000 Cycles Working Life
Dyness 48V 100Ah 4.8KWH LiFePo4 Single Battery Module
Easy Wall or Floor Standing Mount And Shelf Rack Installation
Complete with Advanced Battery Management System (BMS)
Parallel Expansion Connection Up To 40 Packs With Full Communication
Nominal Voltage: 48V
Nominal Rated Capacity 100Ah
Charging Cut-off Voltage: 54.75V
Recommended C Rate: 0.5C
Recommended Continuous/Discharge Current:50A
Maximum Continuous /Discharge Current:75A
Built In Protection -Over-Charge, Over-Discharge, Over-Temperature
6000 Cycles Working Life
Specifications
Stock Code SOLA48100
Description Solarix Dyness 48V 100Ah 4.8KWH LiFePo4 Single Battery Module
Nominal Battery Capacity: 4.8kWh 100Ah.
Nominal Battery Voltage: 48VDC.
Recommended Charge/Discharge Current: 50A.
Maximum Charge/Discharge Current: 75A
Peak Power Charge/Discharge Current 100A (15s)
Maximum Discharge Power 3.84kW
Battery Cell Quantity in series 16 Pieces
High Safety Cell Level Monitoring And Balancing
Charging Cut-off Voltage: 54.75VDC
Communication: CAN/RS485
Configuration Parallel Expansion With Up To 40 Battery Packs Maximum
Range of -20~50 wide working temperature
Dimension 558x545x190mm.
Weight: 50kg.
Stock Code SOLA48100
Description Solarix Dyness 48V 100Ah 4.8KWH LiFePo4 Single Battery Module
Nominal Battery Capacity: 4.8kWh 100Ah.
Nominal Battery Voltage: 48VDC.
Recommended Charge/Discharge Current: 50A.
Maximum Charge/Discharge Current: 75A
Peak Power Charge/Discharge Current 100A (15s)
Maximum Discharge Power 3.84kW
Battery Cell Quantity in series 16 Pieces
High Safety Cell Level Monitoring And Balancing
Charging Cut-off Voltage: 54.75VDC
Communication: CAN/RS485
Configuration Parallel Expansion With Up To 40 Battery Packs Maximum
Range of -20~50 wide working temperature
Dimension 558x545x190mm.
Weight: 50kg.
