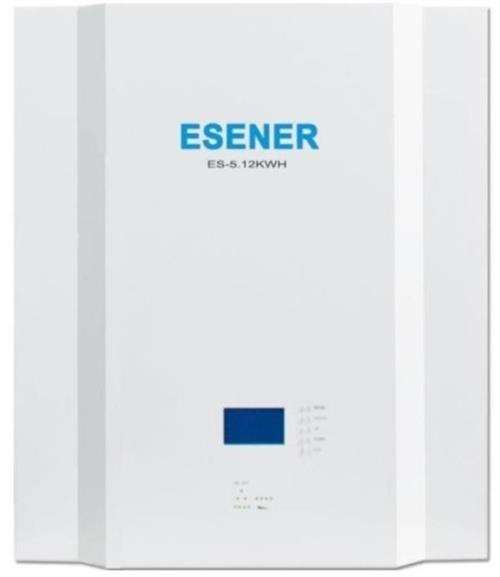

Solarix Esener 51.2V 100Ah LiFePo4 Single Battery Module-LCD Control Panel, Advanced BMS With Current Limiting Factor, Normal Voltage: 51.2V, Rated Capacity (5HR):110Ah, Total Usable 4.8 kWh, Maximum Continuous Charging 100A , Maximum Continuous Discharging 100A, Equalised Charge Voltage: 58.4V, Discharge Cut-off Voltage: 40.0V, Easy Wall Mount Or Shelf Rack Installation, Design To Work Perfectly Hybrid Invertors Up To 7KVA, Retail Box , 1 year Limited Warranty Product Overview The Solarix Esener 51.2V 100Ah LiFePo4 Single Battery Module is a Wall Mount Or Shelf Rack Installation complete with integrated Battery Management System that is perfect for medium to large residential installation with a proven Lithium Iron Phosphate (LifePO4) chemical composition solution that offers a low internal resistance with excellent continuous high current discharge performance and great lifecycle of more than 6000 at 80% DOD. Design To Work Perfectly with Hybrid Invertors Up To 7KVA .Built-in Intelligent Battery Management System (BMS) with RS485 and CAN Bus BMS communication. This is unit is designed for single use but can also be connected in Parallel with up to 15 battery packs to a total of 72kWh. Batteries must be connected in parallel if more than one LiFePO4 battery is to be used. CAN Bus, fully integrates and communicates with leading inverter brands (Growatt, SOLAX, LUXPower, DEYE, MUST, Voltronic, Victron, SMA, etc.) Highlights Esener 51.2V 100Ah LiFePo4 Single Battery ModuleWall Mount Or Shelf Rack Installation With Brackets Included Complete with integrated Battery Management System (BMS)Advanced BMS With Current Limiting FactorParallel Connection Up To 15 Packs With Full Communication To A Total Of 72kwhNormal Voltage: 51.2VRated Capacity (5HR):110AhTotal Usable 4.8 kWhMaximum Continuous Charging Current: 100AMaximum Continuous Discharging Current: 100AEqualised Charge Voltage: 58.4VLow Self-DischargeHigh Energy Density and Conversion EfficiencyBuilt In Protection -Over-Charge, Over-Discharge, Over-TemperatureLCD Control Panel Specifications Stock Code SOLES51LB100ADescription Solarix Esener 51.2V 100Ah LiFePo4 Single Battery ModuleComplete with integrated Battery Management SystemRated Capacity (5HR): 110AhVoltage: 51.2VDischarge Cut-off Voltage: 40.0VEqualised Charge Voltage: 58.4VMaximum Continuous Charging Current: 100AMaximum Continuous Discharging Current: 100ADisplay: LCDParallel: Parallel connection up to 15 packs with full communicationsCells: New Li-Ion Prismatic CellsDesign Life: -/+ 15 YearsCycle Life @ 1C: +/-4000 Cycles @ 100% DOD, Above 6000 cycles @ 80% DODPorts: 1x CAN Bus, 1x RS-485 Battery Link ports, 2x Parallel Instruction PortsProtection: Electronic Circuit Breaker, BMS Voltage Protection, Current LimitingDimensions (WxDxH): 505mm x 162mm x 543mmWeight: Approx. 46kg
