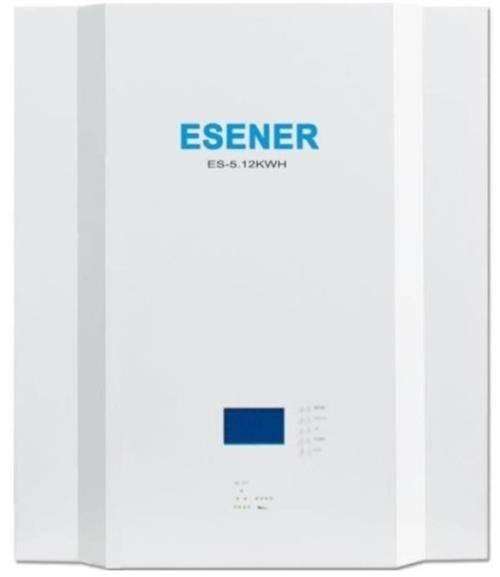

Solarix Esener 51.2V 100Ah LiFePo4 Single Battery Module-LCD Control Panel, Advanced BMS With Current Limiting Factor.
Solarix Esener 51.2V 100Ah LiFePo4 Single Battery Module-LCD Control Panel, Advanced BMS With Current Limiting Factor, Normal Voltage: 51.2V, Rated Capacity (5HR):110Ah, Total Usable 4.8 kWh, Maximum Continuous Charging 100A , Maximum Continuous Discharging 100A, Equalised Charge Voltage: 58.4V, Discharge Cut-off Voltage: 40.0V, Easy Wall Mount Or Shelf Rack Installation, Design To Work Perfectly Hybrid Invertors Up To 7KVA, Retail Box, 1 Year Limited Warranty.
Product Overview
The Solarix Esener 51.2V 100Ah LiFePo4 Single Battery Module is a Wall Mount Or Shelf Rack Installation complete with integrated Battery Management System that is perfect for medium to large residential installation with a proven Lithium Iron Phosphate (LifePO4) chemical composition solution that offers a low internal resistance with excellent continuous high current discharge performance and great lifecycle of more than 6000 at 80% DOD.
Designed To Work Perfectly with Hybrid Invertors Up To 7KVA.
Built-in Intelligent Battery Management System (BMS) with RS485 and CAN Bus BMS communication.
This is unit is designed for single use but can also be connected in Parallel with up to 15 battery packs to a total of 72kWh.
Batteries must be connected in parallel if more than one LiFePO4 battery is to be used.
CAN Bus, fully integrates and communicates with leading inverter brands (Growatt, SOLAX, LUXPower, DEYE, MUST, Voltronic, Victron, SMA, etc.)
Highlights
Esener 51.2V 100Ah LiFePo4 Single Battery Module
Wall Mount Or Shelf Rack Installation With Brackets Included
Complete with integrated Battery Management System (BMS)
Advanced BMS With Current Limiting Factor
Parallel Connection Up To 15 Packs With Full Communication To A Total Of 72kwh
Normal Voltage: 51.2V
Rated Capacity (5HR):110Ah
Total Usable 4.8 kWh
Maximum Continuous Charging Current: 100A
Maximum Continuous Discharging Current: 100A
Equalised Charge Voltage: 58.4V
Low Self-Discharge
High Energy Density and Conversion Efficiency
Built In Protection -Over-Charge, Over-Discharge, Over-Temperature
LCD Control Panel
Bulk Voltage 55.2V-56.8V
Float Voltage 52.8V-54.4V
Cut-off Voltage 44.0V-45.6V
Specifications
Stock Code: SOLES51LB100A
Description: Solarix Esener 51.2V 100Ah LiFePo4 Single Battery Module
Complete with integrated Battery Management System
Rated Capacity (5HR): 110Ah
Voltage: 51.2V
Discharge Cut-off Voltage: 40.0V
Equalised Charge Voltage: 58.4V
Maximum Continuous Charging and Discharging Current: 100A
Display: LCD
Parallel: Parallel connection up to 15 packs with full communications
Cells: New Li-Ion Prismatic Cells
Design Life: -/+ 15 Years
Cycle Life @ 1C: +/-4000 Cycles @ 100% DOD, Above 6000 cycles @ 80% DOD
Ports: 1x CAN Bus, 1x RS-485 Battery Link ports, 2x Parallel Instruction Ports
Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting
Dimensions (WxDxH): 505mm x 162mm x 543mm
Weight: Approx. 46kg
