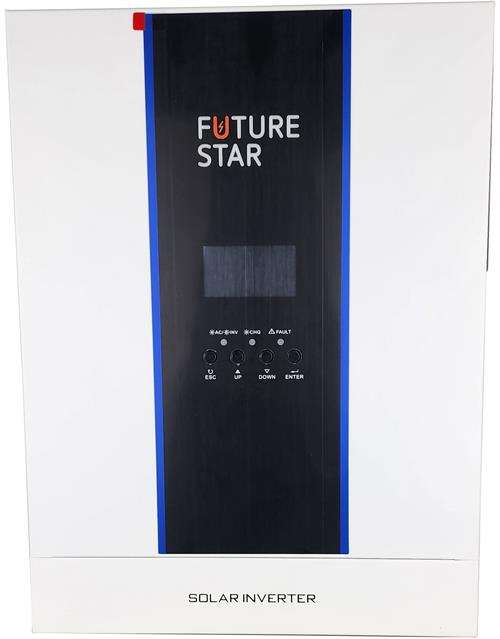

Solarix FutureStar 3500VA 24VDC Pure Sine Wave Inverter- Off-Grid Solar Inverter 60A PWM Solar Charge Controller, 3000w Rated Power, Max Watt Output 3.5kW, Peak Efficiency 90%, DC input of 24VDC, AC Output 230VAC at 50/60Hz, DC Output : 27VDC, 60A, Solar Charger Max. Charge Current : 100A, Auto Restart Function, Wall Mounting Unit, and 6 Months Warranty
Product Overview
The Solarix FutureStar 3.5KVA Pure Sine Wave Inverter is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. It's comprehensive LCD display offers user-configurable acceptable and .easy-accessible button operation such as battery charging current.AC/solar charger priority, and acceptable input voltage based on different applications.
Features
-3.55KVA 24VDC 60A Pure Sine Wave Inverter
-3000w Rated Power
-Max Watt Output 3.5kW Peak Efficiency 90%
-60A PWM Solar Charge Controller
-Voltage: 230V AC and Battery Voltage: 24VDC
-Nominal PV Voltage 100VDC
-AC Charging Current Maximum 60A
-Configurable AC Solar Charger Priority Via LCD Setting
-Configurable Input Voltage Range For Home Appliances And Personal Computers Via LCD Setting
-Configurable Battery Charging Current Based On Applications Via LCD Setting
-Configurable AC Solar Charger Priority Via LCD Setting
-Compatible To Mains Voltage Or Generator Power
-Auto Restart While AC Is Recovering
-Overload/Over Temperature/Short Circuit Protection
-Smart Battery Charger Design For Optimized Battery Performance
-Cold Start Function
Specifications
-Product Code : SOLFS3500VA
-Description Solarix FutureStar 3500VA 24VDC Pure Sine Wave Inverter
-Product Type : Solar Inverter
-Model : 35KVA 24V Future Star
-Rated Power : 3500va
-DC Input : 24VDC, 138.9A
-AC Output : 230VAC, 50/60Hz, 13A
-Battery Type : Lithium/Gel/Lead Acid
-AC Input : 230VAC, 50/60Hz, 20 1A
-DC Output : 27VDC, 60A
-AC Output : 230VAC, 50/60Hz, 13A
-Solar Charger Max. Charge Current : 100A
-Rated Power : 3000W
-Min. Solar Voltage : 40VDC
-Max. Solar Voltage : 500VDC
-Temperature : -10 ~ 50DC
-Protective Class : I
-Degree of Protection : IP21
