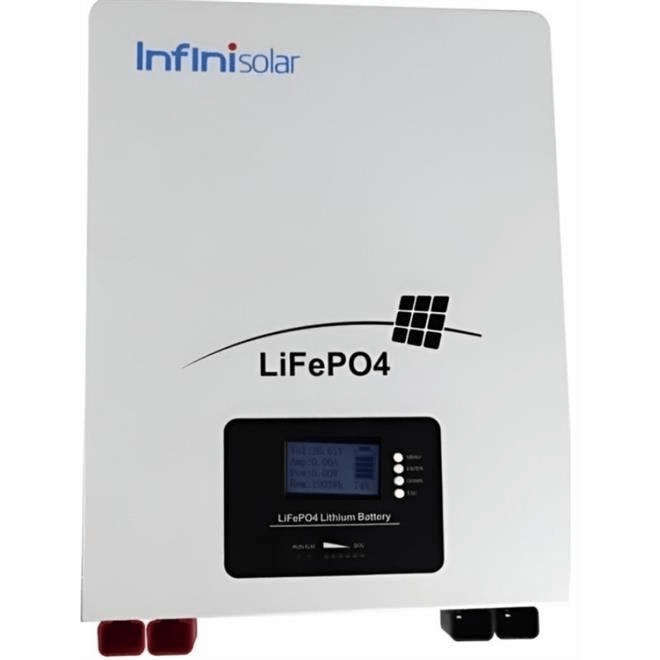

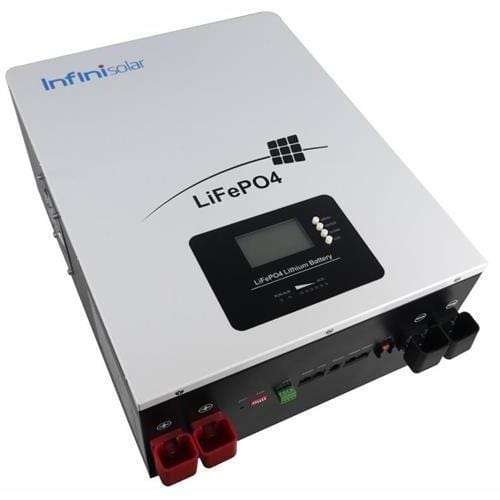

Solarix Infinisolar 25.6V 100Ah Lifepo4 Single Battery Module SOLLP1624100

The Solarix Must ( Infinisolar Branded ) 2.56 kWh 25.6V 100Ah Lifepo4 Single Battery Module is perfect for an entry level small to medium residential or business installation with a proven Lithium Iron Phosphate (LifePO4) chemical composition and great performance. Design To Work Perfectly with Hybrid Inverter system Up To 3.5KVA 24V and has a long lifespan of up to 10 years . Standard Wall Mount Design or easy installation and maintenance.

Features

• Must (Infinisolar Branded) 2.56 Kwh 25.6V 100 Ah Lithium Iron Phosphate Battery Module
• Design To Work Perfectly Hybrid Invertors Up To 3.5KVA 24V
• Built-In Protection For Over-Charge, Over-Discharge & Over-Temperature
• Long Lifespan Up To 10 Years
• Cycle Life Up to 6000 cycles - 80% DOD
• Normal Voltage 25.6V
• Rated Capacity: 100Ah
• Total Usable Energy 2.56KWh
• Voltage Range 22.0V to 29.2V
• Charge Current 100A
• Discharge Current 100A
• LCD Display and Battery Level Indicator
• Communication CAN Bus 2.0, RS232 and RS485
• Parallel Up to 15 units
• Wall Mount Chassis

Specifications

• Rated Capacity (5HR): 100Ah.
• Voltage: 25.6V.
• Total Usable Energy 2.56KWh
• Discharge Cut-off Voltage: 22.0V.
• Equalised Charge Voltage: 29.2V.
• Floating Voltage  26.4V -27.2V
• Bulk Voltage 27.6V -28.4V
• Maximum Continuous Charging Current: 100A.
• Maximum Continuous Discharging Current: 100A.
• Display: LCD Panel and Battery Level Indicator
• Ports: 2x Positive Socket, 2x Negative Socket, 1x Power switch.
• Design Life: -/+ 10 Years.
• Cycle Life - 1C: +/-2200 Cycles - 100% DOD, Up to 6000 cycles - 80% DOD.
• Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting.
• Dimensions (WxDxH): 450mm x 442mm x 140mm.
• Weight: Approx. 23kg
