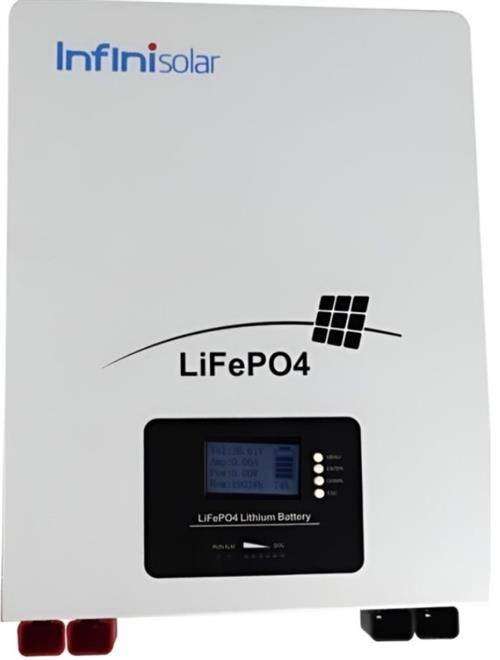

The Solarix Infinisolar 25.6V 100Ah Lifepo4 Single Battery Module is perfect for an entry level small to medium residential or business.
The Solarix Infinisolar 25.6V 100Ah Lifepo4 Single Battery Module is perfect for an entry level small to medium residential or business installation with a proven Lithium Iron Phosphate (LifePO4) chemical composition and great performance.
Highlights
Total Usable Energy 2.56KWh , Normal Voltage: 25.6V, Rated Capacity (5HR): 100 Ah, Voltage Range 22.0V to 29.2V, LCD Display and Battery Level Indicator, Continuous Charging Current: 100A, Continuous Discharging Current: 100A, Low Self-Discharge, Wall Mount Unit, Parallel Up to 15 Units, Work Perfectly Hybrid Inverters Up To 3.5KVA 24V, Colour White, Retail Box, 3 Year Limited Warranty.
Product Overview
The Solarix Must ( Infinisolar Branded ) 2.56 kWh 25.6V 100Ah Lifepo4 Single Battery Module is perfect for an entry level small to medium residential or business.
Solarix Infinisolar 25.6V 100Ah Lifepo4 Single Battery is a reliable and efficient energy storage solution with 2.56kWh usable energy, 25.6V normal voltage, and 100Ah Rated Capacity.
Ideal for residential and commercial use, featuring an LCD Display, Battery Level Indicator, and compatibility with Hybrid Inverters up to 3.5KVA 24V, and has a long lifespan of up to 10 years.
Standard Wall Mount Design or easy installation and maintenance.
Features
Must (Infinisolar Branded) 2.56 Kwh 25.6V 100 Ah Lithium Iron Phosphate Battery Module
Designed To Work Perfectly Hybrid Invertors Up To 3.5KVA 24V
Built-in Protection For Over-Charge, Over-Discharge & Over-Temperature
Long Lifespan Up To 10 Years
Cycle Life Up to 6000 cycles @ 80% DOD
Normal Voltage :25.6V
Rated Capacity: 100Ah
Total Usable Energy: 2.56KWh
Voltage Range: 22.0V to 29.2V
Charge Current: 100A
Discharge Current: 100A
LCD Display and Battery Level Indicator
Communication: CAN Bus 2.0, RS232 and RS485
Parallel Up to 15 units
Wall Mount Chassis
Specifications
Stock Code: SOLLP1624100
Description: Solarix Infinisolar Branded 2.56 Kwh 25.6V 100 Ah Lithium Iron Phosphate Battery
Rated Capacity (5HR): 100Ah
Voltage: 25.6V
Total Usable Energy: 2.56KWh
Discharge Cut-off Voltage: 22.0V
Equalised Charge Voltage: 29.2V
Floating Voltage: 26.4V -27.2V
Bulk Voltage: 27.6V -28.4V
Maximum Continuous Charging Current: 100A
Maximum Continuous Discharging Current: 100A
Display: LCD Panel and Battery Level Indicator
Ports: 2x Positive Socket, 2x Negative Socket, 1x Power switch
Design Life: -/+ 10 Years
Cycle Life @ 1C: +/-2200 Cycles @ 100% DOD, Up to 6000 cycles @ 80% DOD
Protection: Electronic Circuit Breaker, BMS Voltage Protection, Current Limiting
Dimensions (WxDxH): 450mm x 442mm x 140mm
Weight: Approx. 23kg
