Solarix Inverter 3.5Kva 24V Future Star - A Reliable 3.5Kva Solar Inverter Providing Efficient Po...

Solarix Inverter 3.5KVA 24V Future Star - A reliable 3.5KVA solar inverter providing efficient power conversion for home use, supporting multiple battery types and operating modes. It offers a rated power of 3500VA with a DC input of 24VDC and AC output of 230VAC at 50/60Hz.

Product Overview

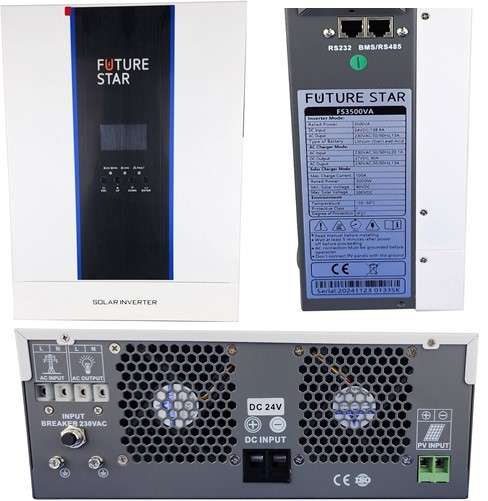

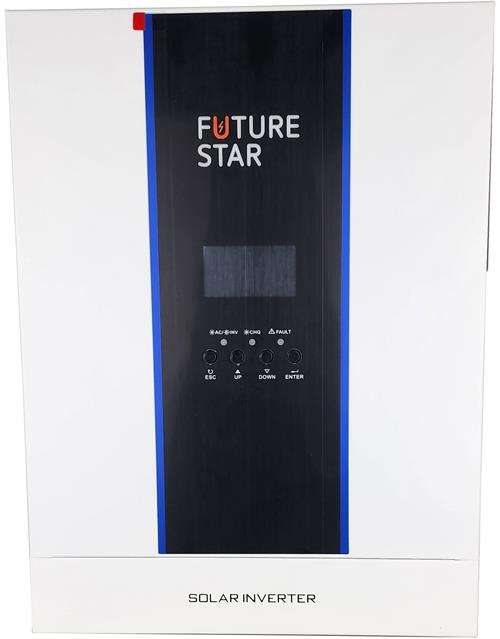

The Solarix Inverter 3.5KVA 24V Future Star is a versatile solar inverter designed to provide reliable power conversion for residential applications. It operates in multiple modes, including inverter, AC charger, and solar charger, supporting lithium, gel, and lead-acid batteries. The inverter offers a rated power of 3500VA with a DC input of 24VDC and AC output of 230VAC at 50/60Hz. It features a robust solar charger with a maximum charge current of 100A and supports solar voltages ranging from 40VDC to 500VDC. The device is designed to operate effectively in temperatures between -10°C and 50°C, ensuring reliable performance in various environmental conditions.

Specifications

Product Code : SOLFS3500VA
Product Overview : Solarix Inverter 3.5KVA 24V Future Star
Brand : Solarix
Product Type : Solar Inverter
Model : 35KVA 24V Future Star
Inveter Mode :
   Rated Power : 3500va
   DC Input : 24VDC, 138.9A
   AC Output : 230VAC, 50/60Hz, 13A
   Battery Type : Lithium/Gel/Lead Acid
AC Charger Mode :
   AC Input : 230VAC, 50/60Hz, 20 1A
   DC Output : 27VDC, 60A
   AC Output : 230VAC, 50/60Hz, 13A
Solar Charger Mode :
  Max. Charge Current : 100A
  Rated Power : 3000W
  Min. Solar Voltage : 40VDC
  Max. Solar Voltage : 500VDC
Environment :
  Temperature : -10 ~ 50DC
  Protective Class : I
  Degree of Protection : IP21
