Product information
Condition:
New
Location:
South Africa
Product code:
SOLJAM550WMR
Bob Shop ID:
606643748

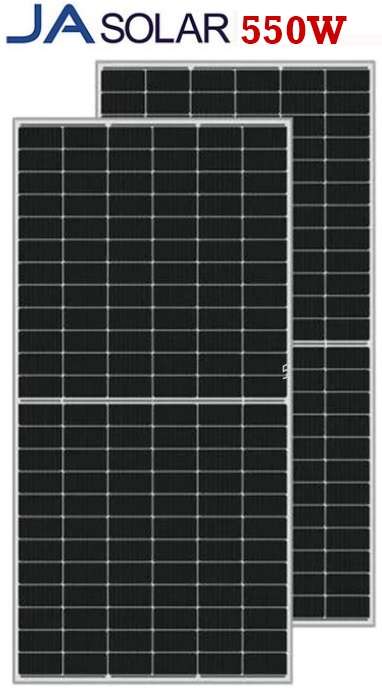

Solarix JA 550W Mono Crystalline Half Cell Solar Panel- Deep Blue Ver 3.0 Technology, 11-Busbar Half-Cut Cell, Number of Cells 144 (624), Maximum Rated Power(Pmax): 550W, Maximum Power Voltage(Vmp): 41.96VDC, Maximum Power Current(Imp): 13.11A , Junction Box: IP68, 3 Bypass Diodes, Connector: MC4, Module Efficiency: 21.3%, Open Circuit Voltage(Voc) [V]: 49.90V, Anodized Aluminium Alloy Frame, Lifespan Up To 25 Years, Retail Box, 12 Months Limited Warranty
Product Overview
The Solarix JA Solar Branded JAM72S30 550W/MR Mono Crystalline Half Cell Solar Panel with 144 cells (624) is one of the leading manufacturers in the world photovoltaic industry. Ideal for both isolated photovoltaic solar energy installations and those connected to the electricity grid. These panels stand out for their incredible quality/price ratio. The Solarix JA Solar 550W Mono Crystalline Half Cell Solar Panel can be combined with state-of-the-art lithium batteries, as well as traditional lead-acid and GEL/AGM batteries with their corresponding charge regulator to deliver superior module efficiency. 11 bus bar Deep Blue Ver 3.0 solar cell adopts a new technology to improve the efficiency of the modules, offering a better aesthetic appearance, which is perfect for installation on roofs.
Please Note Cables and Brackets Are Not Included And Have To Be Purchased Separately
Highlights
JA Solar Branded JAM72S30 550W/MR Mono Crystalline Half Cell Solar Panel
Leading Manufacturers In The World Photovoltaic Industry
11-Busbar Half-Cut PERC Cell Design Deep Blue Ver 3.0 Technology
Number of Cells 144 (624)
Peak Power Watts 550W
Maximum System Voltage 1500V DC (IEC)
Anodized Aluminium Alloy Frame
Module Efficiency: 21.3%
Junction Box: IP68 and 3 Bypass Diodes
Open Circuit Voltage(Voc) [V]: 49.90V
Connector: MC4
Lifespan Up To 25 Years
Dimension 2279 X 1134 X 35mm
Weight 29.9kg
JA Solar Branded JAM72S30 550W/MR Mono Crystalline Half Cell Solar Panel
Leading Manufacturers In The World Photovoltaic Industry
11-Busbar Half-Cut PERC Cell Design Deep Blue Ver 3.0 Technology
Number of Cells 144 (624)
Peak Power Watts 550W
Maximum System Voltage 1500V DC (IEC)
Anodized Aluminium Alloy Frame
Module Efficiency: 21.3%
Junction Box: IP68 and 3 Bypass Diodes
Open Circuit Voltage(Voc) [V]: 49.90V
Connector: MC4
Lifespan Up To 25 Years
Dimension 2279 X 1134 X 35mm
Weight 29.9kg
Specifications
Stock Code SOLJAM550WMR
Description Solarix JA 550W Mono Crystalline Half Cell Solar Panel
Product Type Half Cell Mono Crystalline Deep Blue Ver 3.0 Technology
Design 11 Busbar Half-Cut Cell Orientation 144(6X24)
Peak Power Watts 550 Watts
Open Circuit Voltage (Voc/V) 49.90V
Short Circuit Current (Isc/A) 14.00Amp
Voltage at Maximum Power (Vmp/V) 41.96V
Current at Maximum Power (Imp/A) 13.11Amp
Module Efficiency (%) 21.3%,
Anodized Aluminium Alloy Frame
Dimension 2279x1134x35mm
Weight 29.9kg
Stock Code SOLJAM550WMR
Description Solarix JA 550W Mono Crystalline Half Cell Solar Panel
Product Type Half Cell Mono Crystalline Deep Blue Ver 3.0 Technology
Design 11 Busbar Half-Cut Cell Orientation 144(6X24)
Peak Power Watts 550 Watts
Open Circuit Voltage (Voc/V) 49.90V
Short Circuit Current (Isc/A) 14.00Amp
Voltage at Maximum Power (Vmp/V) 41.96V
Current at Maximum Power (Imp/A) 13.11Amp
Module Efficiency (%) 21.3%,
Anodized Aluminium Alloy Frame
Dimension 2279x1134x35mm
Weight 29.9kg
