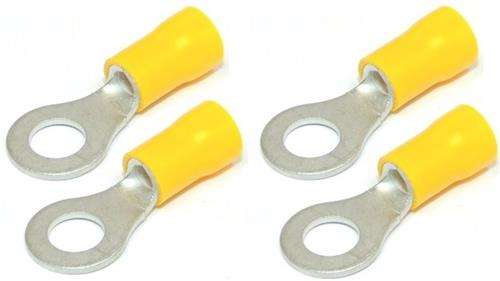

Solarix M6 Insulated Ring Solar PV Terminal

Solarix M6 Insulated Ring Solar PV Terminal

New 19 available
R167.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
ztec361
98.56 % Positive ratings
Buyer protection
How you're covered
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
SOLLR40064PCK
Bob Shop ID
642818187
Solarix M6 Insulated Ring Solar PV Terminal Connector Pack of 4-M6 Stud Size, 4mm² to 6mm² Solar PV Cable, Also Known As A Ring Connector Or Cable Lug, Yellow Sleeve, Sold As Pack Of 4, Retail Box , No warranty

Product Overview
The Solarix M6 Insulated Ring Solar PV Terminal Connector also known as a ring connector or cable lugs. Ring crimp terminals are used for connecting an electrical cable or Solar PV wire to a stud or a post on an electrical component such as a battery terminal. This ring terminal is made from highly conductive tin plated for maximum electrical conductivity and corrosion resistance. A yellow colour coded vinyl insulation provides protection to the terminal Once correctly crimped onto a wire or cable this ring terminal will provide a secure and reliable connection. Sold As Pack Of 4


Highlights
 Solarix M6 Insulated Ring Solar PV Terminal Connector
 M6 Stud Size
 Used on 4mm² to 6mm² Solar PV Cables
 Inner Ring Diameter 6.35mm
 Outer Ring Diameter 10mm
 Also Known As A Ring Connector Or Cable Lug
 Yellow Sleeve
 Sold As Pack Of 4


Specifications
 Stock code SOLLR40064PCK
 Solarix M6 Insulated Ring Solar PV Terminal Connector Pack of 4
 Insulation Material Yellow PVC
 Inner Ring Diameter 6.35mm
 Outer Ring Diameter 10mm
 Minimum Wire Size mm² 2.5mm²
 Maximum Wire Size mm² 6mm²
 Minimum Wire Size AWG  12AWG
 Maximum Wire Size AWG 10AWG
 Stud Size M6
 Sleeve Colour Yellow
 Contact Plating Tin
 Contact Material Copper
 Thickness 1mm
 Overall Length 30mm
