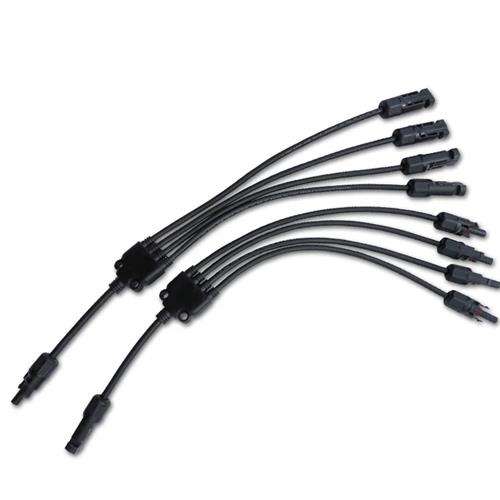

Solarix MC4 Y Connector 4 Way To 1 Way Solar Panel Combiner Cable Set - 4 mm Diameter Contact Pin, Used For Connecting Solar Panels In Series Or Parallel, Quick And Reliable Connection Of The Solar Cables To The Photovoltaic System, Colour Black, No Warranty
Product Overview
The Solarix MC4 Y Branch Connector 4 Way To 1 Way Combiner Cable Set is used for connecting solar panels in series or parallel and ideal for connecting solar panels together. It allows you to connect 4 independent input/output connectors into a single MC4 connector on the opposite side of your solar panel. This allows you a simple way to connect or expand multiple solar panels together without running cables, making installation easier and faster than ever before with the easy to Install Snap-in lock system. Allow for a clean energy transfer between output cables from the solar array and connections to combiner boxes or inverters. This MC4 Y 4-1 Branch Connector is compatible with the MC4 connector, for connecting your solar panels to a charge controller or inverter.
Highlights
MC4 Y Branch Connector 4 Way To 1 Way Combiner Cable Set
Easy To Install Snap-in lock Connector System
4-In 1-Out Connector Cable
Tested Voltage Up 1000V DC
4 mm Diameter Contact Pin
Used For Connecting Solar Panels In Series Or Parallel
Connect 4 Independent Input / Output Connectors Into A Single MC4 Connector
Degree Of Protection: IP2X/IP67
Specifications
Stock Code SOLPAMY041
Description Solarix MC4 Y Connector 4 Way To 1 Way Combiner Cable Set
Product Type MC4 4-Way PV Solar Panel Y-Combiner Cable Pair
Overvoltage Type/Pollution Degree:6000V(50Hz, 1min).
Contact Resistance Of Plug Connector: CAT III /2.
Contact Resistance Of Plug Connector:0.5m.
Contact Material: Copper, Tin-plated.
Protection: IP2X/IP67
Snap-In Connector Locks System
Voltage Rating 1000VDC
Colour Black
