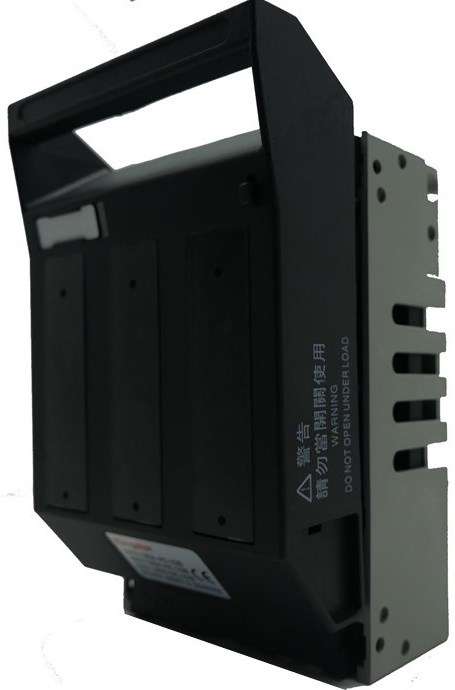

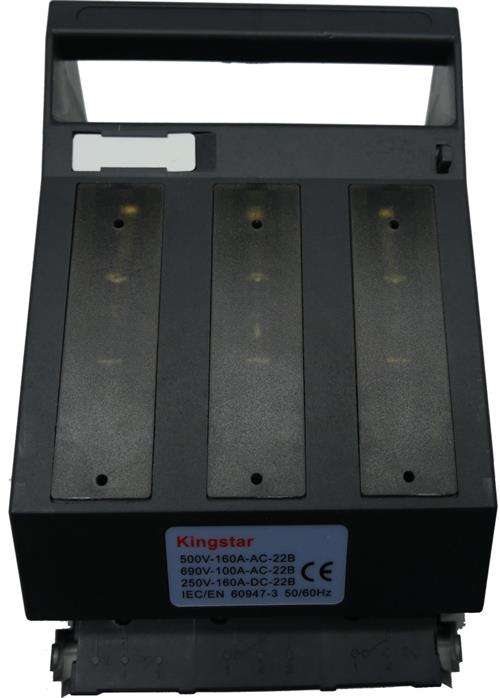

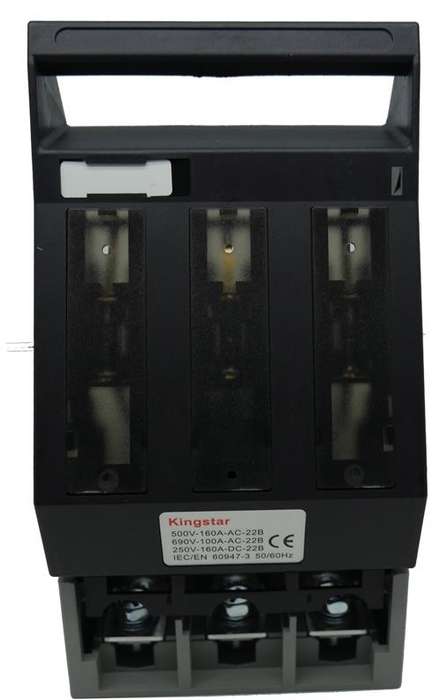

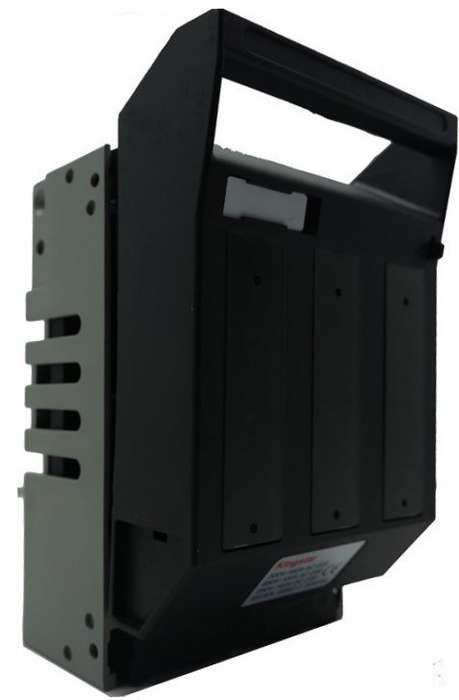

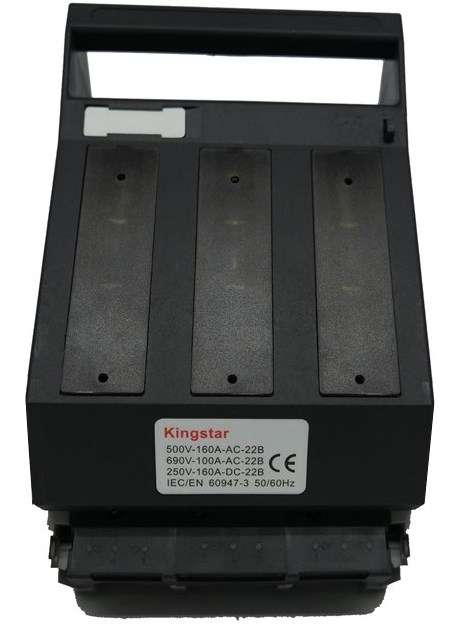

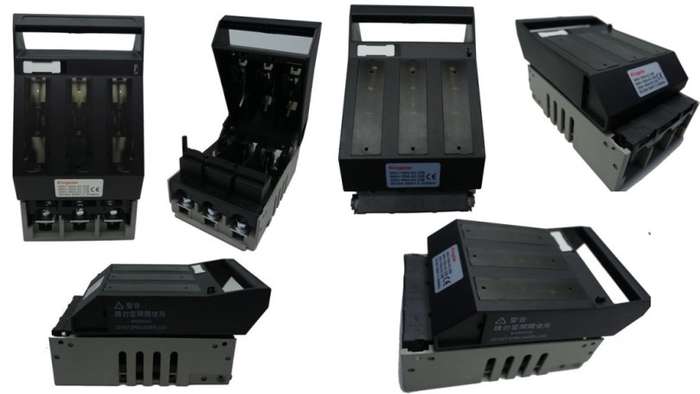

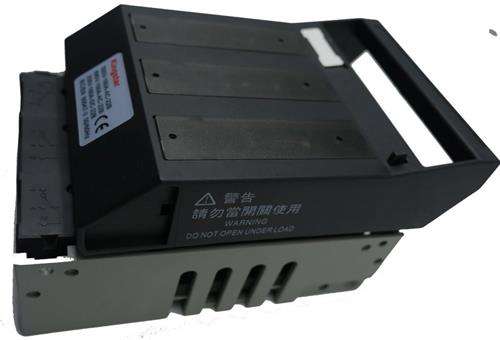

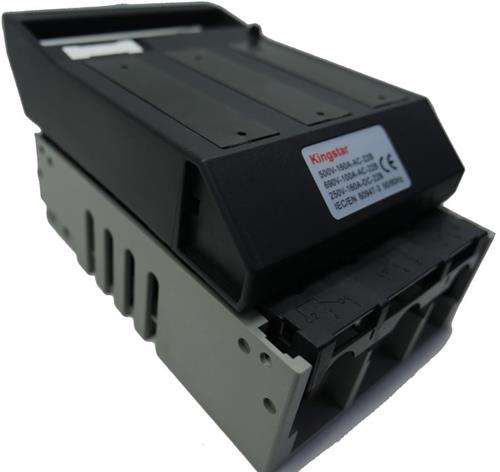

Solarix NT00 Horizontal Mount 3 Pole 160A DC Fuse Holder

Solarix NT00 Horizontal Mount 3 Pole 160A DC Fuse Holder Box Sold as A Single Unit- Battery Fuse Disconnect 3 Pole NH00 (rated 160A) Voltage Rating AC 690V, DC 250V. AC-22B and IEC/EN 60 947-3 Compliant, Ideal For Battery Disconnect With 3KVA Up To 5.5KVA Inverters, Fuse Is Not Included Must Be Purchased Separately, Poly Bag, 6 Months Warranty

Product Overview
The Solarix NT00 Horizontal Mount 3 Pole 160A DC Fuse Holder Box is sold as a single unit is Ideal for battery fuse disconnect with 3KVA Up To 5.5KVA Inverters. DC Fuse Holder For NH00 160A Fuses, AC-22B and IEC/EN 60 947-3 Compliant. Fuses Are  Not Included Must Be Purchased Separately.

Highlights
 Solarix NT00 Horizontal Mount 3 Pole 160A DC Fuse Holder Box
 DC Fuse Holder For NH00 160A Fuses
 Voltage Rating AC 690V, DC 250V
 AC-22B and IEC/EN 60 947-3 Compliant
 Sold As Single Unit
 Fuses are Not Included Must Be Purchased Separately.



Specifications
 Stock Code SOLNT00160A3POLE
 Description Solarix NT00 Horizontal Mount 3 Pole 160A DC Fuse Holder Box
 Product type  DC Fuse Holder For NH00 160A Fuses
 Rated Operational Voltage AC 690V
 Conventional Free Air Thermal Current With Fuse-Links 160A
 Rated Operational DC Current 160A
 Utilization category AC22B
 IEC 60 947-3 And GB 14048.3 Compliant
 Fuses are Not Included Must Be Purchased Separately
 NH Fuse-Link Size 00
 Breaking capacity of fuse link 100kA
 Weight 390g
