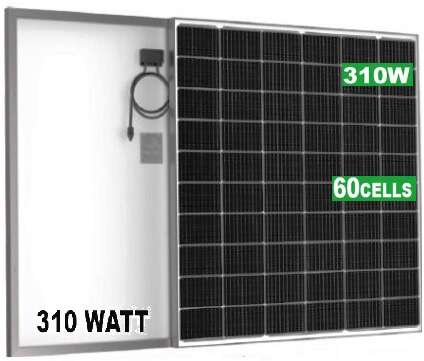

Solarix Osia 310W Mono Crystalline Multiple Main Grid Design Solar Panel- Solar Cell Size 182mm, Single 3.2mmTempered Glass +EVA +PET, Maximum Rated Power(Pmax):310W, Maximum Power STC Voltage(Vmp): 34VDC, Maximum Power Current(Imp): 9.11A , Junction Box IP67,3 Bypass Diodes, MC4 Connector, Module Efficiency: 20.50%, Open Circuit Voltage (Voc)40.8V , Number of Cells 60 (6×10), Anodized Aluminium Alloy Frame, Designed To Work Perfectly With Inverters Up To 3.5KVA , Lifespan Up To 25 Years, Retail Box, 60 Months Limited Warranty
Product Overview
The Solarix Osia 310W Mono Crystalline Multiple Main Grid Design Solar Panel with 60 cells (6×10) is designed to work perfectly with entry level Inverters units up to 3.5kva and Ideal for both isolated photovoltaic solar energy installations and those connected to the electricity grid. These panels stand out for their incredible quality/price ratio. These Mono Crystalline Solar Panels can be combined with state-of-the-art lithium batteries, as well as traditional lead-acid and GEL/AGM batteries with their corresponding charge regulator to deliver superior module efficiency.
Please Note Cables and Brackets Are Not Included And Have To Be Purchased Separately
Highlights
• Osia 310W Mono Crystalline Multiple Main Grid Design Solar Panel
• Model Series QN-182M31034
• Designed To Work Perfectly With Inverters Up To 3.5KVA
• Based On 182mm Wafer
• Number of Cells 60 (6×10)
• STC Peak Power Watts 310W
• STC Voltage at Pmax (Vmp) 34V
• STC Current at Pmax(Imp) 9.11A
• STC Open Circuit Voltage(Voc) 40.8V
• STC Short Circuit Current(Isc) 9.65A
• Single 3.2mm Coated Tempered Glass +EVA +PET
• Anodized Aluminium Alloy Frame
• Module Efficiency: 20.5% Max
• Junction Box: IP67 and 3 Bypass Diodes
• Connector: MC4
• Lifespan Up To 25 Years
Download The Datasheet Here
Specifications
• Stock Code SOLQN182M31034
• Solarix Osia 310W Mono Crystalline Multiple Main Grid Design Solar Panel
• STC Peak Power Watts 310W
• STC Voltage at Pmax (Vmp) 34V
• STC Current at Pmax(Imp) 9.11A
• STC Light intensity 1000W/㎡
• Solar Cell (Type/Size) Mono(182mm)
• Solar Cells Number 60Pcs (6*10)
• Junction Box IP67/ 3 Bypass diode
• Cable 4mm²/900mm
• Connector MC4
• Mechanical Load Front 5400PA/back 2400PA
• Dimension 1290x 1134x 35mm
• Weight 14.30KG/Pcs
• 60 Months Limited Warranty
