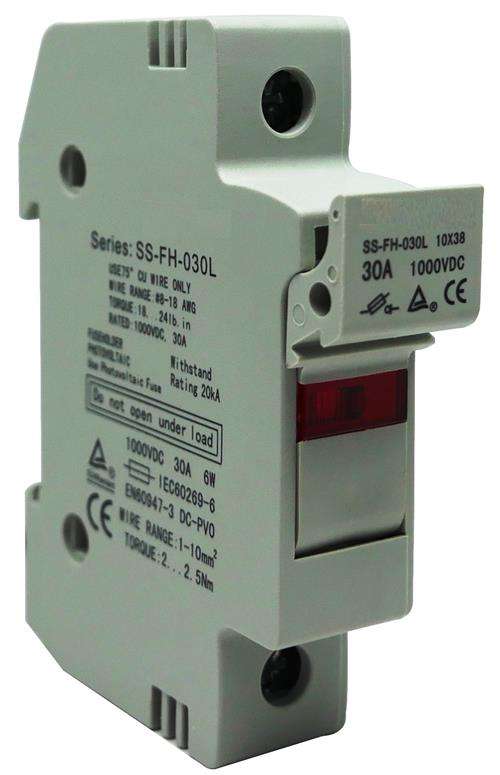

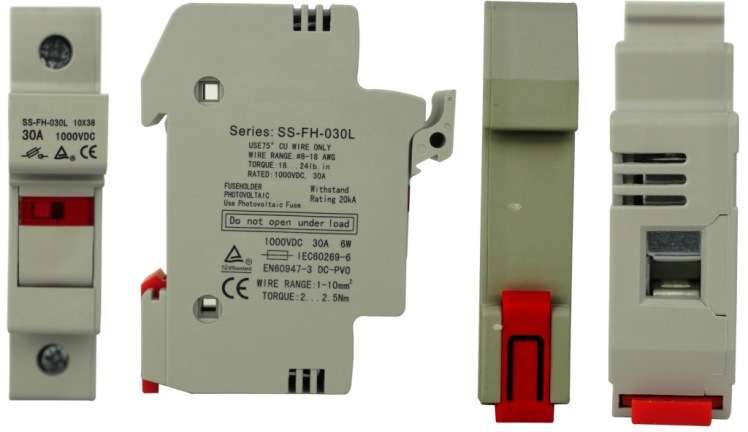

Solarix Rail Mount 1 Pole Solar PV (Photovoltaic) DC Fuse Holder With LED Indicator Light -Can hold up to 30A fuse, Rated 1000VDC, Wire Range 1mm2 To 10mm2, Withstand Rating 20kA, Colour White, 10x38mm Fuse Links to Be Purchased Separately, Colour Beige, Retail Box, No Warranty
Product Overview
The Solarix Rail Mount 1 Pole Solar Photovoltaic (PV) DC Fuse Holder With LED Indicator Light is specifically designed to provide fast-acting protection under overload current conditions associated with Photovoltaic (PV) systems. . The recommended fuse link size is 10x38mm, which can safely protect 1000VDC Photovoltaic (PV) systems in the event of a circuit overload within the application. This DIN Rail Mount Fuse Holder is made from flame-retardant material according to the IEC 60269-2 VO standard, and the dead-front design makes it possible to match the Busbar mounting in the Photovoltaic (PV) system. Led Indicator Light to show Fuse Link Replacement.10x38mm Fuse Links to Be Purchased Separately.
Technical Advice to Installers.According To Solar Industry Standards For Protection, Two Fuses Are Required, One For Positive And One For The Negative Pole.
To calculate the fuse rating multiply the Amps of the PV string by x1.2.
Example PV String Amps 11.5A x 1.2 = 13.8 Amps. Nearest fuse 15A
PV String Fuses for solar panels gPV - 1000VDC
A Range Of Fuses In A 10x38mm Package Specifically Designed For Protection And Isolation Of Photovoltaic Strings. The DC fuses are capable of interrupting low overcurrent's associated with faulted PV (reverse current, multi-array fault) string arrays.
Specifications
Stock Code SOLSSFH030L
Description Solarix 1P Solar Photovoltaic (PV) DC Fuse Holder With LED Indicator Light
Maximum Voltage: 1000V DC
Maximum Current: 30A
Pole 1P
Wire Range: 1mm2 - 10mm2
Minimum Interrupting Rating 1.3x In
Max Power Dissipation 6W
Time Constant Under 1ms
DIN Rail Mount 35mm support
Breaking Capacity: 20KA
Flame-Retardant Material According To The IEC 60269-2 VO Standard
Led Indicator Light to show Fuse Link Replacement
Operating State/Fault Indication Indicator Light OFF/Indicator Light ON
10x38mm Fuse Links to Be Purchased Separately Not included
Colour Beige
