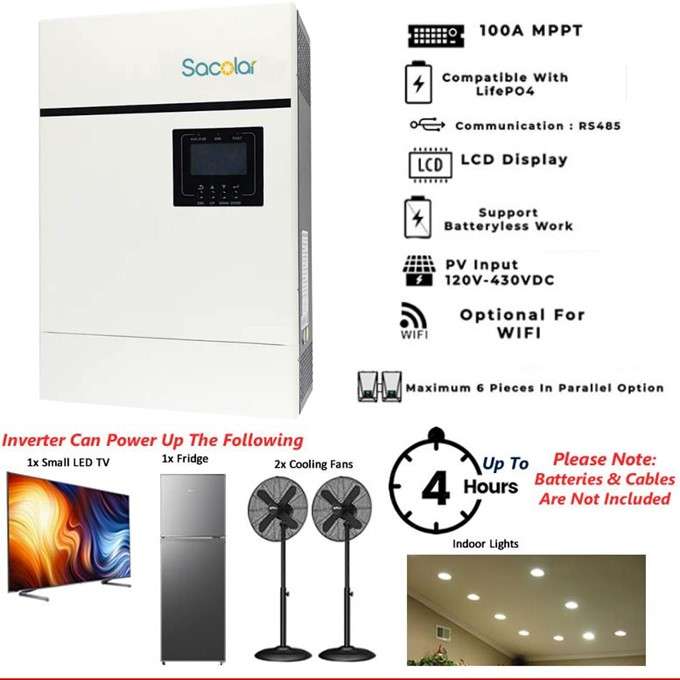

Solarix Sacolar 5KVA 48VDC 100A Axpert Type Parallel Inverter- Single phase Pure Sine Wave, Max Watt Output 5.0kW, Hybrid Off-Grid Solar Inverter, High Voltage100A MPPT Solar Charge Controller- Design To Provide Reliable Power, Up to 6 units 30kVA Connected In Parallel, CAN And RS485 Port For BMS Communication, Retail Box , 1 Year Warranty
Product Overview
The Solarix Sacolar 5KVA 48VDC 100A Axpert Type Parallel Single Phase High Voltage Inverter is designed to provide a reliable backup power solution for homes as well as medium to large businesses and office environment installations. Equipped with a High Voltage 100A MPPT solar charge controller to maximize and regulate DC power from the solar array for charging the battery bank. The pure sine wave output enables easy start-ups for motor-type loads such as refrigerators, motors, pumps. compressors and laser printers as well as electronic loads like TVs. Computers. power tool and battery chargers. Can be connected to up to 6 units totalling 30kVA in parallel, CAN And RS485 Port For BMS Communication.
Features
5.0KVA Pure Sine Wave 48VDC Off-Grid Solar Inverter
Continuous: 5kW / 5 kVA Max Watt Output
High Voltage Built-In 100A MPPT Solar Charge Controller
Voltage: 230V AC and Battery Voltage: 48VDC
PV Maximum input current: 20A
MPPT Voltage range: 120 to 430 VDC
Can Be Set: Solar First, Grid First, Solar & Grid, Solar Only
Solar Only: 100A (Maximum)
Grid Only: Up To 80A
Combination Solar and Grid: Up To 140A
Peak Efficiency: 93%
Overload And Short Circuit Protection
Programmable Supply Priority For PV ,Battery Or Grid
CAN & RS485 Port For BMS Communication
Communication with LiFePO4 Batteries Via RS485 Port.
Specifications
Stock Code IN5KPA2YHV
Description Solarix Sacolar 5KVA 48VDC 100A Parallel Inverter
Product Type Axpert Type Off-Grid Solar Parallel Inverter Single phase Pure Sine Wave
Rated power 5KW (5000W)
MPPT ranges 120V-430VDC
Voltage: 230V AC and Battery Voltage: 48VDC
Pure Sine Wave AC Output

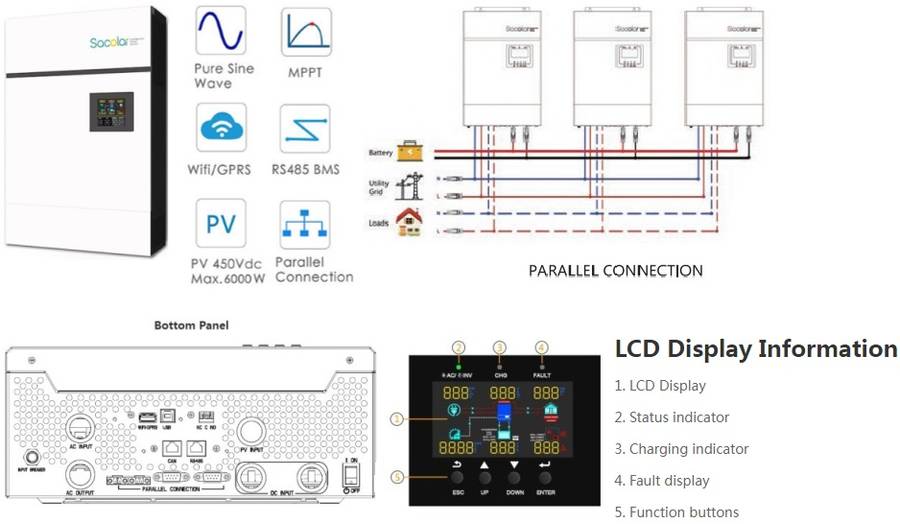

Parallel Operation Up To 6 Units
With Can/Rs485 For BMS Communication
Power Balance Of Solar And Utility Grid
Can Work With Or Without Battery
Dimension 470x320x13Smm
Net Weight 12Kg
