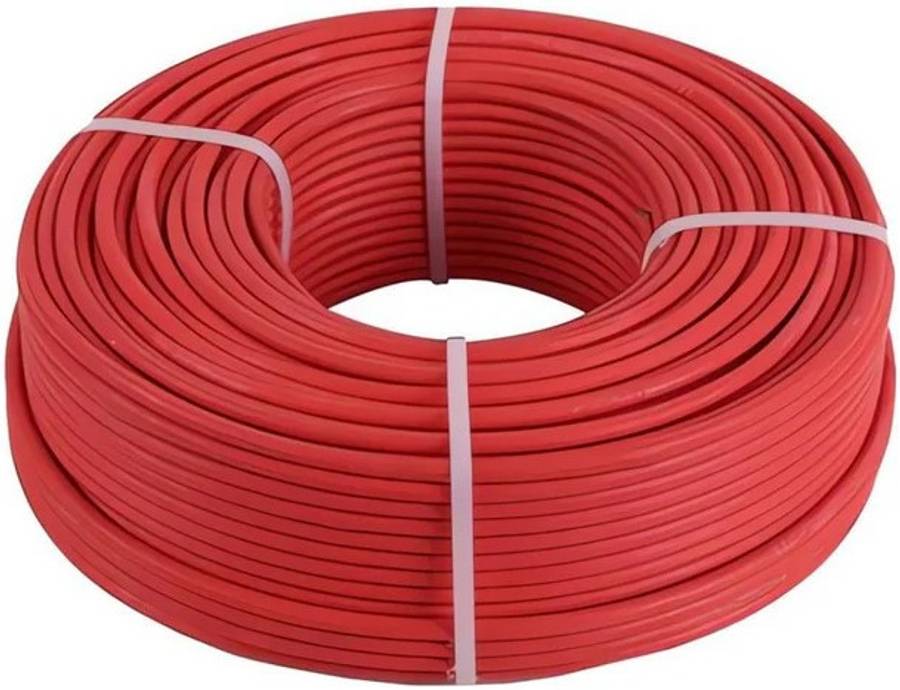

Solarix Single Core Solar Photovoltaic PV Red Cable

Solarix Solar Photovoltaic PV Cable - 6 mm2 Cross Sectional Area Size, Flexible Aluminium Conductor, 70A Rated Current, Up to 1800VDC Max Permitted Voltage, Used as Photovoltaic Cable Between Solar Modules and AC/DC Inverters, Halogen-Free and Flame-Retardant Safety Jacket, -40 deg C to +90 deg C Operating and Storage Temperature, Red Color, No Warranty.

Product Overview

Solarix 6mm2 single-core PV cable - flexible aluminium conductor designed for rooftop and ground-mounted photovoltaic systems, rated up to 1800 VDC and tested at 6.5 kV AC. Halogen-free, flame-retardant and high-temperature resistant for safe, long-term use (storage/operating -40 deg C to +90 deg C; min install -5 deg C). 70 A rated current, 0.6/1.0 kV AC (0.8/1.5 kV DC) working voltage, red sheath, 4x diameter bending radius for easy routing between modules and inverters.

Specifications

-Product Code: SOLSIRPV6MMREDPM
-Description: Solarix Single Core Solar Photovoltaic PV Cable
-Inner Conductor: Flexible Aluminium Conductor
-Photovoltaic Power Cables, Halogen Free, Flame Retardant and High Temperature Resistance
-Used As Photovoltaic Cable Between Solar Modules And AC/DC Inverters
-Photovoltaic System With A Rated Value U0 = 1.5k VDC
-Maximum Permitted Voltage U0 =1800VDC
-Test Voltage: 6.5 kV AC 50 Hz
-Cross Sectional Area: 6mm2
-Rated Current: 70 A
-Working Voltage: 0.6/1.0kV AC (0.8/1.5kV DC)
-Max Voltage: 1.2kV AC (1.8kV DC)
-Bending Radius: 4 x Diameter Of Cable
-Storage/Operating Temperature: -40 deg C to +90 deg C*
-Minimum Installation Temperature: -5 deg C
-Colour: Red
