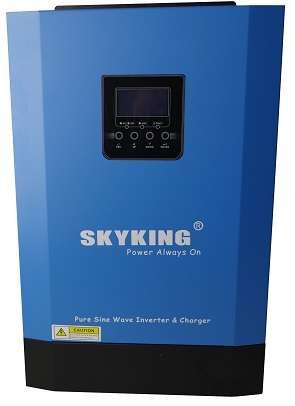

Solarix Skyking 7KVA 48V Hybrid Inverter - 7KW 48V SkyKing Hybrid Off-Grid Inverter, is integrated with a 80A MPPT solar charge controller, Retail Box , No warranty
Product Overview
This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Features
Pure sine wave inverter
Configurable input voltage range for home appliances and personal computers via LCD setting
Configurable battery charging current based on applications via LCD setting Configurable AC/Solar Charger priority via LCD setting
Compatible to mains voltage or generator power
Auto restart while AC is recovering
Overload/ Over temperature/ short circuit protection Smart battery charger design for optimized battery performance
Cold start function
Specifications
Stock Code: SKV7KVA
Description: Solarix Skyking 7KVA 48V Hybrid Inverter
Colour: Blue & Black
Operating temperature range: 0-55°C
Inverter Mode
Rated Power: 7000VA(5500W)
DC INPUT: 48VDC, 127A
AC OutputL: 230VAC, 550/60Hz, 23,90A, 1
AC Input: 230VAC, 50/60Hz, 38.5A, 1
DC Output: 54VDC
Max.80A, Default 30A
AC Output: 230VAC, 50/60Hz, 23.9A, 1
Charger Solar Mode:
Rated Power: 6000W
MAx Charger: 110A
Nominal Operation Voltage: 240VDC
Max Solar Voltage (VOC): 500VDC
MPPT Voltage range: 120 - 450VDC
Ingress Protection: IP21
Protective class: class 1
