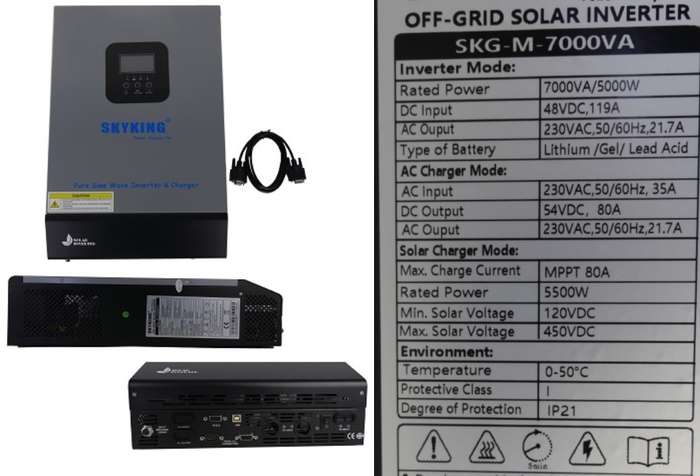

Solarix Skyking 7KVA 48VDC Axpert Type Inverter

Product Overview
The Solarix Skyking Pure Sine Wave 7KVA 48V Off-Grid Solar Inverter with 5000 Watt rated power and a 80A MPPT solar charge controller is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Features
Pure Sine Wave 7000VA Inverter
5000w Rated Power Max Watt Output
Built In 80A Mppt Solar Charge Controller
Configurable Input Voltage Range For Home Appliances And Personal Computers Via LCD Setting
Configurable Battery Charging Current Based On Applications Via LCD Setting
Configurable AC/Solar Charger Priority Via LCD Setting
Compatible To Mains Voltage Or Generator Power
Auto Restart While AC Is Recovering
Overload/ Over Temperature/ Short Circuit Protection
Smart Battery Charger Design For Optimized Battery Performance
Cold Start Function
Supports Single And 3 Phase,
Parallel Connection Function Up To 12 Units





Specifications
Stock Code SKGM7000VA
Descriptions Solarix Skyking 7KVA 48VDC Axpert Type Off-Grid Solar Pure Sine Wave Inverter
Product Type Off-Grid Solar Inverter
Built-In 80A MPPT Solar Charge Controller
AC Input: 230VAC,50/60Hz,35A
AC Output: 230VAC,50/60Hz 21.7 A
DC Input 48VDC 119A
DC Output 54VDC 80A
Output Voltage Waveform Pure Sine Wave

Inverter Mode
Rated Power: 7000VA/5000W
DC Input: 48VDC, 119A
AC Output: 230VAC 50/60Hz,21.7A
Max. Parallel Unit: Up To 12 Units
Operating Temperature Range: 0-55C
Peak Efficiency 93%

Charger Solar Mode:
Max Input Rated Power: 5500W
Max Input Current 20A
Max Solar Charger: 80A
Min Solar Voltage (VOC): 120V
Max Solar Voltage (VOC): 450VDC
MPPT Voltage range: 120- 450VDC
Ingress Protection: IP21
