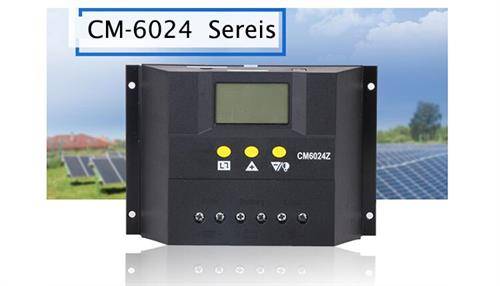

Solarix Solar Charger Controller 12/24V 60A -solar controller charge for home use, 60A 12V/24V ,LCD display solar panel ,Product size(mm) 190*160*62mm, Retail Box , No warranty
This controller is a kind of intelligent, multi-purpose solar charge and discharge controller. These serial products adopt customized LCD display screen, which makes the operation on the interface rather convenient. All the controlling parameters can be reset flexibly to satisfy your different needs.
This controller has the following features:
Visual LCD graphic symbol
Brief key operation
Automatic identification system voltage level
Intelligent PWM charge mode
Automatic temperature compensation
Adjustable charge-discharge control parameters
Settable operating modes of loads
Accumulated charge and discharge ampere hours
Remote monitoring function (custom)
Battery reverse-discharge protection
Battery low voltage disconnection (LVD)
Battery reverses connection protection
Overload & short circuit protection
With DC 12V and USB 5V output (custom)
General
Material: PVC
Quantity: 1 piece

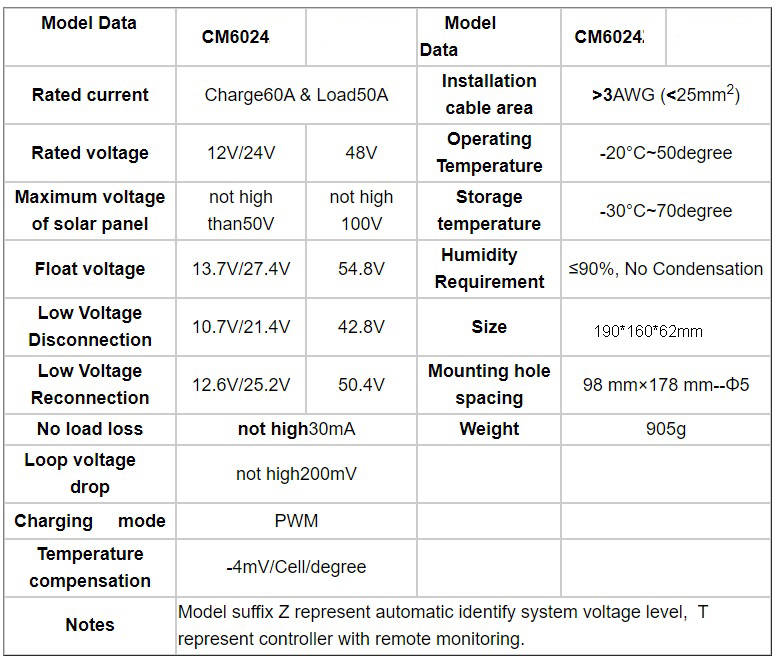

Specification
Stock Code: CM6024
Power: 2800W
Description: Solarix Solar Charger Controller 12/24V 60A
Working Voltage: 48V
Working Current: 60A
Certification: CE
Dimensions: 8.27 in x 5.91 in x 3.54 in (21 cm x 15 cm x 9 cm)
Weight: 21.87 oz (620 g)
Packing List
1 x Solar charge controller 1 x User manual
